Programmable relay
There is one general-purpose, potential free (dry) relay contact which can be configured for various functions.
Use the Relay menu in VictronConnect to configure it.
The relay contacts are rated for 4A up to 35VDC and 1A at 70VDC.
Warning
Do not use the relay contact for any AC (230V) circuits.

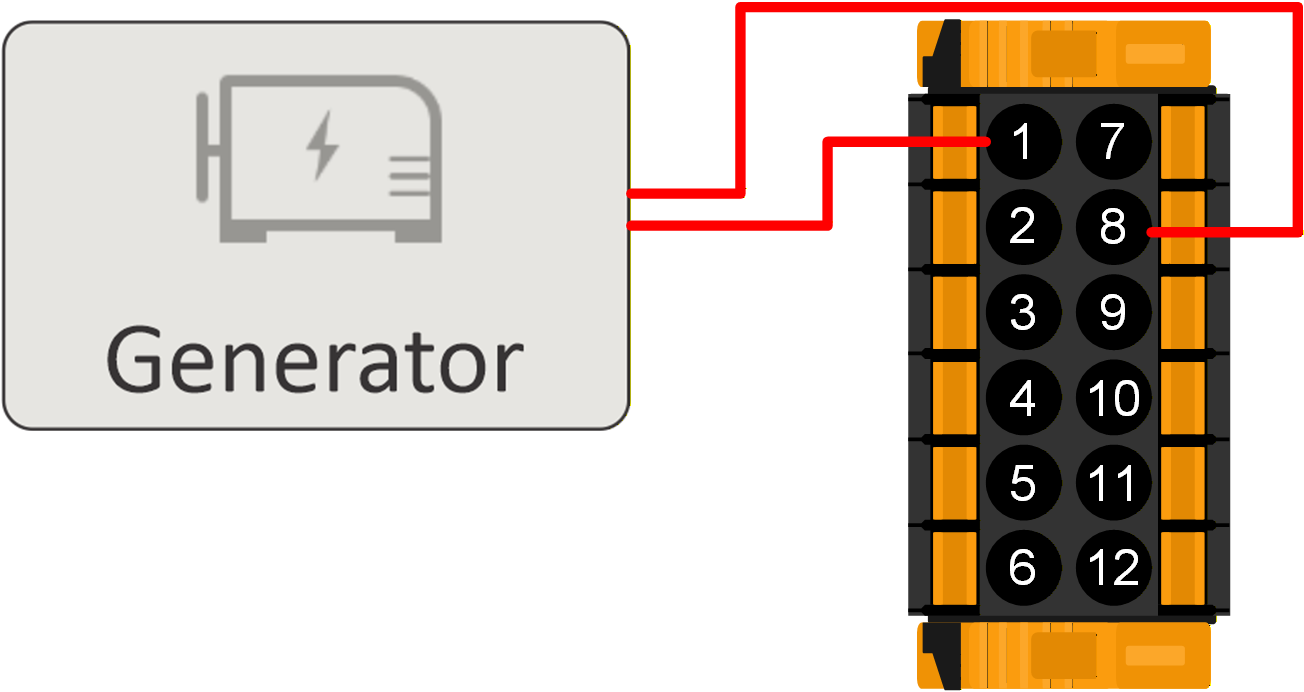

In this example, the normally open relay contact is configured for starting and stopping a generator. |  |
