Connection Overview

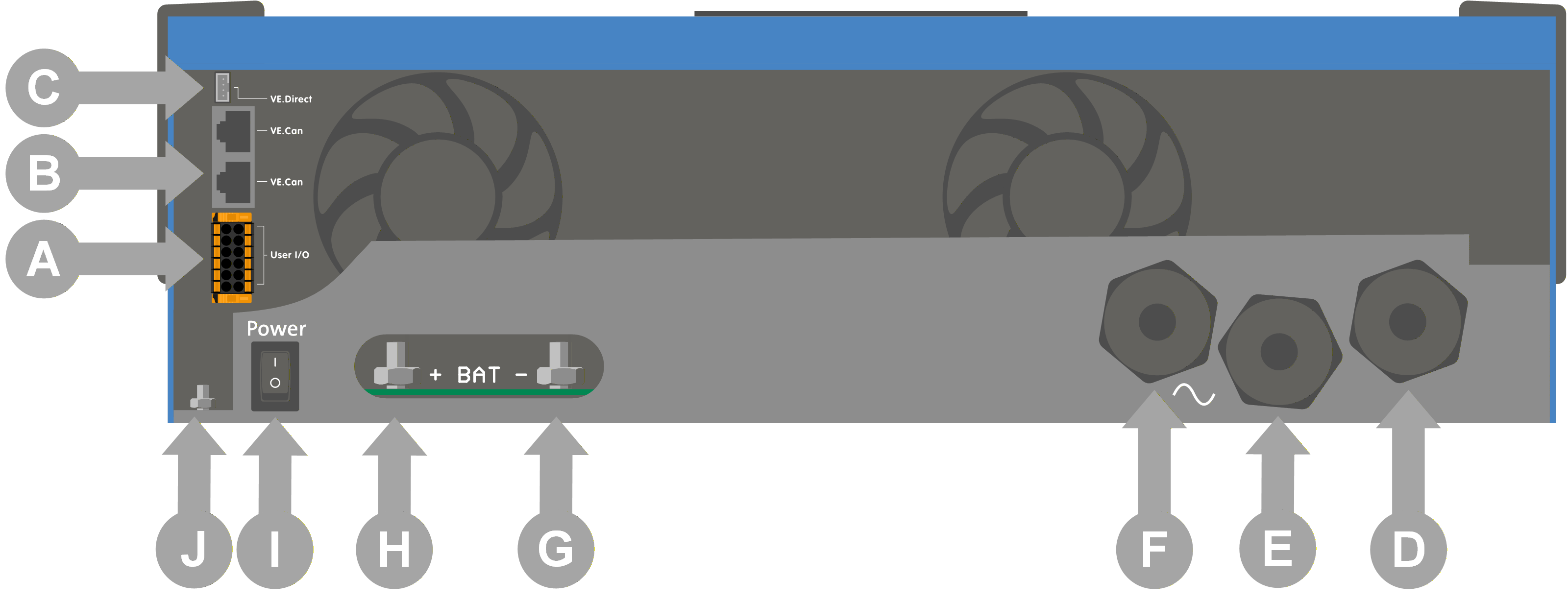

The illustration shows the front panel connectors with a description for each one in the table below.
Table 1. Description of the front panel connectors
Letter | Name | Description |
|---|---|---|
A | User I/O | Removable user I/O connector. See here for pinout description |
B | VE.Can | VE.Can Canbus connector pair |
C | VE.Direct | VE.Direct connector |
D | AC In | AC Input |
E | AC Out 2 | AC Output 2 |
F | AC Out 1 | AC Output 1 |
G | Battery - | Battery negative terminal |
H | Battery + | Battery positive terminal |
I | Power Switch | On / Off switch |
J | Chassis Ground | Chassis ground stud |
