Multi RS19 Solar

Solar

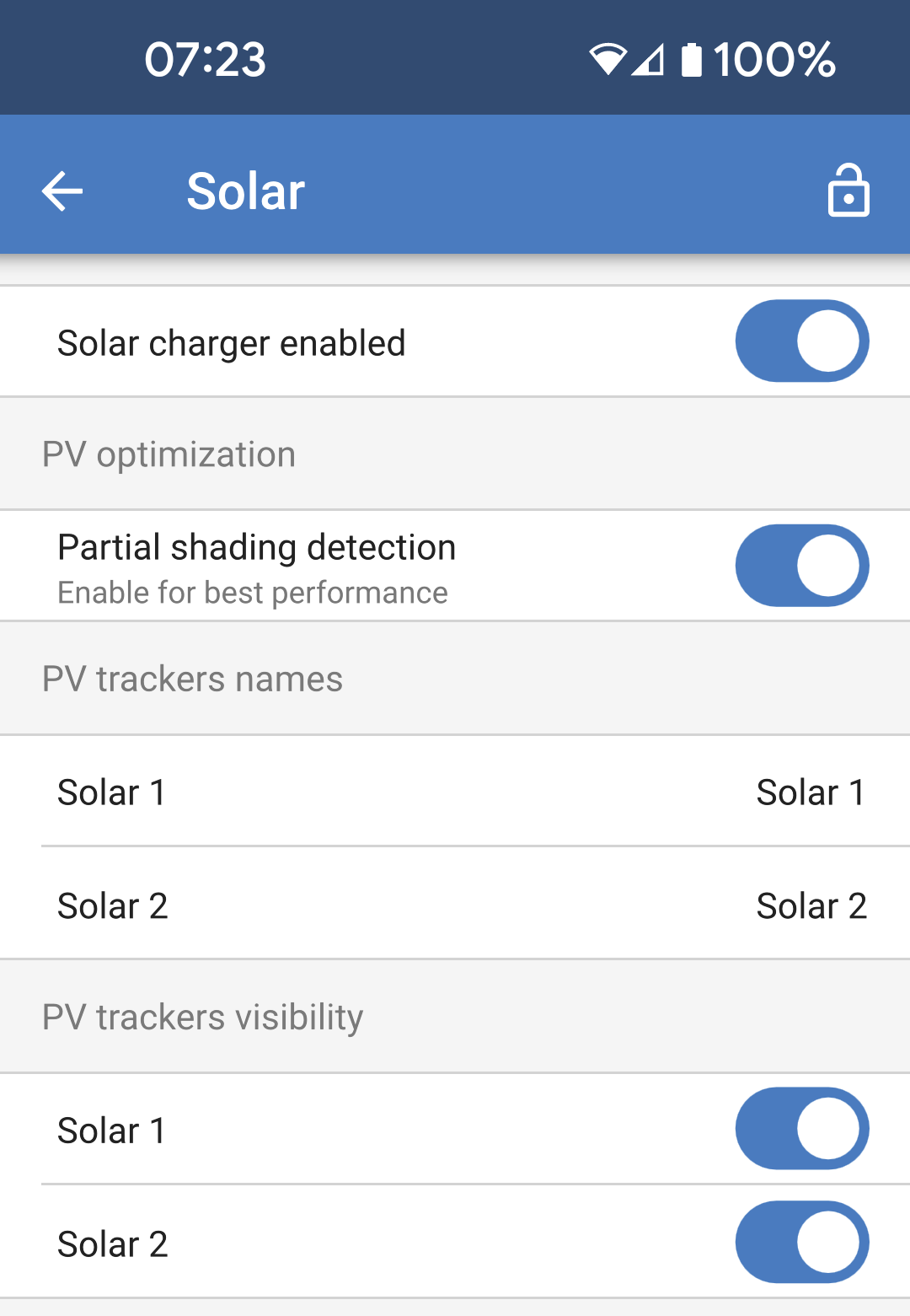

This page allows setting the Partial shading detection algorithm and giving each tracker a custom name.

  • Solar charger enabled: You can turn the solar chargers on or off. Both MPPT trackers are affected by this setting.

PV Optimization:

  • Partial shading detection: The default setting is enabled. It is recommended to leave this setting enabled. Only in some specific solar installations may it need to be disabled.

PV trackers names:

  • Each tracker can be given a custom name. The column on the left will always display the tracker number and the column on the right will show the custom name if given.

    The custom name will also be shown on the LCD on the front of the Multi RS19 Solar.

    Tap on the row to set a custom name.

PV trackers visibility:

  • Any unused trackers can be hidden from showing on the VictronConnect overview page and from VRM.

    Trackers will be visible if the switch is toggled on.
