The Victron Van install

Videos and schematics of the power systems installation

In case you missed these great videos and wiring schematics, we thought they deserved a blog post in their own right.

Victron Van – Video build episodes

Outline Diagrams & Wiring Schematics for the Victron Van

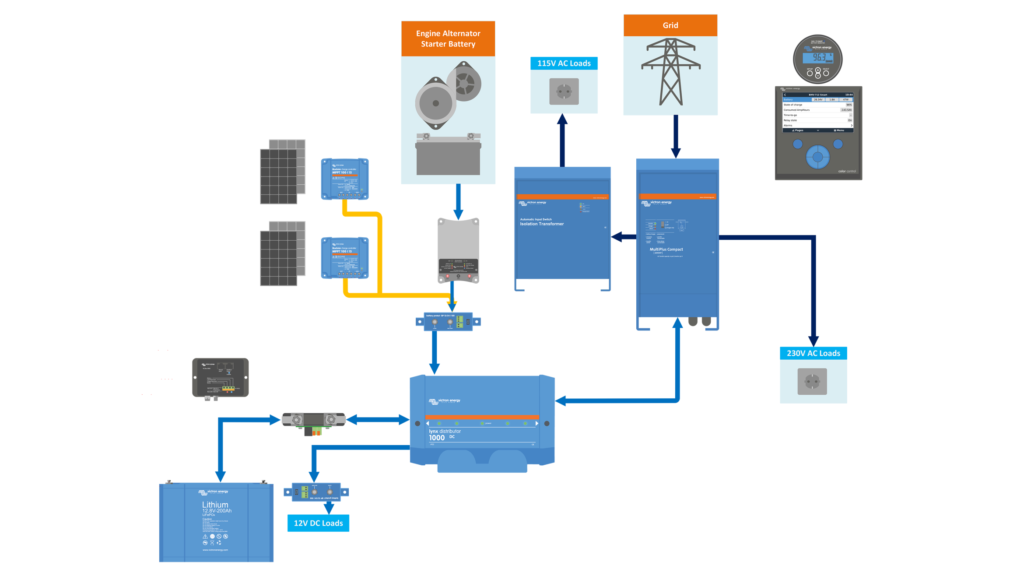

Outline layout diagram – Click to enlarge image or see the Full Wiring Schematic PDF below.

Outline Diagrams of the install

Wiring Schematics of the install

Who needs a mains plug 😉

Total Control with Victron’s CCGX

Comments are welcomed on this install at the Victron Community website.

Conclusion

I think these videos by Jono (our video guy) do a great job of showing what can be achieved in a compact and mobile automotive application. Inspiration and system design for the VW Victron Van goes to Victron Energy Sales Manager, Lucian Popescu.

For more Victron videos check out the video section in Victron Professional or go direct to the Victron YouTube Channel.
