Dethleffs electric drive motorhome with Victron onboard

Electric drive cars, lorries, motorcycles, aeroplanes, bicycles and boats – and now motorhomes – the world of transportation and leisure is changing with Victron Energy being a natural part of this revolution. Exhibiting at Caravan Salon Düsseldorf 2017 until Sunday September 3rd is the new concept motorhome by Dethleffs (called the e.home) which utilises Victron Energy products inside for the e.home domestic services.

Besides being able to see the Victron products used in the Dethleffs e.home on their stand, Victron also have their own stand (Hall 13, Stand D82), as does Victron dealer TransWatt (Hall 13, Stand E64). Tickets for the show can be requested by dropping a mail to sales@victronenergy.com

Setting up the Victron Energy stand in readiness for the show.

The Dethleffs e.home concept

Dethleffs are the first well-known motorhome manufacturer to present a concept study of a fully-electrically driven motorhome. Their developers are convinced, stating that: “Electric drive for motorhomes will play a great role in the future even if the implementation won’t be as quick as in the car sector”. This is why they are actively facing up to the concept of ‘Electric Mobility’ by creating the e.home study vehicle. For this reason it is important to be a pioneer in this sector, as Dethleffs Managing Director Alexander Leopold explains.

“Dethleffs know this means a lot more then just putting bodywork on an electrically driven chassis. By implementing a fully-electric powertrain there are many challenges and equally opportunities for the entire vehicle. One significant opportunity is to do without any additional type of energy sources for the vehicle. This means that a motorhome with electric drive will also supply all the onboard services with electricity for the living area instead of gas, for example – and that is why solar power production becomes very important. At the same time there are also a number of new technologies which will change the comfort, quality of life, plus the safety of future generations of motorhomes. Through this evolving process, systems will be further developed – and we expect rapid progress over the coming years for our e.home concept.”

Electric powertrain

The e.home is based on the Iveco Daily Electric chassis with a liquid-cooled three-phase AC motor with a power of 80kW, utilising modern FIAMM Sodium Nickel Chloride batteries with a capacity of 3 x 76 Ah at 400 V. These can be recharged up to 1,500 times equating to a mileage of circa 250,000 km. Of particular interest are the special installed ‘Supercaps’. These high-power capacitors allow a faster recharge and delivery of the electrical energy in comparison to the usual batteries – and so increase the performance of the vehicle as well as the lifecycle of the batteries apparently.

Solar power

When operating the vehicle using electricity (for driving and living) the harvesting of solar energy becomes ever more important. For usage in a motorhome that requires high specification photovoltaics. The Dethleffs e.home is equipped with 31 square metres of modern and optimised thin layer solar cells, giving around 3,000 Watts of peak power.

Victron inside

Victron Energy system components for the Dethleffs e.home are shown and detailed below.

Key components are:

  1. Solar charge controllers to harvest all that solar energy.
  2. A combined inverter/charger for onboard AC electricity and the charging of the Lithium domestic power storage batteries.
  3. Required ancillaries which include battery safety protection, system monitoring and the e.home heating power supply.
  4. Not forgetting a DC-DC converter to ensure all those 12V, USB accessories, tablets, smartphones etc., can be supplied and charged!

Products and part numbers

Left to right – Quattro, Lithium batteries with BMS above them, Skylla-TG. (note grills shown are for show display purposes – presumably to keep errant fingers out!)

Color Control GX & BMV-702 Battery Monitor (note grills shown are for show display purposes – presumably to keep errant fingers out!)

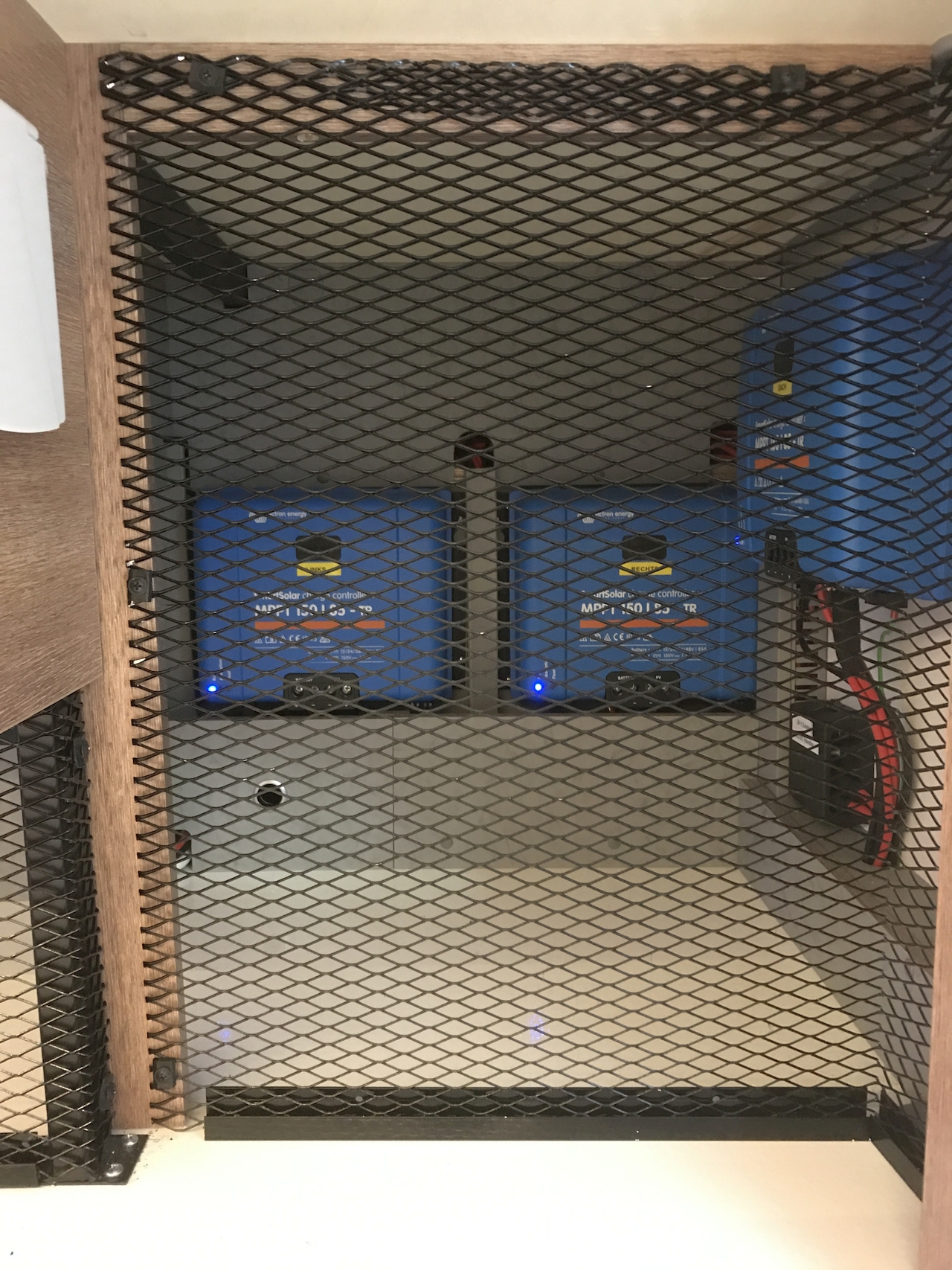

SmartSolar MPPTs with Bluetooth built-in (note grills shown are for show display purposes – presumably to keep errant fingers out!)

Other installed system components are:

Heating, cooking & refrigeration

Heating is often the most energy intensive use of energy in a motorhome. When changing to an electric heating system it was mandatory that the Dethleffs developers find a new, even unconventional solution to generate a pleasant warm feeling with as little energy use as possible.

To achieve this a number of latent heat accumulator plates made of PMC (phase change material) were installed in several places. The heat accumulators absorb energy at temperatures over 26 degrees and deliver it when the temperature goes down in the evening hours. Additionally heating elements are also mounted in the floor, sidewalls and furniture which then heat the interior via infrared warmth sources, but only the objects they reach – not the air. This is efficient yet still creates a cosy warm feeling, although the general room temperature is at 2-3 degrees lower than with traditional heating systems. Infrared warmth though is available without any pre-heating time.

A ceramic stove with three cooking hobs as well as an energy efficient compressor fridge are installed in the e.home.

Comfort and privacy

In looking to the future of motorhomes Dethleffs installed some technologies to increase comfort and the quality of life. Amongst these is a special foil technology which can be used as a mirror and when switched on it spreads a bright, planar light.

Another interesting feature is the electric window blind. This is a foil, that is set between the window panes of the insulated windows, which can be electrically dimmed as a protection from the sun and intense heat, as well as being able to be used as privacy screen too.

Connectivity

Dethleffs place great importance when it comes to connectivity. Smart homes and the  internet of things (loT) are fast evolving trends of the present, which are having more and more impact, offering new possibilities for comfort and safety. The basic prerequisite for the ‘Smart Motorhome’ therefore is the digitisation and connection of the installed components in the vehicle.

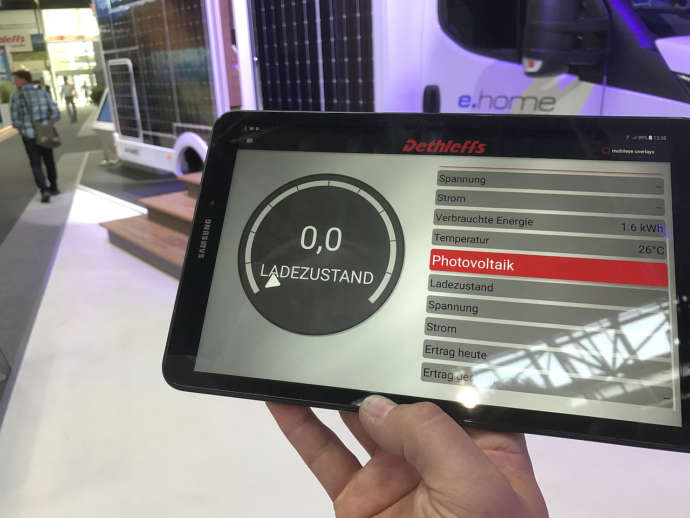

CampConnect

The Dethleffs e.home has an integrated system installed called CampConnect, which enables connectivity of general components and is able to digitalise almost all components in the motorhome. This connectivity can be operated by an installed app on your tablet. The operation and display possibilities are there for heating, light and power as well as central locking.

Safety

Dethleffs have installed an innovative safety system in the e.home. This so called ‘Mobileye’ supports the driver in the form of a ‘Third Eye’ in order to keep track of situations in front of the vehicle. It identifies potential dangers on the road and forewarns the driver by acoustic and optical signals.

Conclusion

It’s great to see pioneering projects choosing and using Victron Energy products. We wish Dethleffs every success for their e.home project and look forward to hearing more as the system evolves.

We hope readers get a chance to visit Caravan Salon Düsseldorf 2017; if not I trust this blog gives you an insight into Victron Energy’s products and how they can be integrated into exciting projects such as the e.home.

Thanks to Dethleffs staff and Uwe Dräger of Victron Energy for the information and images used  in this blog.

John Rushworth
