7. Technical Data
7.1. Battery Specification
VOLTAGE & CAPACITY | SuperPack 12,8V/100 Ah NG | SuperPack 12,8 V/200 Ah NG | SuperPack 25,6 V/100 Ah NG | SuperPack 25,6 V/200 Ah NG | SuperPack 51,2 V/100 Ah NG | |
Part Number | BAT512110740 | BAT512120740 | BAT524110740 | BAT5241207401) | BAT5481107401) | |
Nominal capacity @ 25 °C2) | 12,8 V | 25,6 V | 51,2 V | |||
Nominal energy @ 25°C2) | 100 Ah | 200 Ah | 100 Ah | 200 Ah | 100 Ah | |
Nominal energy @ 25 °C | 1280 Wh | 2560 Wh | 5120 Wh | |||
Capacity loss / Energy loss | (per 100 cycles, @ 25 °C, 100 % DoD): <1 % | |||||
Round trip efficiency3) | 93 % | |||||
CYCLE LIFE 25 °C (capacity ≥ 80 % of nominal)3) | ||||||
Cycle life | 2500 cycles @80 % DoD | 3000 cycles @70 % DoD | 5000 cycles @50 % DoD | |||||
DISCHARGING | ||||||
Recommended discharge current (continuous use) | 50 A | 100 A | 50 A | 100 A | 50 A | |
Max continuous discharge current8) | 200 A | 400 A | 200 A | 400 A | 200 A | |
End of discharge voltage | 11,2 V | 22,4 V | 44,8 V | |||
Internal resistance | 2 mΩ | 1 mΩ | 4 mΩ | 2 mΩ | 8 mΩ | |
CHARGING | ||||||
Recommended charging voltage | 14 V | 28 V | 56 V | |||
Float voltage | 13,5 V | 27 V | 54 V | |||
Charging voltage range | [13,5 - 14,2] V | [27 - 28,4] V | [54V - 56,8] V | |||
Recommended charging current | 30 A | 60 A | 30 A | 60 A | 30 A | |
Max continuous charging current8) | 100 A | 200 A | 100 A | 200 A | 100 A | |
FEATURES | ||||||
Hardware connection / System max current | Short circuit above 800 A | |||||
Software protections | Overvoltage, Undervoltage, Overtemperature, Undertemperature, Overcurrent | |||||
Wired communication | External Feedback Signal (EFS) | |||||
Bluetooth | Yes, VictronConnect App | |||||
GUI / Status indication | Push button (On/Off), BLE LED, Error LED | |||||
Self-heating max power | 65 W | 130 W | 260 W | |||
OPERATING CONDITIONS | ||||||
Parallel configuration | Yes, unlimited energy expansion, with power expansion limited to the system’s maximum current | |||||
Series configuration | No | |||||
Operating temperature | Charge7) and Discharge: -30 °C to +60 °C | |||||
Humidity Operating Range (non condensing) | <90 % RH | |||||
Storage temperature | Recommended [10 - 35] °C Expanded [-40 to +65] °C4) | |||||
Max storage time @ 25°C | 1 year with at least initial remaining SoC >50 % | |||||
Protection class | IP65 | |||||
MOUNTING | ||||||
Power connection (threaded insert) | M8 female 20 mm including nut screws | |||||
Mounting options | Upright and on its long side, maintain flat horizontal support | |||||
Dimensions [LxWxH] (mm)5) | 273 x 173 x 1736) | 466 x 198 x 173 | 871 x 198 x 173 | |||
Weight (kg) | 10,7 | 20,5 | 41 | |||
External Feedback Signal (EFS) Connector | External Feedback Signal connector for SuperPack NG (included) - Victron part number: SPR00310 | |||||
STANDARDS | ||||||
Safety | Cells: IEC62619 | UL1973 | UL 9540A Battery: IEC62619 (pending) | |||||
EMC | EN 61000-6-3, EN 61000-6-2 | |||||
Performance | IEC62620 (pending) | |||||
Transportation | UN 38.3 | |||||
Automotive | ECE R10-7 | ECE R10 pending | ||||
Notes | 1) Product launch after Q1 2026 2) Discharge current ≤1C 3) 25 °C and 0.5C cycling 4) Performances might be reduced 5) Additional height of 15 mm for terminal screws 6) Compatible with BCI Group 49 dimensions 7) Below 0 °C, charging is suspended while the internal self-heating function warms the cells and automatically resumes once a safe charging temperature is reached. 8) Above this limit, protection is triggered within 10 seconds. | |||||

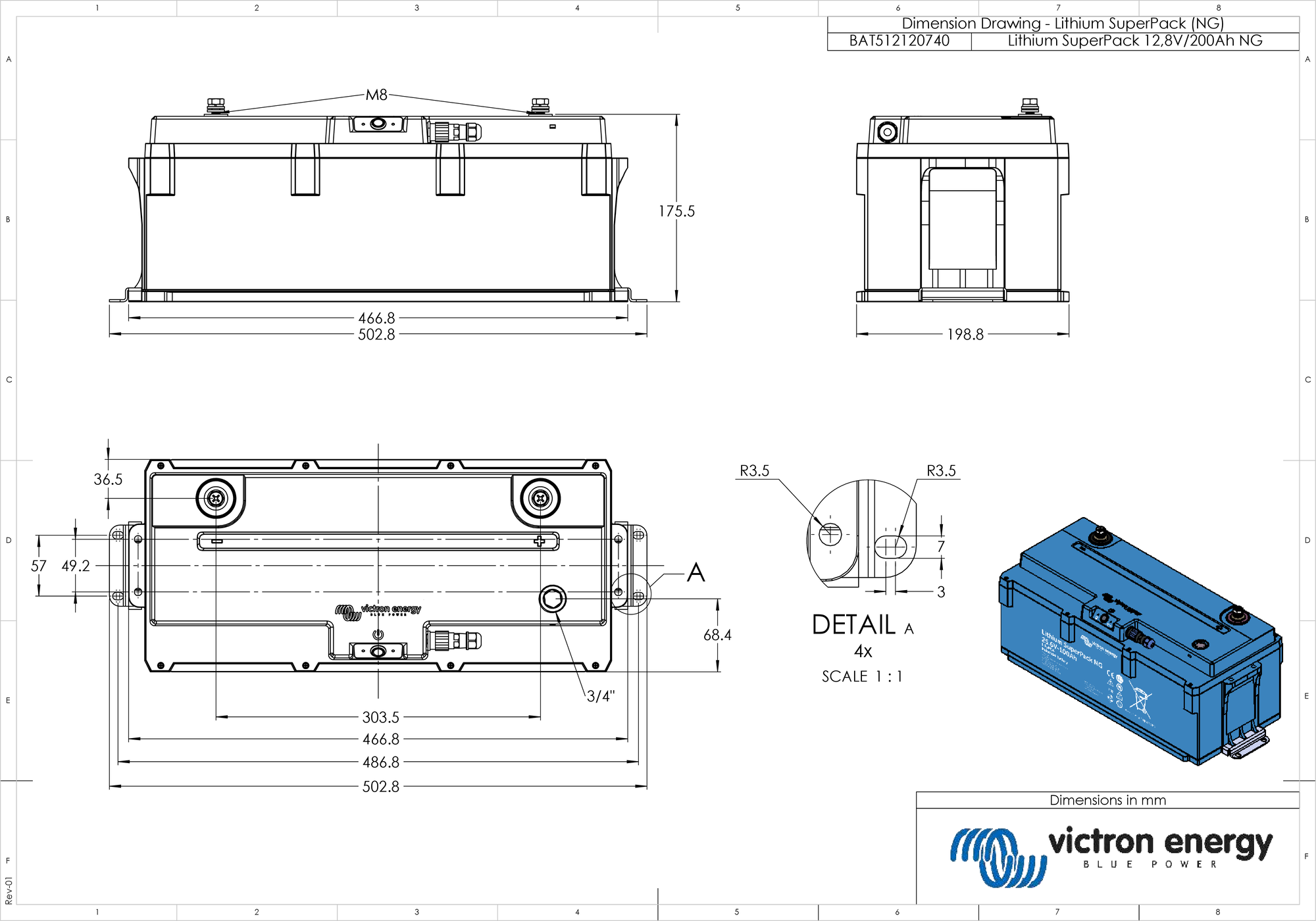

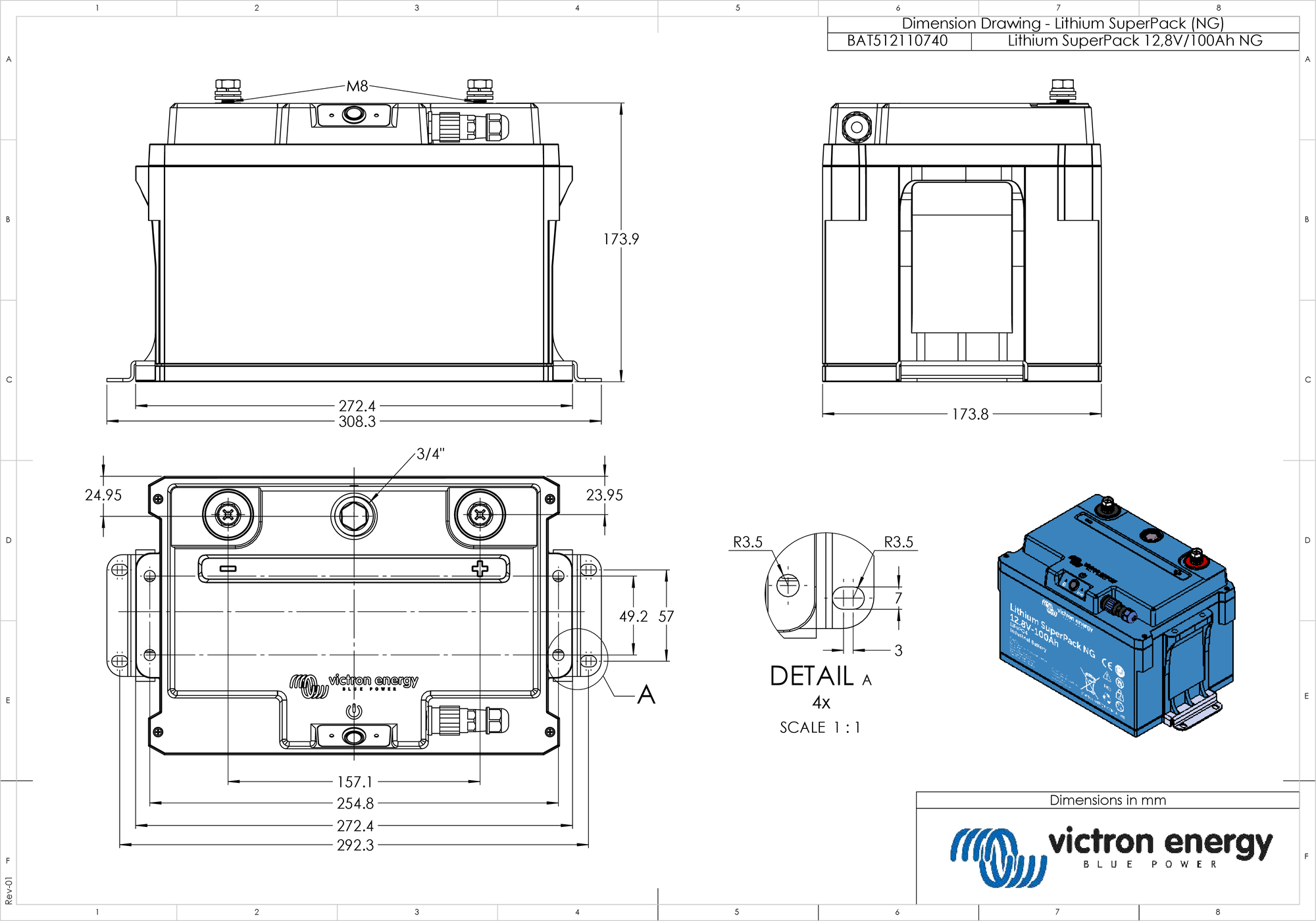

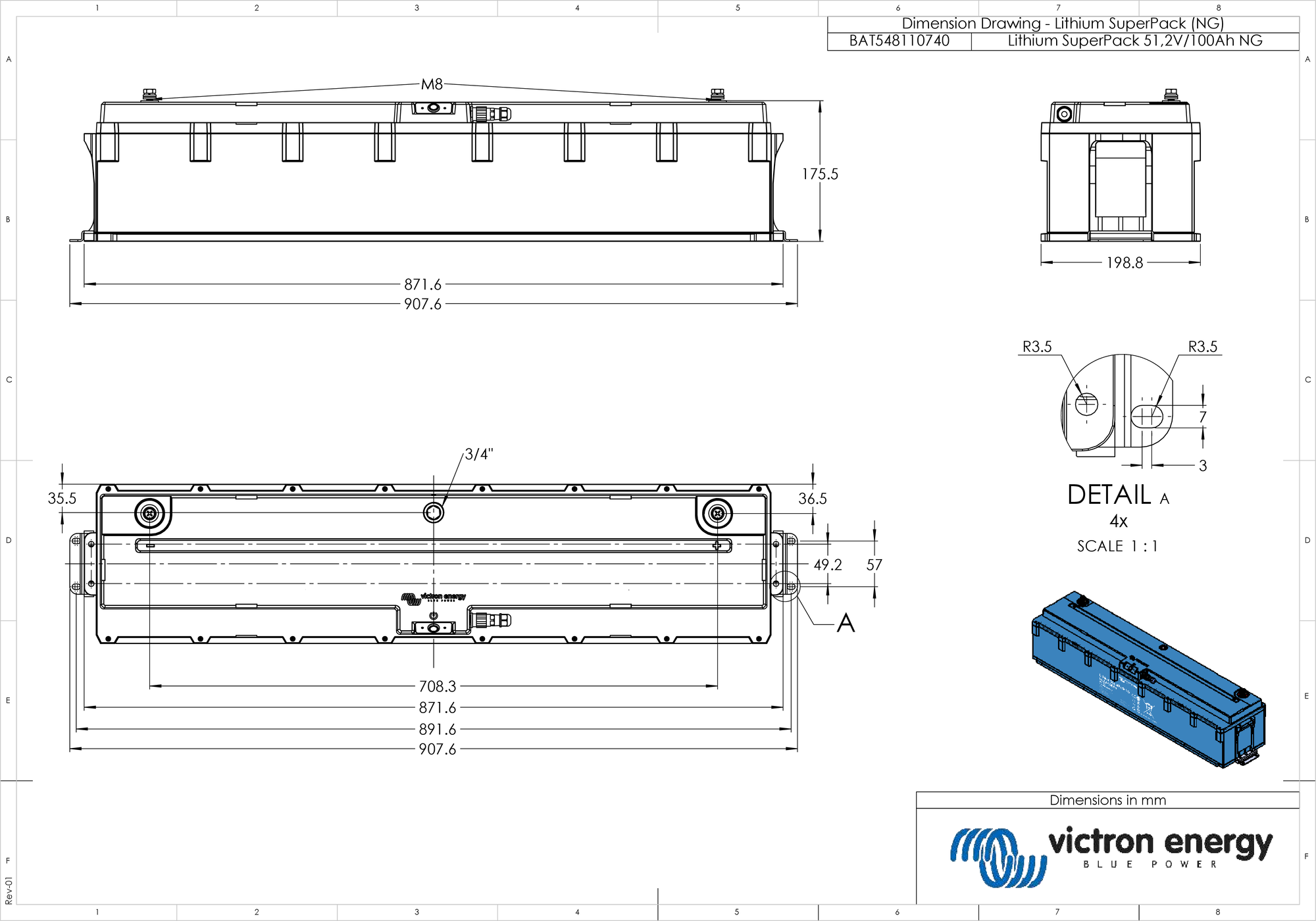

7.2. Enclosure Dimensions
