Field test: PV Modules

A real world comparison between Mono, Poly, PERC and Dual PV Modules.

Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
S
Total solar yield: --
E
Total solar yield: --
W
Romania
--
--
Installation date: 09-03-2020
--
--
--
--
--
--
--
Irradiance

* This is a field test and the results are specific for this installation on this location please research which is the best solution for your own situation as the results can be different based on environmental influences.

Total solar yield as of 27/03/2023 when the results were reset:
Mono: 9158 kWh
Split-cell: 9511 kWh
Poly: 9113 kWh
Perc: 9471 kWh
Perc-east: 1970 kWh
Perc-west: 1730 kWh

VE.Bus Smart dongle
VE.Bus Smart dongle
VE.Bus Smart dongle
VE.Bus Smart dongle
VE.Bus Smart dongle

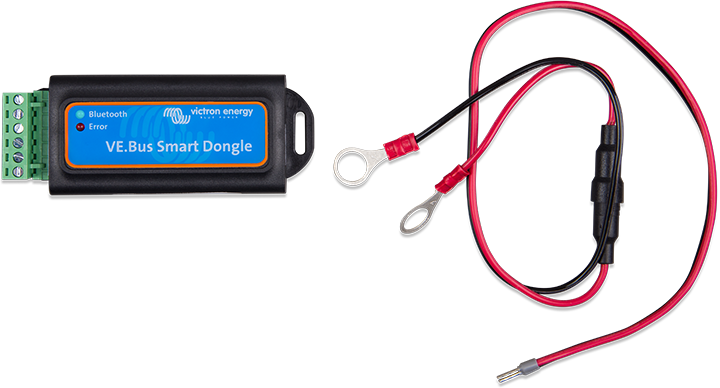

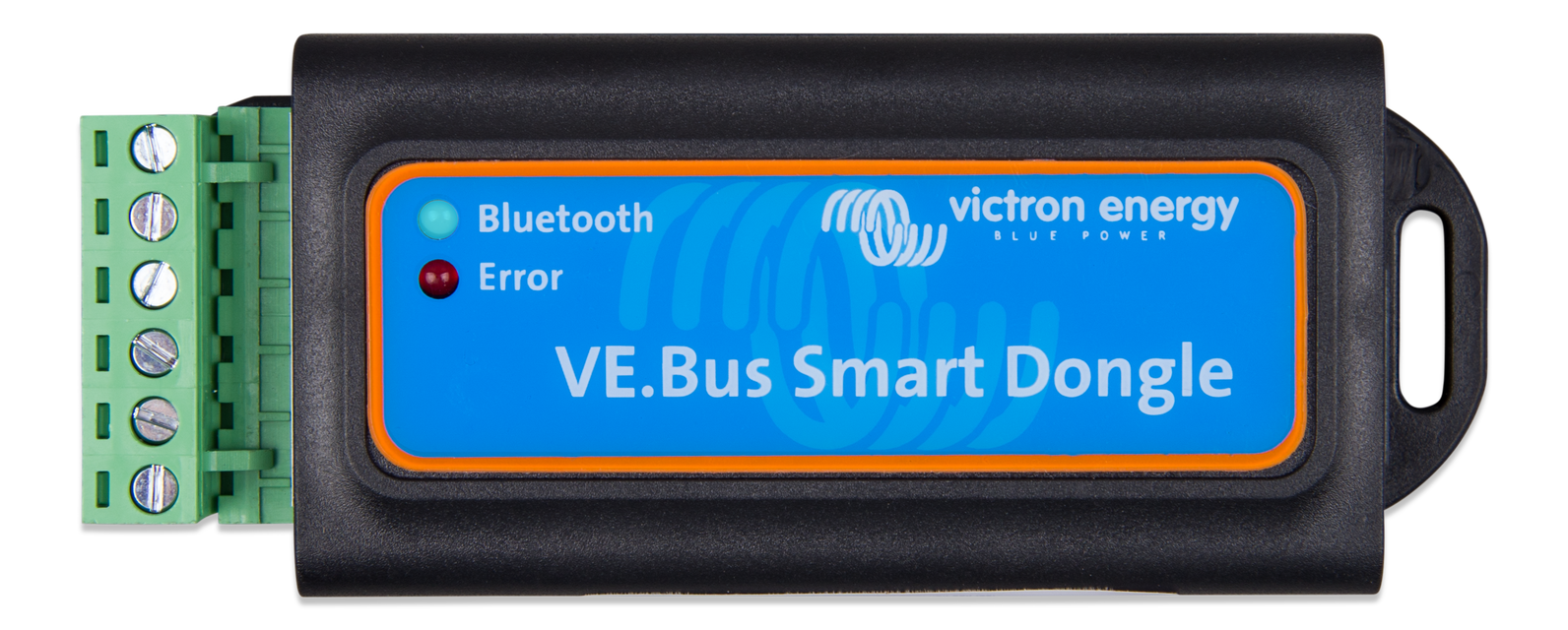

The VE.Bus Smart dongle is two products in one:

First of all it is the Bluetooth accessory for our range of inverter/chargers: Multis, MultiPlusses, MultiPlus-II, MultiGrid, MultiGrid-II, Quattros, and our series of Phoenix Inverters with a VE.Bus port. When installed, use the VictronConnect App to monitor operation and also operate the system: change the input current limit as well as switch between Off, On and Charger-only modes.

Secondly it can work as a Voltage- and Temperature-sense device for the inverter/charger. This works with all models.

For monitoring, the device is a great alternative in caravans, smaller yachts and motor homes for which the Color Control GX or Venus GX are a step too far.

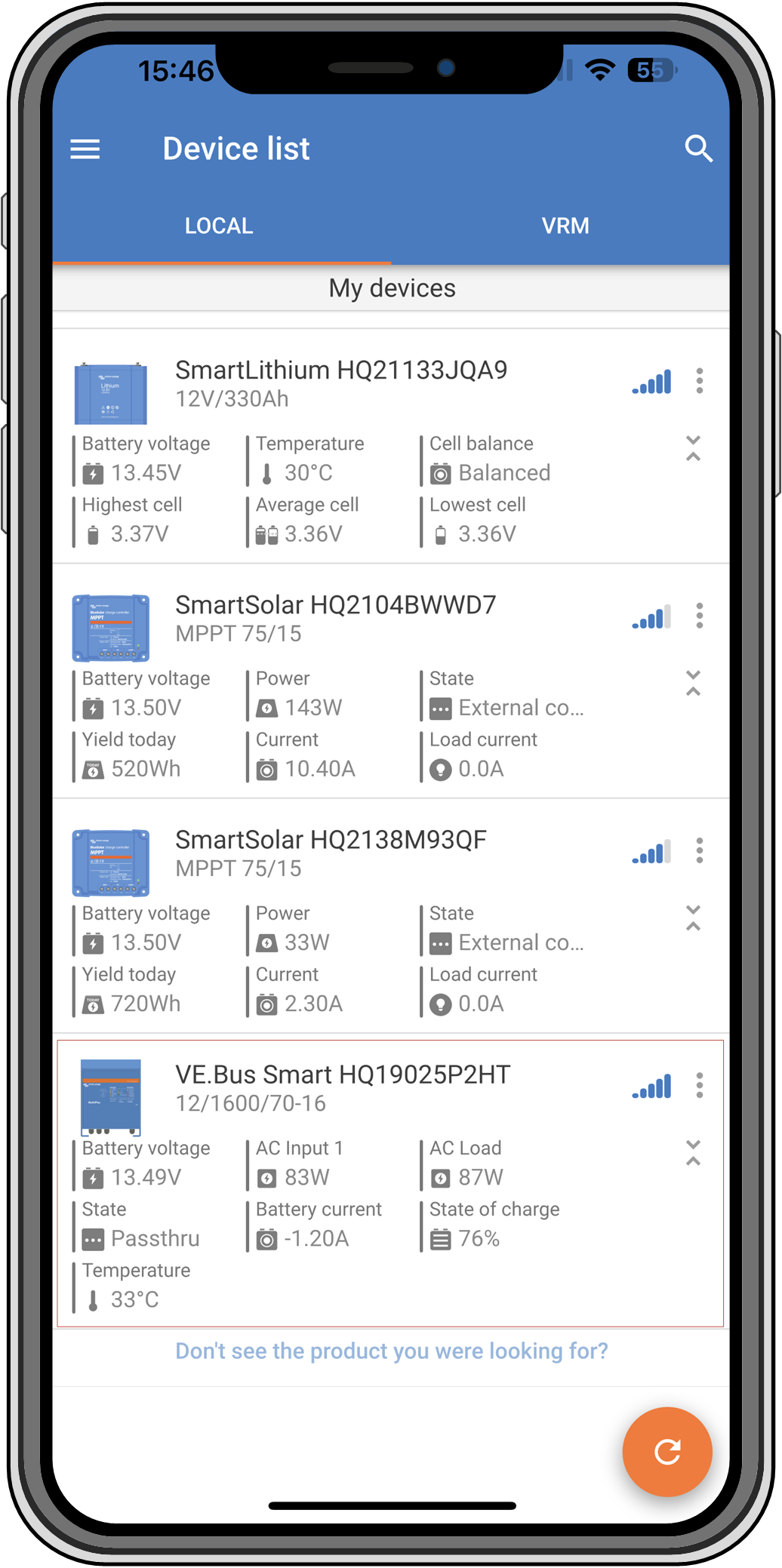

It also adds Instant Readout to the VE.Bus product and displays the inverter/charger's key data on the VictronConnect device list page without requiring a connection to the product. This includes visual notifications of warnings, alarms, and errors, allowing for at-a-glance diagnostics.

VictronConnect

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.
