Battery Switch - manual

Battery Switch knob removal

The knob of the Battery Switch can be removed. Use this feature to prevent unwanted operation of the switch. When the knob is removed, the switch is off.

Removal of the knob will prevent accidental switching, for example when system maintenance is carried out (safety), or when the system is left unattended for a certain time (battery discharge prevention).

To remove the knob
  1. Ensure that engines and equipment connected to the same DC circuit as the Battery Switch are turned off.

  2. Turn the Battery Switch knob counter clockwise to the "OFF" position has been reached.

  3. Turn the knob a further 30° counter clockwise until the "Remove" position has been reached

  4. Pull the knob away from the Battery Switch.

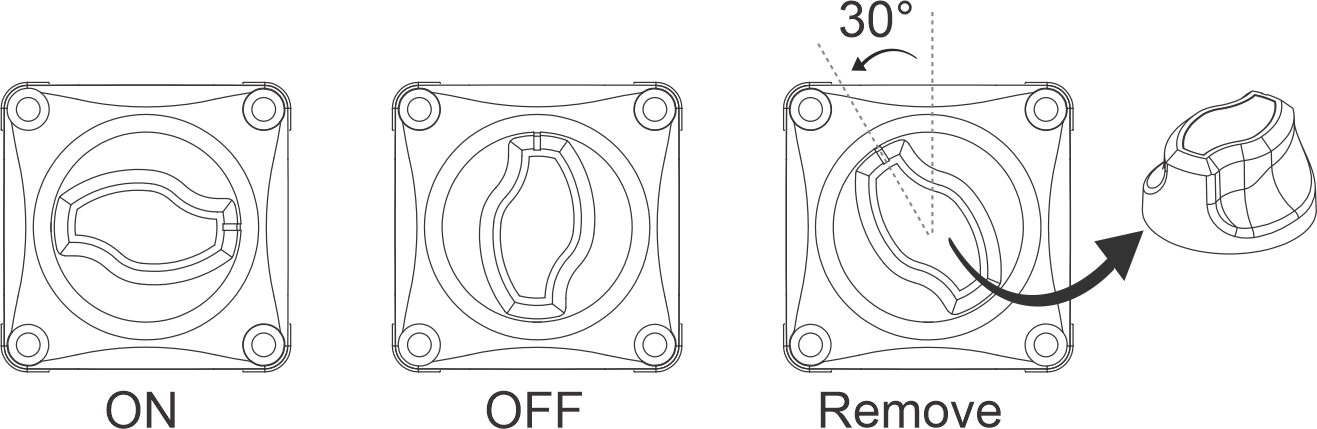

Removal of the Battery Switch knob.
