Preview: New Products for Intersolar Europe 2019

Intersolar Europe 2019 is almost upon us and will be held at Neue Messe München from May 15-17, 2019.

As ever Victron Energy will be exhibiting. Our stand this year is number B2.480, where many new and updated products will be on display. Four key new products and one new product range are:

These new products will be launched at Intersolar, however in this preview blog we can delve into a little more detail and compare the new models above with previous models where appropriate.

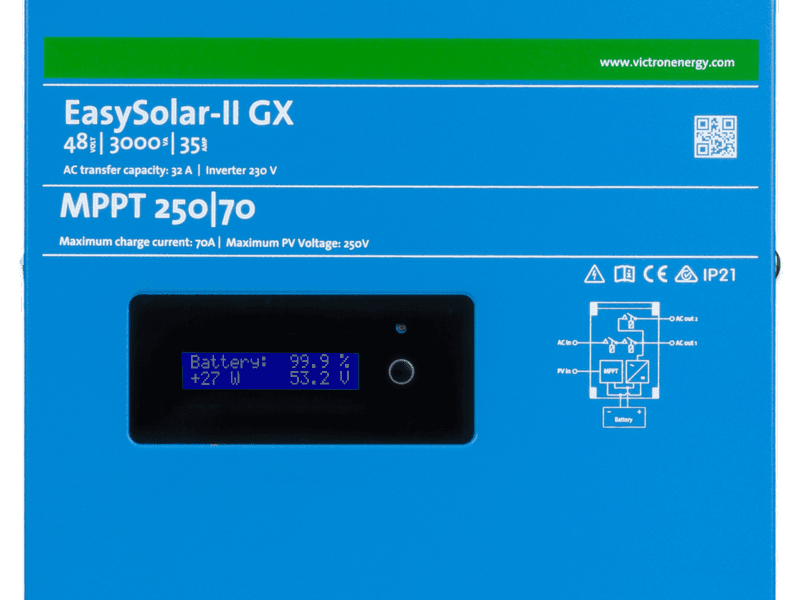

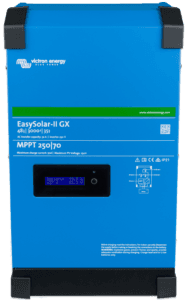

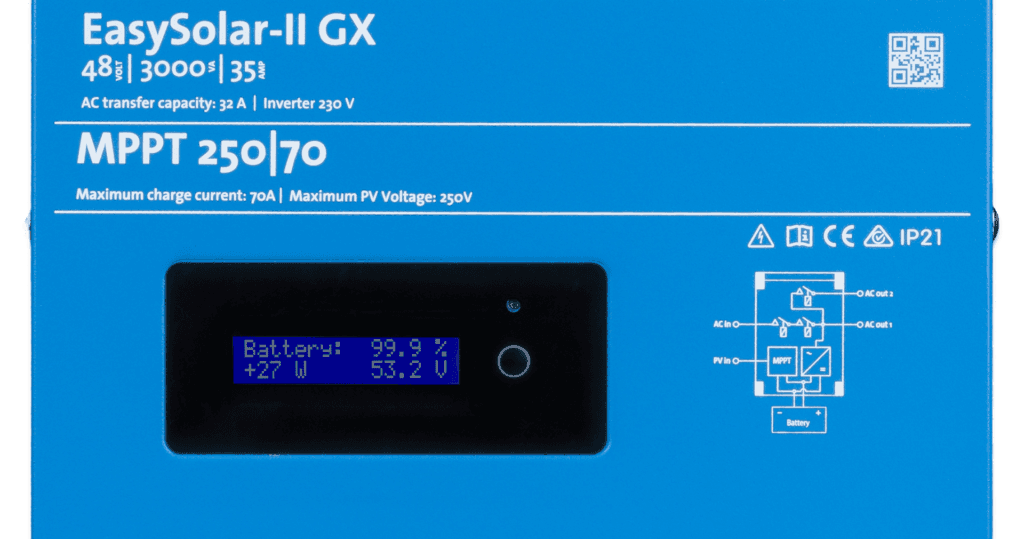

EasySolar-II 48/3000/35-32 MPPT 250/70 GX

Building on the existing EasySolar (which contains a MultiPlus Inverter/Charger and BlueSolar MPPT Solar Charge controller) this new model has a number of improved features and brings other welcome changes.

The EasySolar-II 3000VA GX (when compared to the earlier EasySolar) is based upon the Multiplus-II, giving the whole unit a more compact and modern design, along with improved standby power efficiency, reduced weight and volume.

The GX suffix indicates that there is a GX device for control and monitoring built-in. A GX device is usually a standalone device such as a Color Control GX, Venus GX, Octo GX or a CANvu GX – but in this instance it is a new integrated GX device, which is already connected to the internal Multiplus-II and MPPT charge controller.

In addition there is a small two line display showing what the unit is doing, and if relevant it can also show a detailed error code  – no more counting blinking LEDs!

The EasySolar-II 3000VA GX allows connection to CAN-bus battery management systems, the VRM remote data monitoring portal via Ethernet or built-in WiFi, enables ESS functionality, and much more.

Another update is the AC and DC rated circuit breaker protection is no longer supplied. This change is based on feedback from our customers who are now able to connect the EasySolar-II GX to their own AC and DC fuses or circuit protection – in other words that which is best suited to a particular application and any regional requirements.

The integral MPPT has had the input voltage increased from 150V to 250V, giving greater flexibility when choosing solar panel configurations. In addition, because the MPPT is Victron Smart, there’s all the usual VictronConnect App functionality people have come to expect from Smart enabled products.

If paralleling and using three phase with the EasySolar-II 3000VA GX, there can only be one GX device in such a system. Indeed one GX device is enough and therefore it does not make sense to buy three of the EasySolar-II 3000VA GXs and put them in a three phase installation. Instead what you do is buy one and then buy two normal MultiPlus-IIs with the same rating.

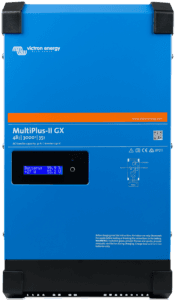

MultiPlus-II 48/3000/35-32 230V GX

This model is the existing MultiPlus-II 3000, with the addition of built-in GX features. It has all the advantages that you’ve come to expect from GX devices. We’ll keep both products in stock.

Like the EasySolar-II 3000VA GX there is a small two line display showing what the unit is doing, and if relevant it can also show a detailed error code  – no more counting blinking LEDs!

Building a split- or three-phase system, or parallel system, with the MultiPlus-II GX models can be done. But there can only be one GX device in such a system. Indeed one GX device is enough and therefore it does not make sense to buy three of the MultiPlus-II 3000VA GXs and put them in a three phase installation. Instead what you do is buy one and then buy two normal MultiPlus-IIs with the same rating.

Another option is of course to use multiple normal MultiPlus-IIs, and then choose a GX device to your liking.

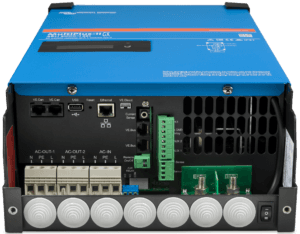

Below you can see the plethora of available connection options available on the GX version. Click the image to enlarge it.

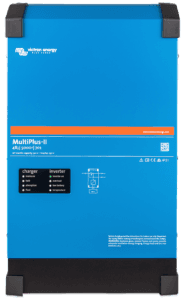

MultiPlus-II 48/5000/70-50 230V

This new MultiPlus-II is simply a larger version of the existing 3000 version. See the product page and choose the datasheet to compare the new MultiPlus-II 48/5000/70-50 to the MultiPlus-II 48/3000/35-32.

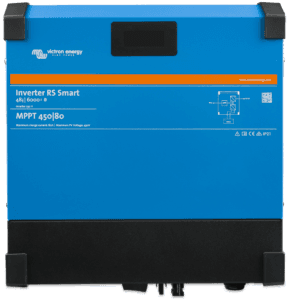

Inverter RS 48/6000 230V Smart Solar

Yet another exciting new product, Victron Smart too.

Here are some key features of the RS 6000:

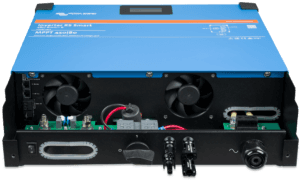

The image below shows the bottom cover removed, to reveal various connections which include 1 x VE.Direct and 2 x VE.Can connections. Click the image to enlarge it.

Note: The Inverter RS 6000 cannot be configured for parallel operation nor three phase at present.

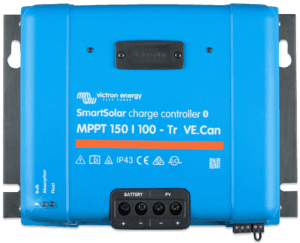

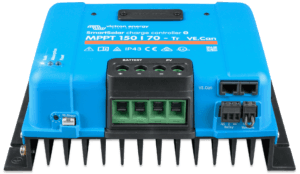

SmartSolar MPPT VE.Can

Last in the list of new products presented today is the SmartSolar MPPT VE.Can series.

There will be a series of 150V models available, as well as 250V. More detailed news will be shared in a future blog post.

More information, pricing and availability

More technical information will be made available in the coming days and weeks: product pages, datasheets, and other documentation is being finished and made available on our website.

For availability and pricing, check the pricelist on our website. Or, if you are a direct customer, use E-Order.

Conclusion

As is often the case Intersolar serves as a launchpad for many new Victron Energy products. That doesn’t mean other new products aren’t released throughout the year – it’s simply that Intersolar is one of the best places to see, learn and try the latest Victron products.

Oh! – And of course there’s Victron’s infamous Intersolar Stand Party to attend…

John Rushworth
