5. Data sniffer

In this section:

The Data sniffer function provides the same monitoring and logging capabilities as the Battery tester, but is intended for systems where multiple Lithium NG batteries are connected in a daisy chain. It allows live viewing and recording of battery data from the complete chain during commissioning, troubleshooting, and support work.

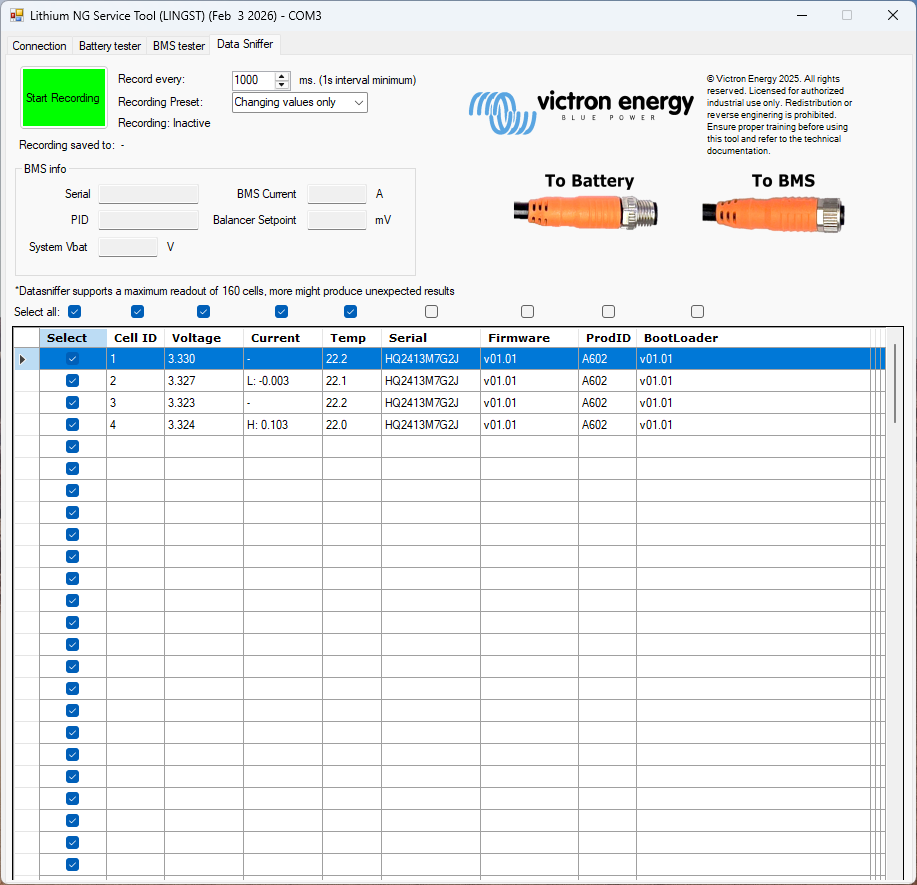

Logging configuration

Select the Data sniffer tab and, if required, adjust the sampling time using Record every (values are in milliseconds, minimum interval 1 s).
In the table, select the values to log from the drop-down list:
- Changing value only (default) - logs only measurement.
- All - logs every record, including identifier values.
- None - clears the selected columns.
Manual selection is also possible using the checkboxes above each column.
Data is displayed live in the table.
- Each line represents the data acquired for each battery cell.
- Current values are displayed due to the measurement redundancy internally collected. The measurements have different accuracy along the current range.
- Serial, firmware, ProdID and BootLoader are relevant reference for remote assistance.
The first column (Select) allows deselecting rows that are not relevant for the log.
Click Start Recording to begin logging the displayed values.
- A folder Recording is created in the same location as the application.
- A new text file DataSnifferRecording_[number] is created within the folder.
- The data is logged with:
  - Space (SP) as the separator
  - Comma (,) as the decimal seperator
  - L = low range current measurement
  - H = high range current measurement
