8. Appendix

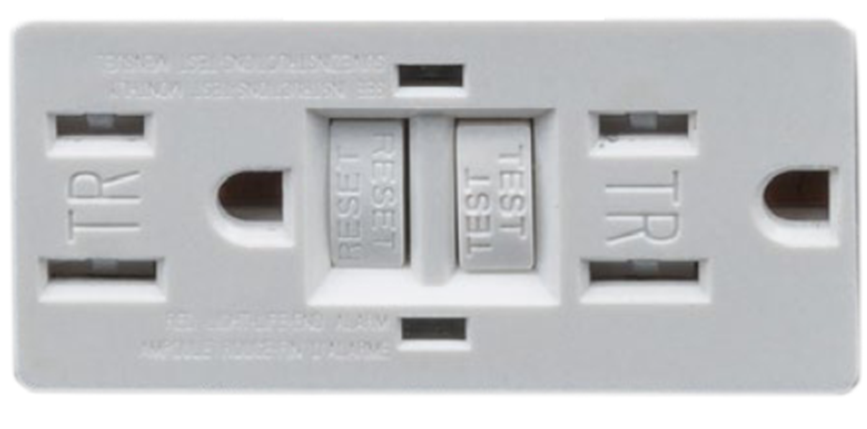

8.1. AC outlet
Depending on the model, the inverter is equipped with one of the following AC outlet types:

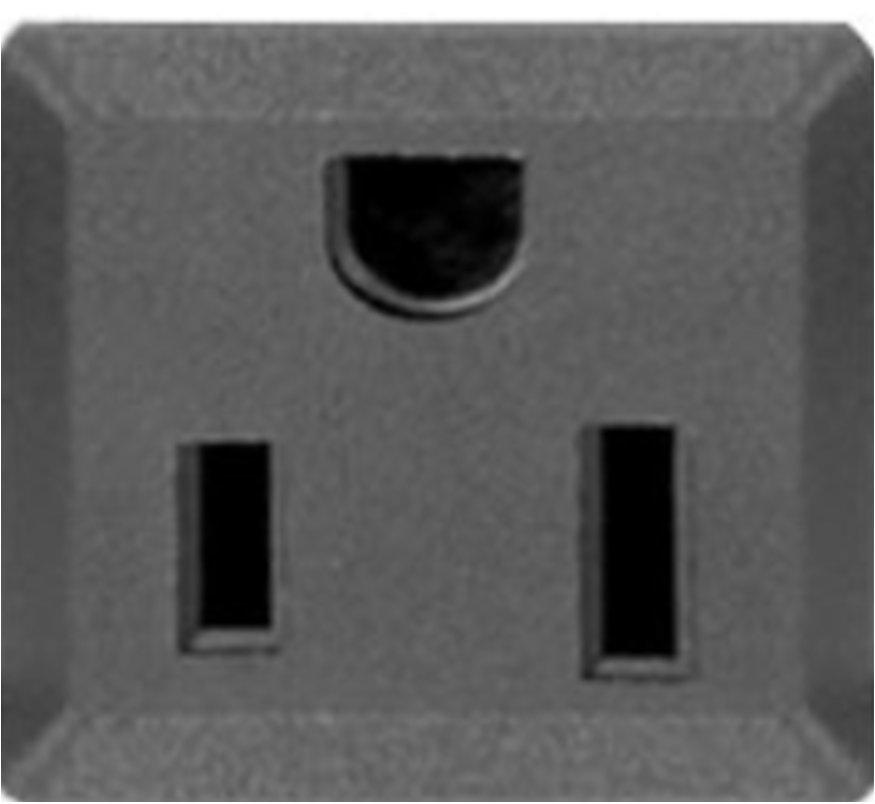

The inverter is equipped with a NEMA 5-15R outlet
AC outlet | AC voltage | Image |
|---|---|---|
Nema 5-15R | 120V |  |

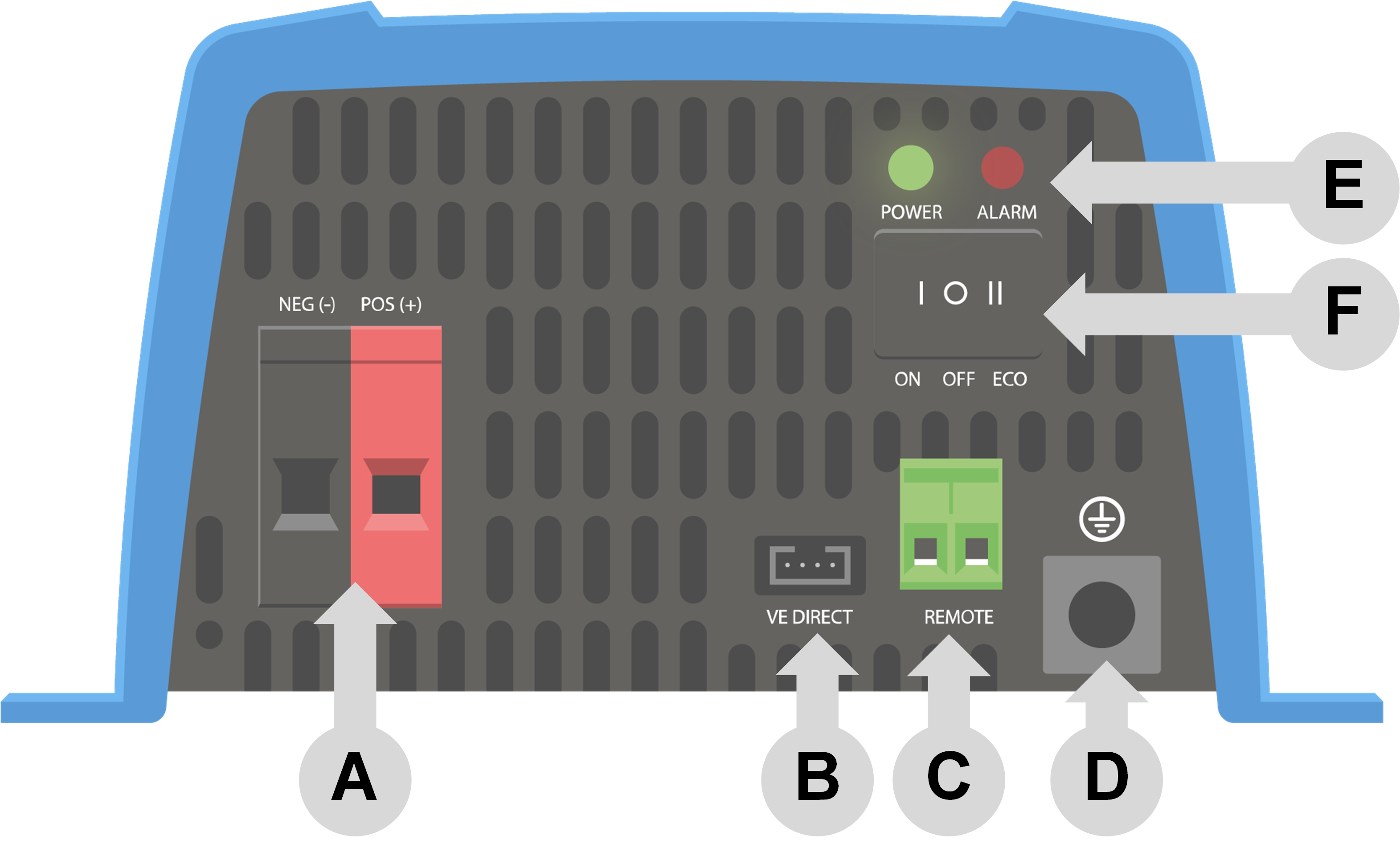

8.2. Connection overview
# | Description |
|---|---|
A | Battery connections |
B | VE.Direct connection |
C | Remote on/off terminal connection |
D | Chassis ground connection |
E | LEDs |
F | ON/OFF/ECO switch |
8.3. Installation information neutral to ground connection
Connecting the inverter neutral output to the chassis/ground
The AC output is isolated from the DC input and the chassis. Local regulations may require a true neutral. In this case one of the AC output wires must be connected to the chassis, and the chassis must be connected to a reliable ground. Inside the inverter a provision has been made to be able to connect the neutral and the chassis; the way to do this is explained below.
Please be sure to disconnect the battery when connecting the neutral to protective earth (PE).
An internal PE wire, which is used to connect the neutral and the chassis, is accessible after removing the plastic cover. A Torx T10 screwdriver is needed to loosen the four screws which hold the plastic cover.

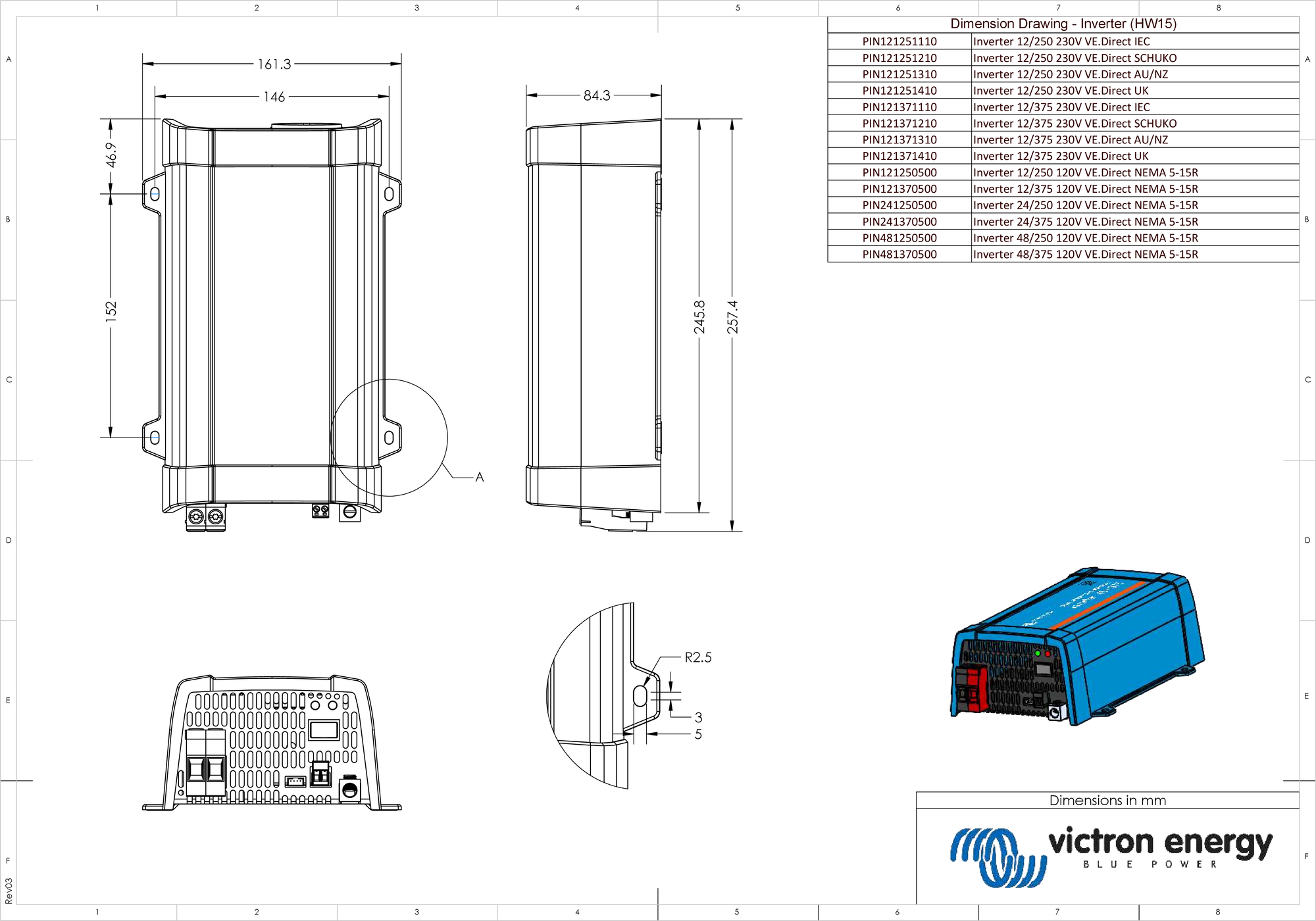

8.4. Dimensions 250 and 375 models

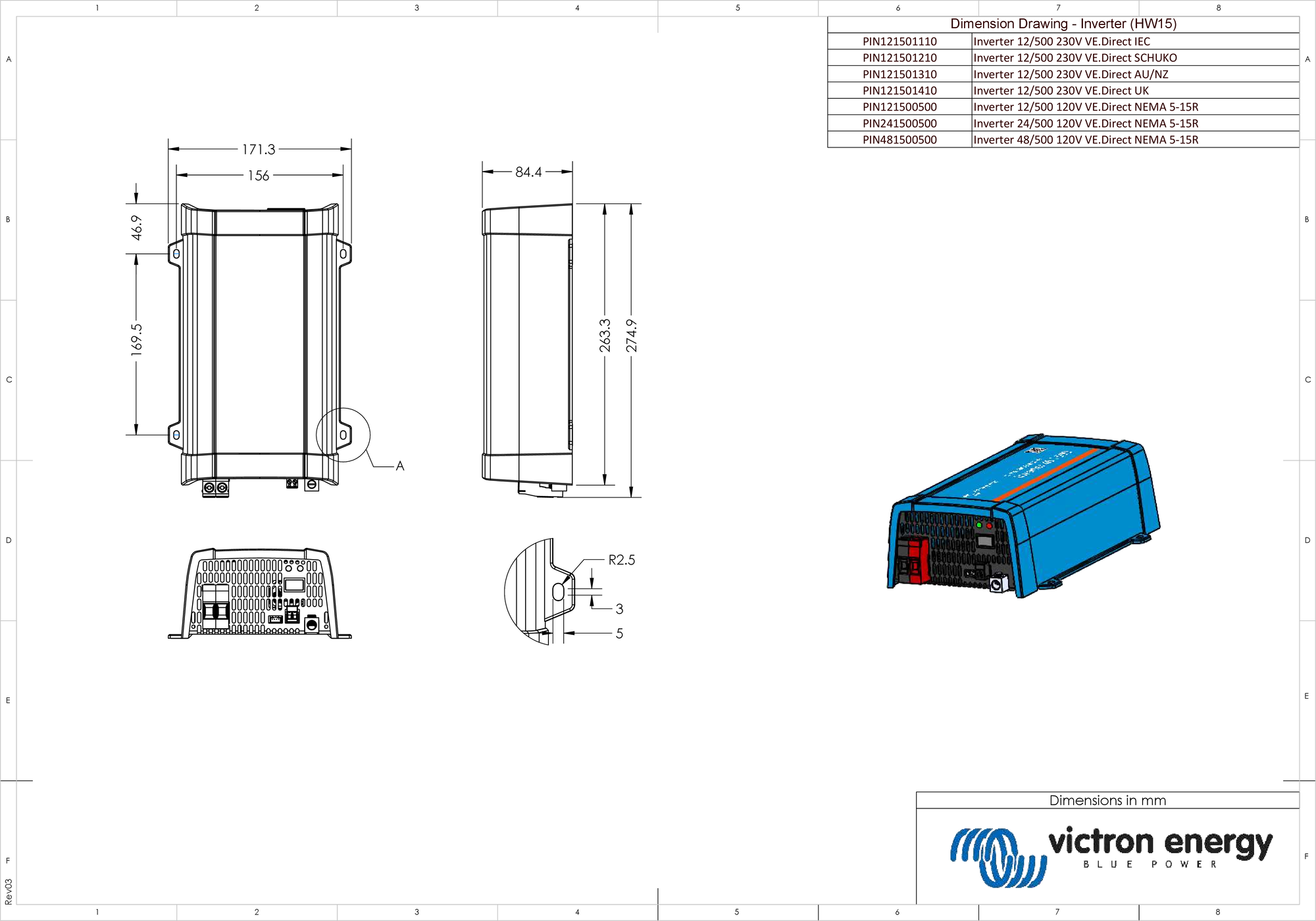

8.5. Dimensions 500 models

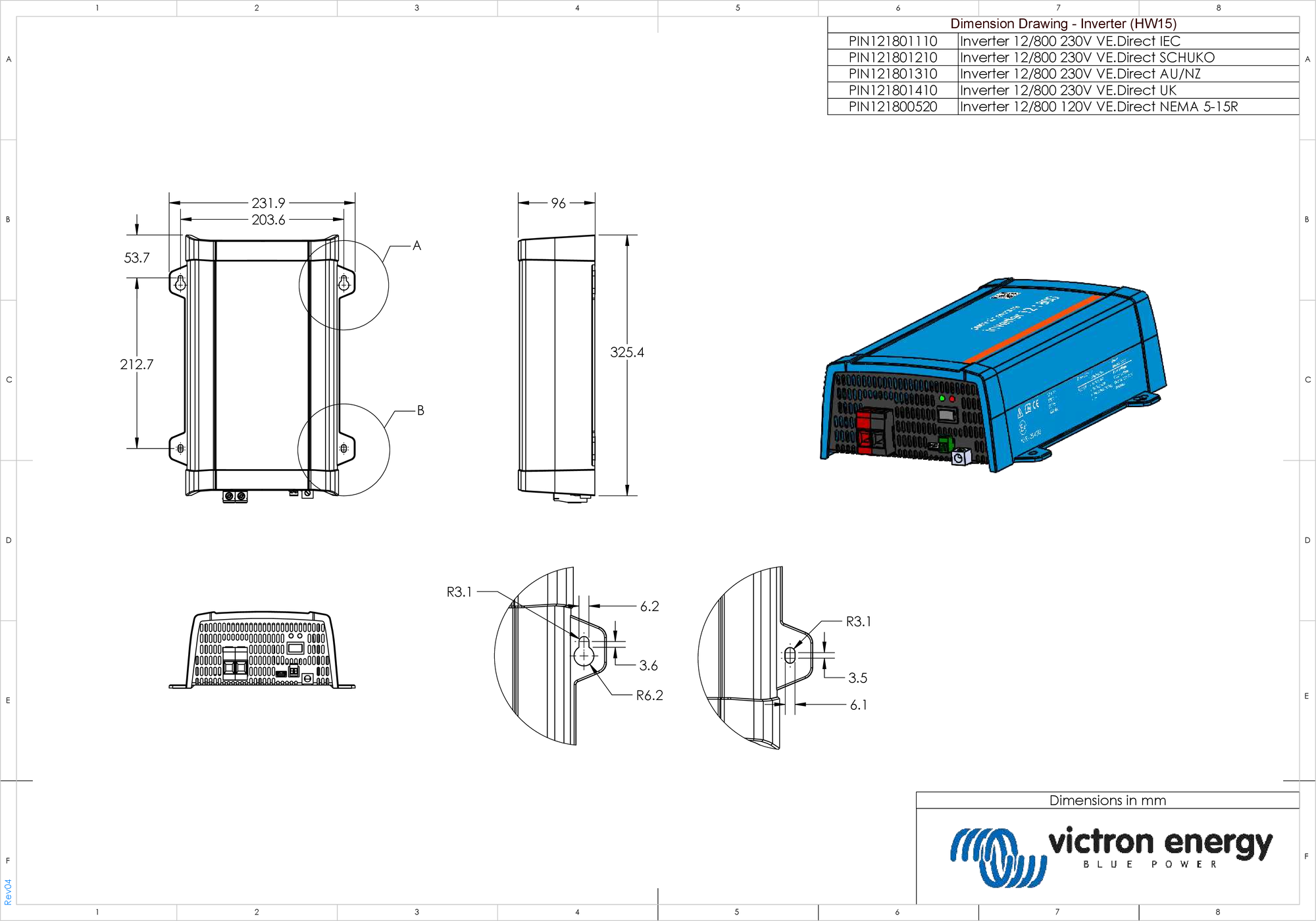

8.6. Dimensions 12/800 model

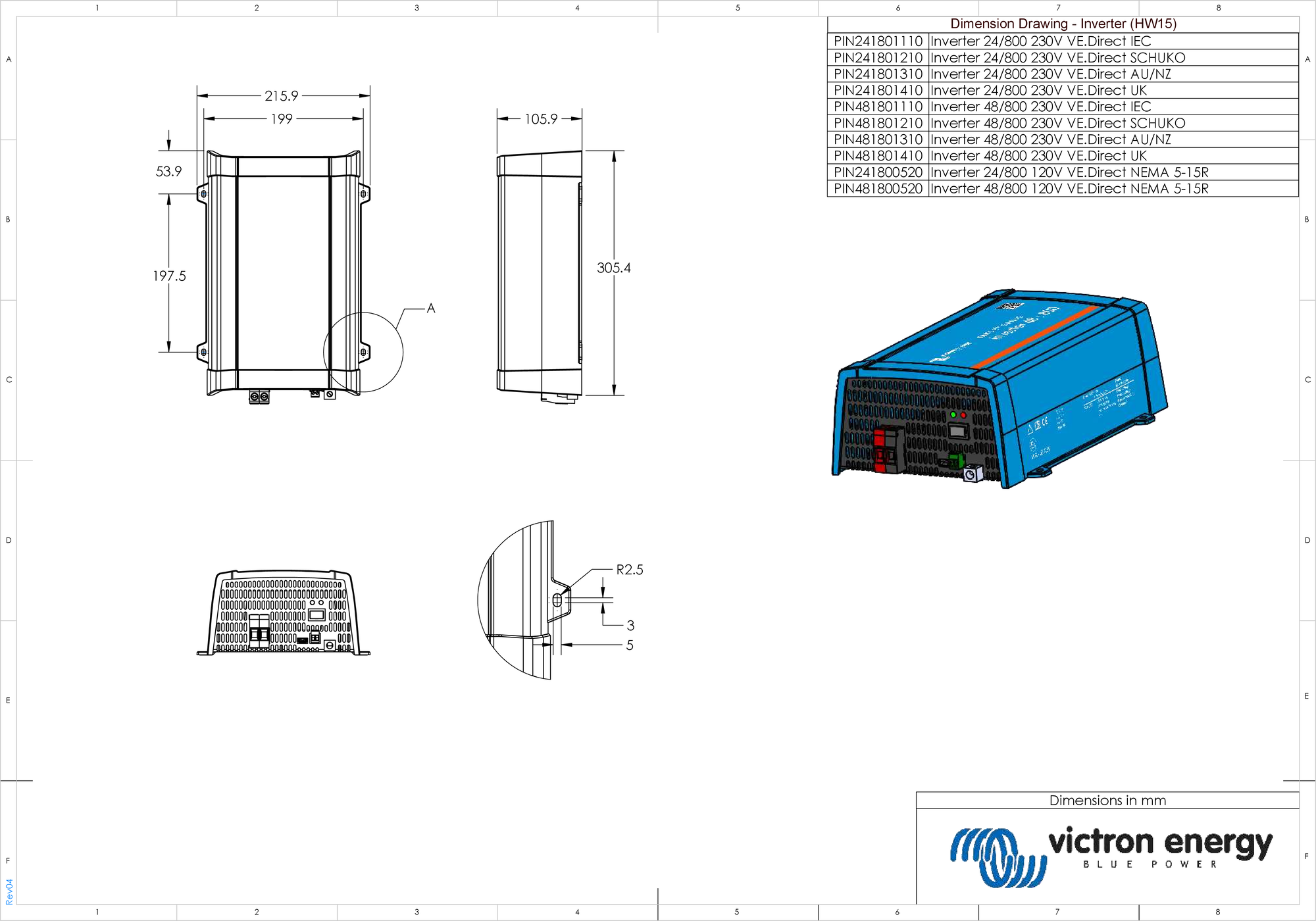

8.7. Dimensions 24/800 and 48/800 models

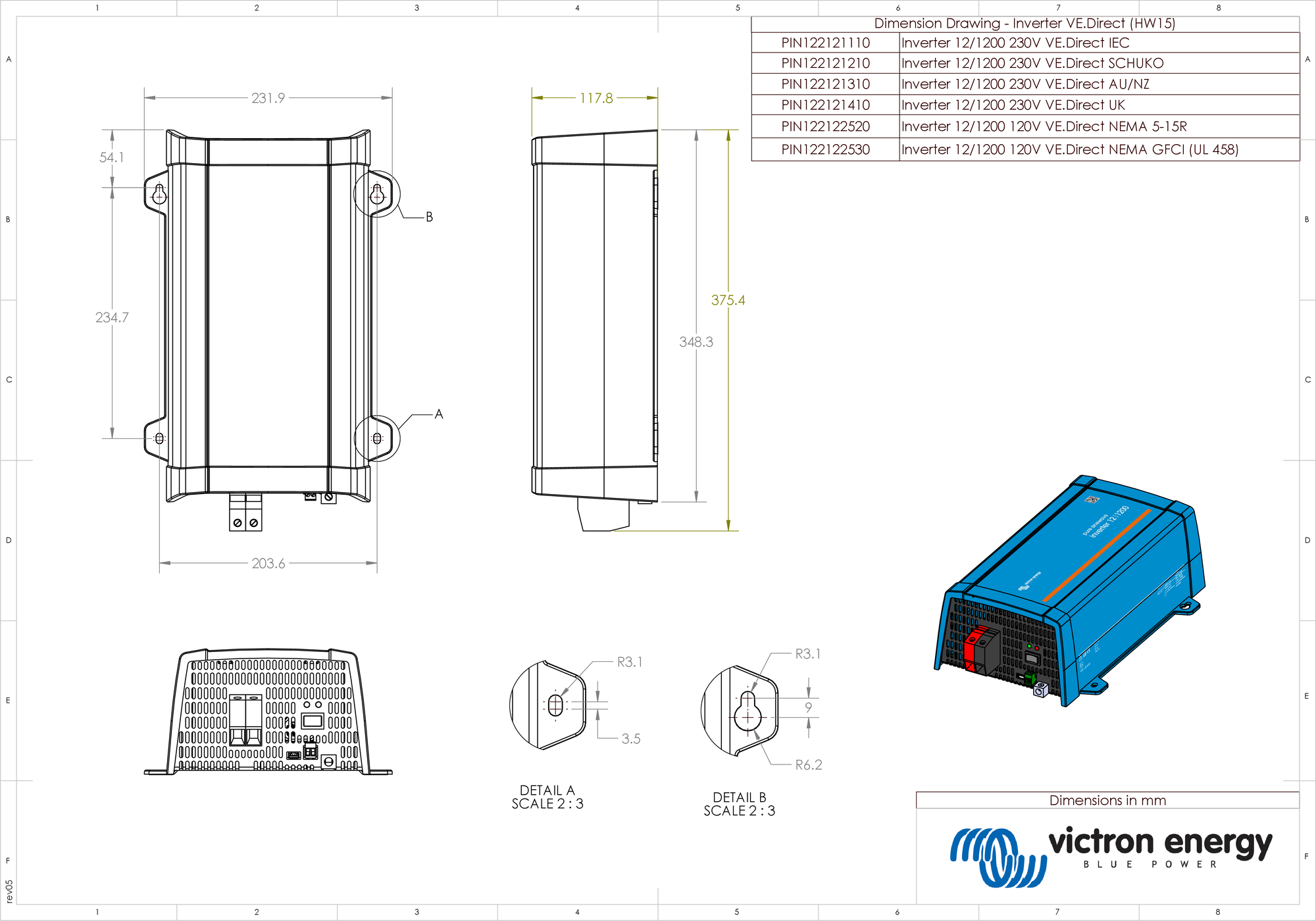

8.8. Dimensions 12/1200 model

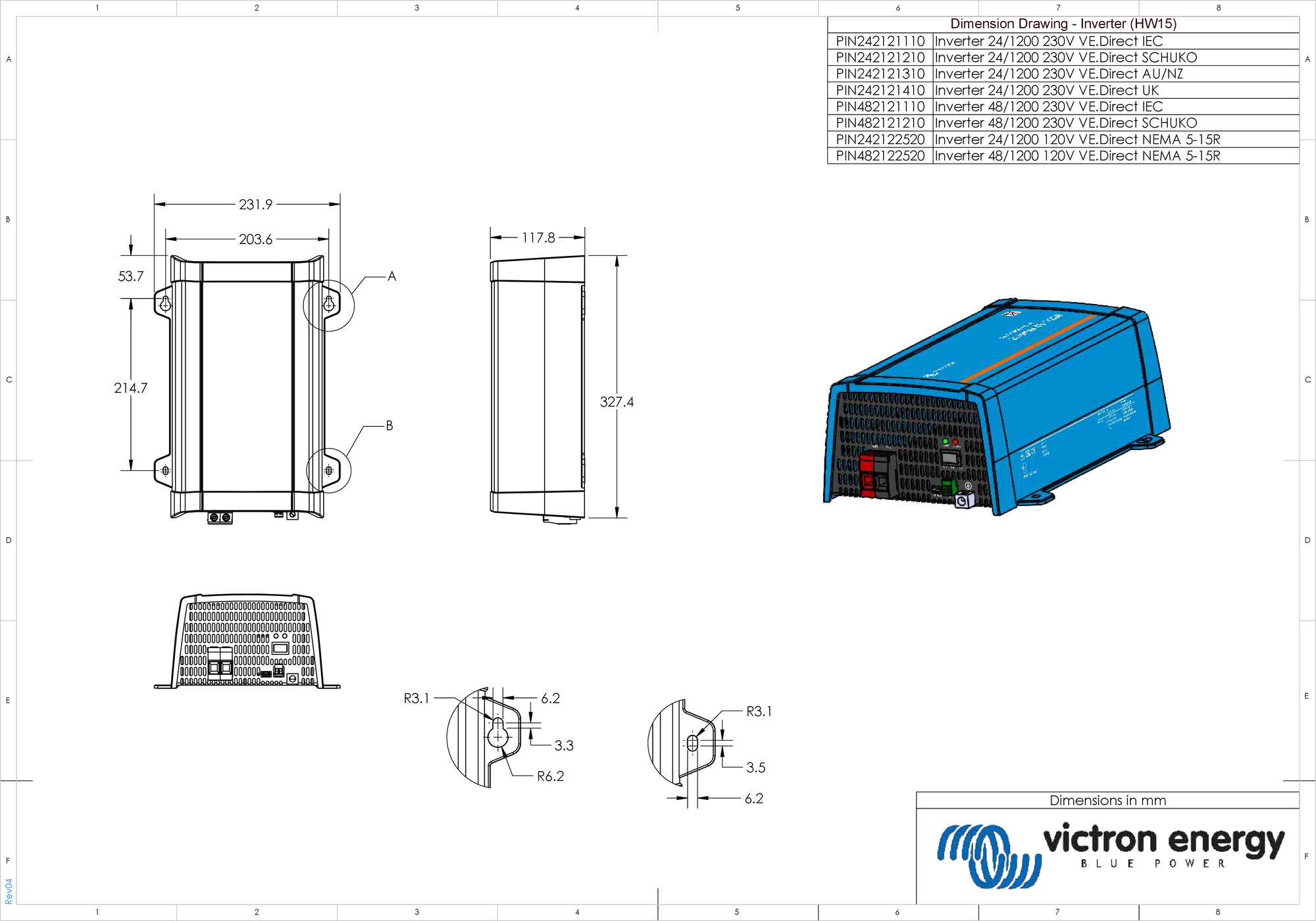

8.9. Dimensions 12/1200 and 48/1200 models

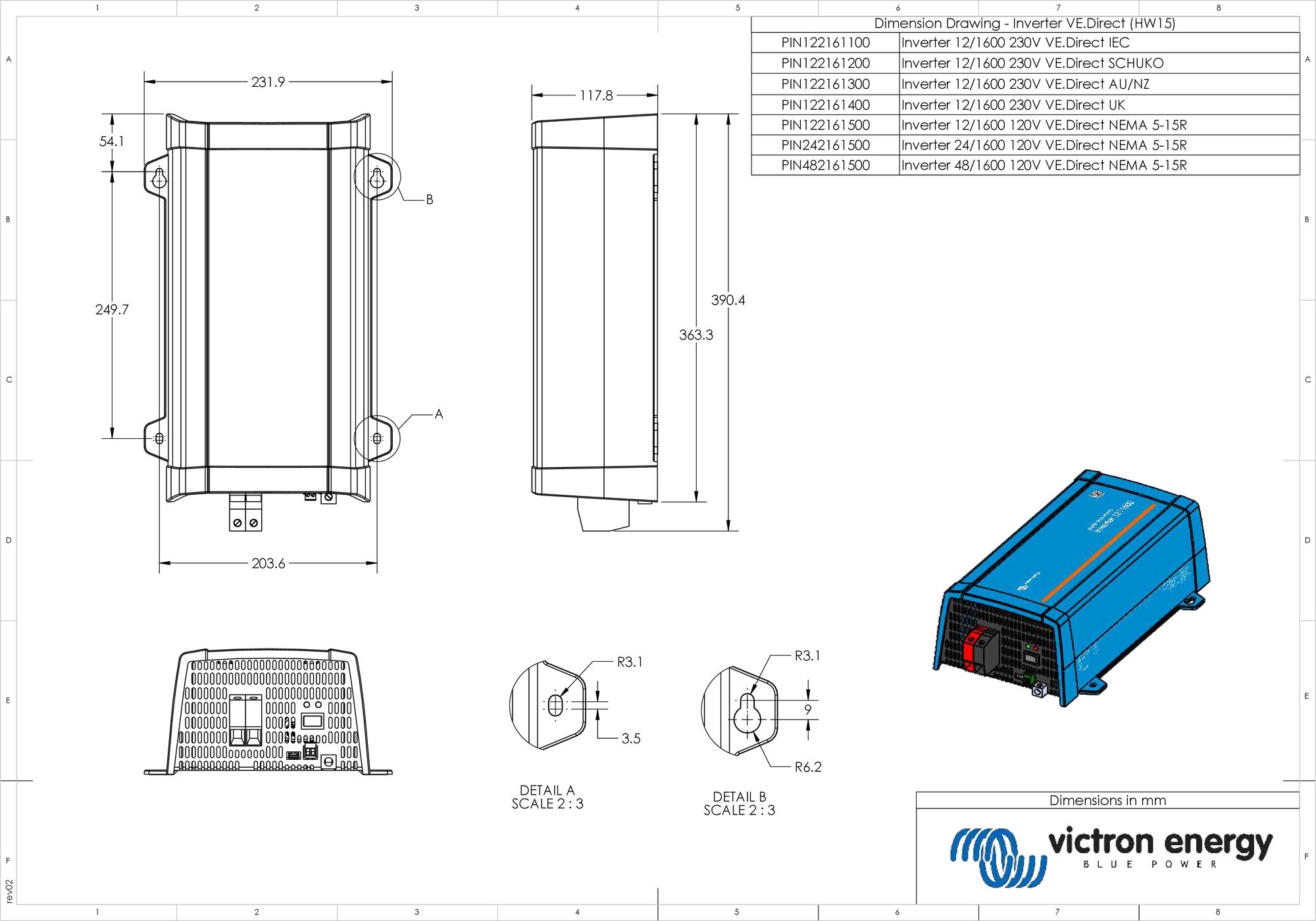

8.10. Dimensions 1600 models
