8. Technical data
8.1. Technical specifications
VM-3P5A | REL200320100 |
|---|---|
VOLTAGE INPUTS | |
Voltage connection | Direct |
Input voltage range L-N | 85 to 265 VAC |
Input voltage range L-L | 150 to 460 VAC |
Frequency | 50/60 Hz |
CURRENT INPUTS | |
Current connection | Via current transformers (CTs are not included and must be sourced separately. Victron Energy does not supply CTs for the VM-3P5A) |
Rated current | 5 A |
COMMUNICATION | |
VE.Can communication port | Two RJ45 connectors (VE.Can terminators included) |
Ethernet communication port | One RJ45 connector, Modbus UDP |
Refresh rate | 100 ms |
POWER SUPPLY | |
Type | Self-power supply via N -L1-L2-L3 |
Switch or circuit breaker | Required as means of a disconnecting device - not included |
Consumption | Consumption 1,85 W / 3,5 VA |
Frequency | 50/60 Hz |
ENCLOSURE | |
Material & colour | Polycarbonate, blue (RAL5012) |
Voltage connection | Screw terminals 1,0 - 2,5mm2 (22 - 12 AWG) |
Current transformer connection | Pluggable screw terminals (included) |
Protection category | IP20 |
Weight | 260 g |
Dimensions | 90 x 71 x 59 mm (3,5 x 2,8 x 2,3 in) |
ENVIRONMENTAL | |
Indoor/outdoor usage | Indoor only |
Operating temperature | From -10 to +55 °C |
Storage temperature | From -20 to +70 °C |
Relative humidity | < 90 % non-condensing |
Altitude | 2000 m (6562 ft) |
Mains supply voltage fluctuations | ±0,1 Vin |
Overvoltage category | Cat. III |
Pollution degree | 2 |
STANDARDS | |
Safety | EN-IEC 61010-1 |

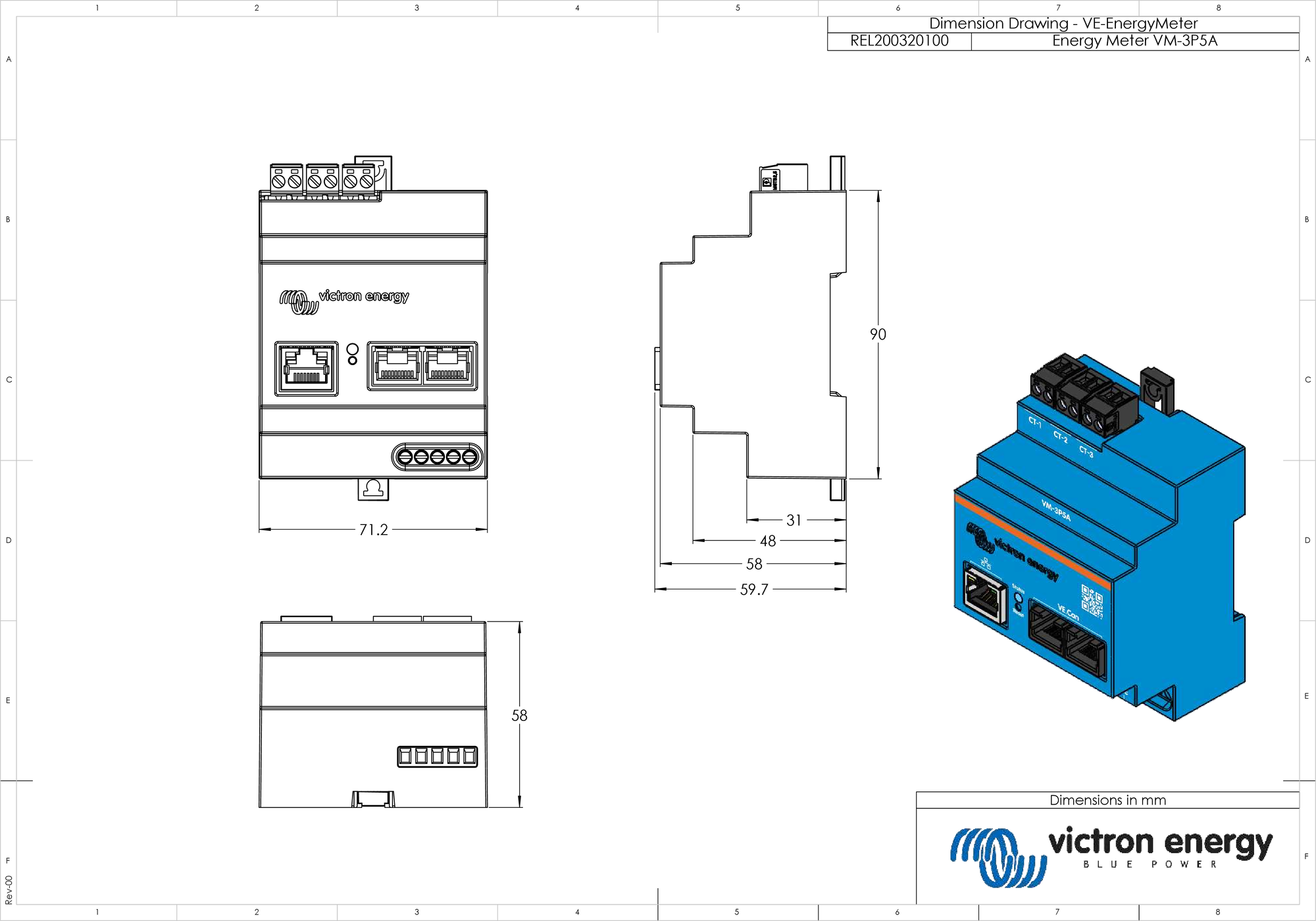

8.2. Enclosure dimensions
