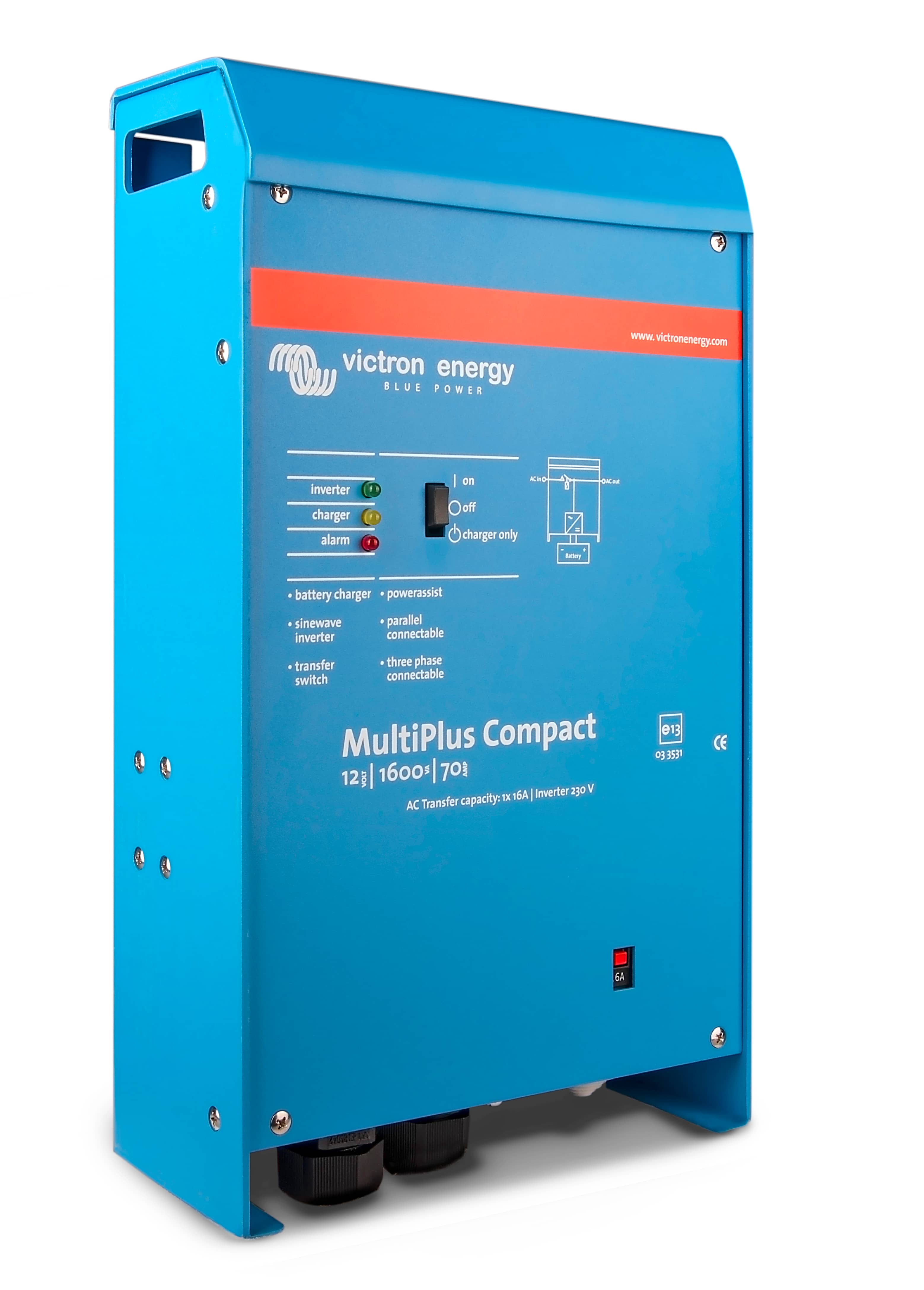

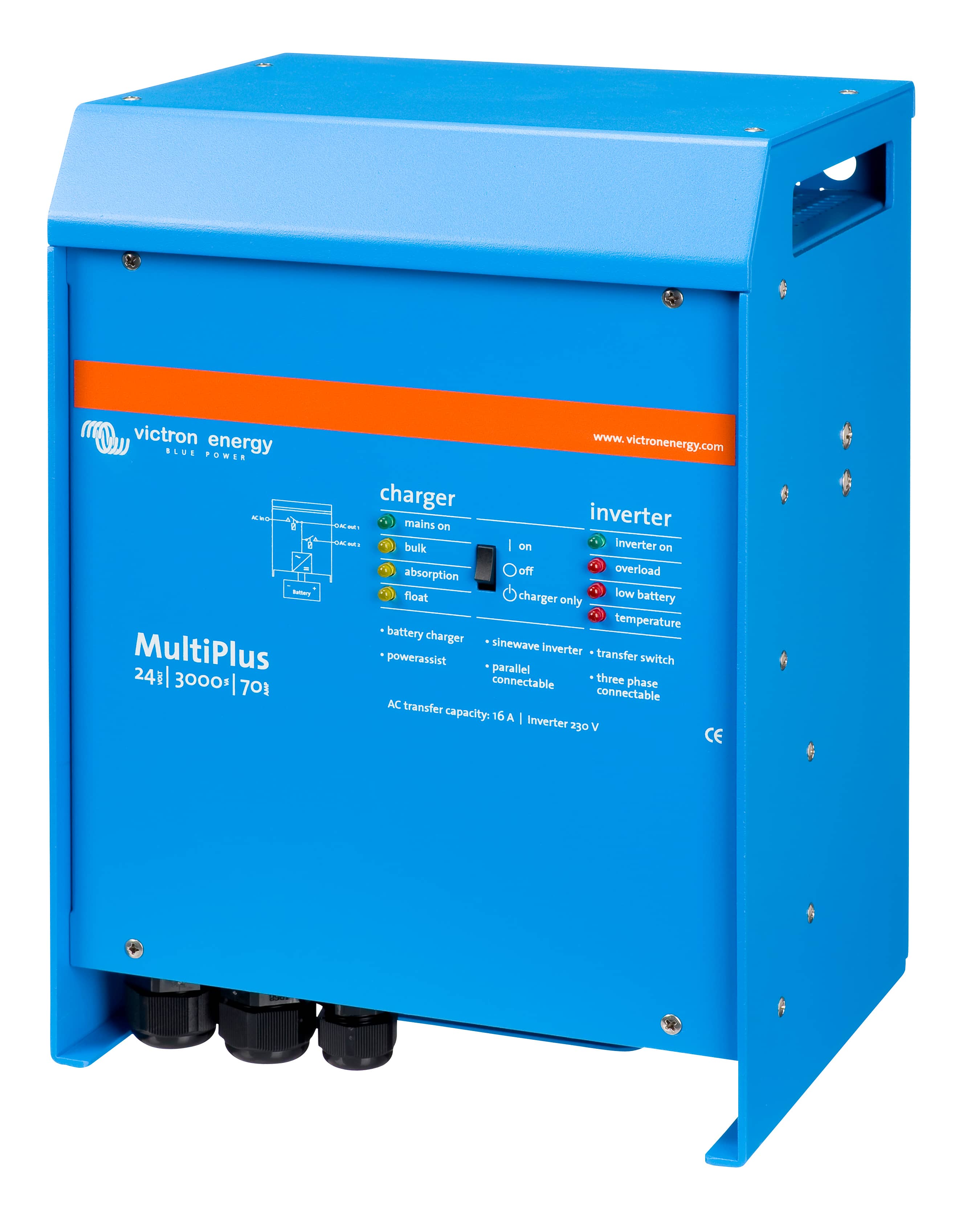

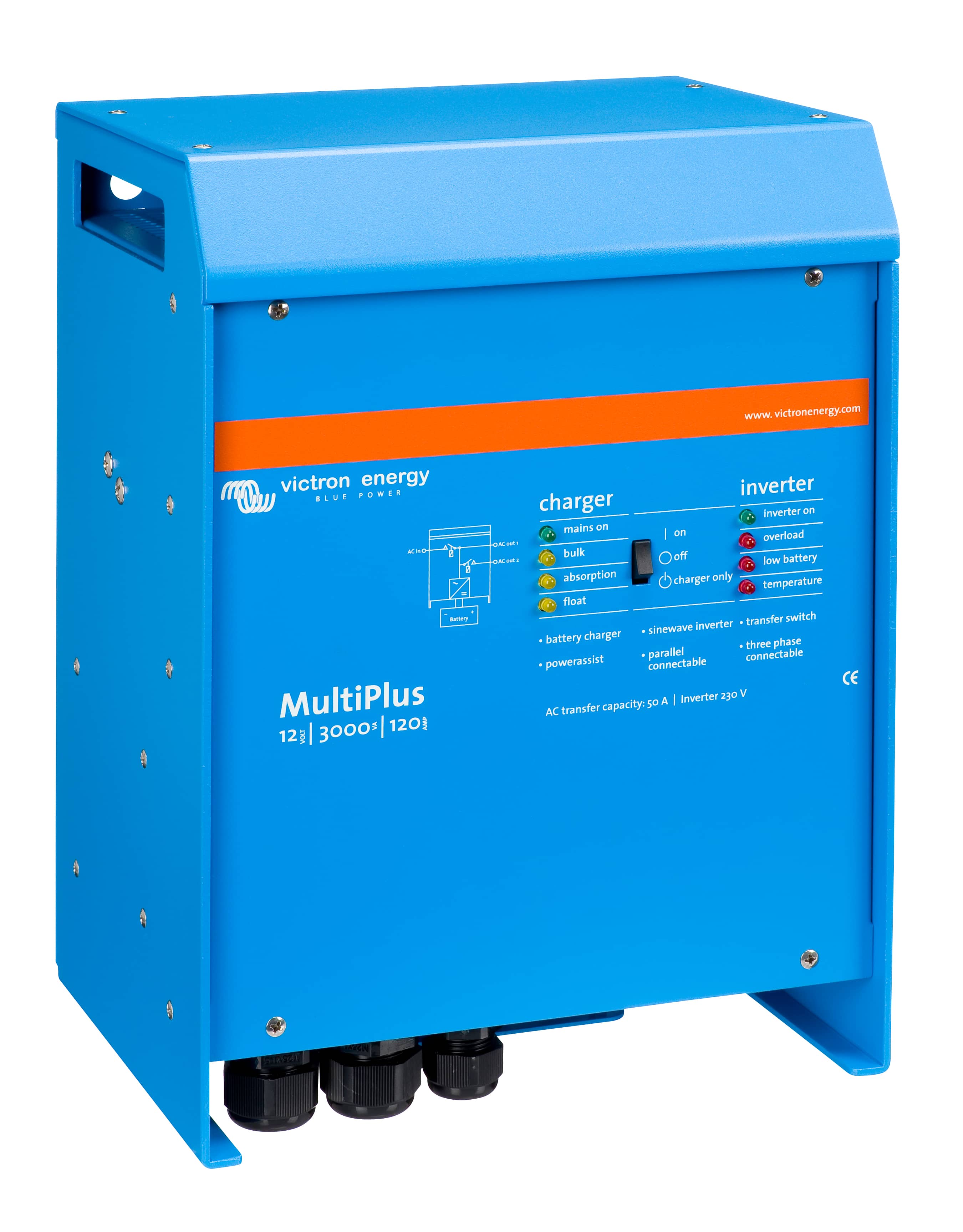

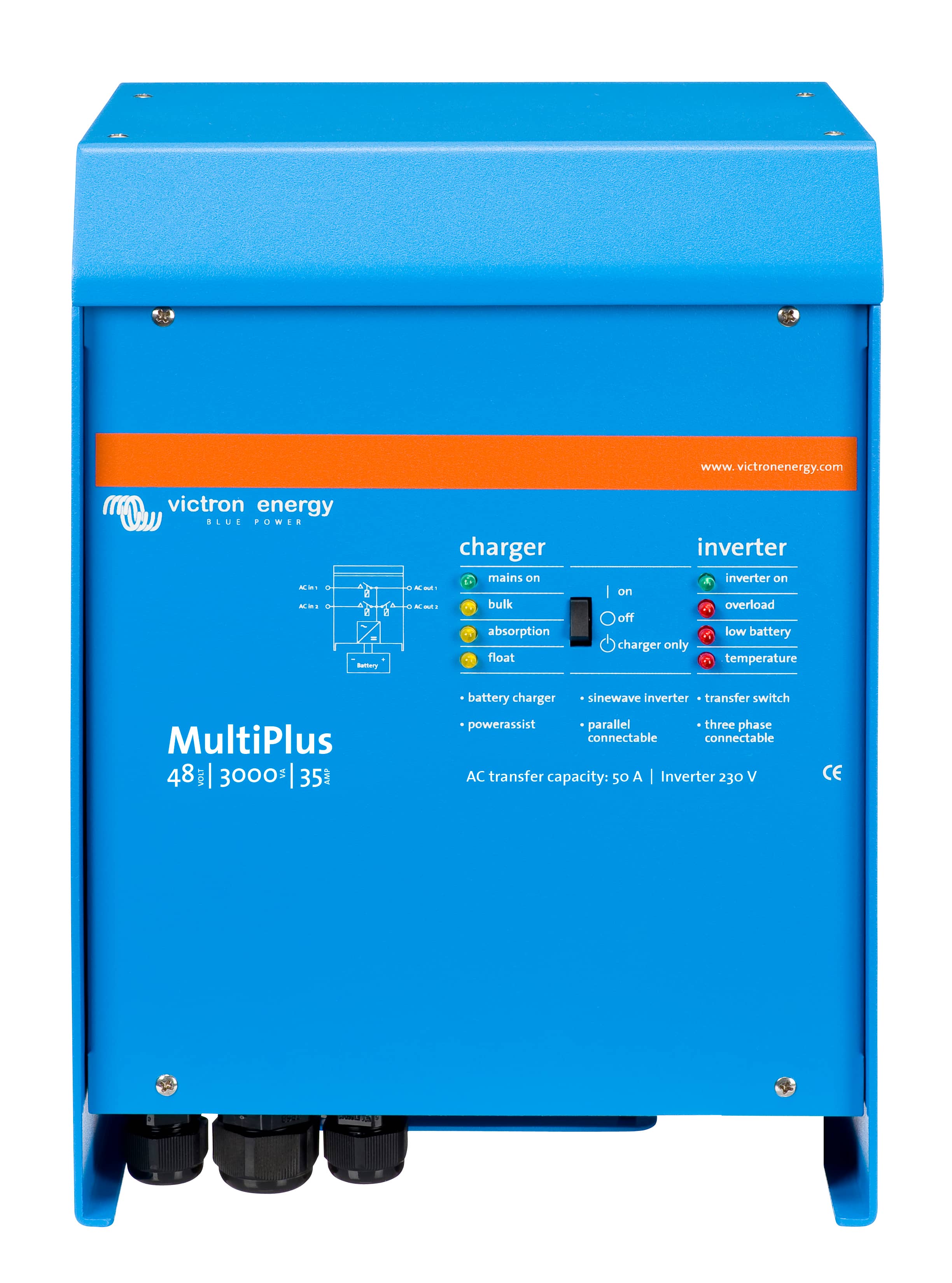

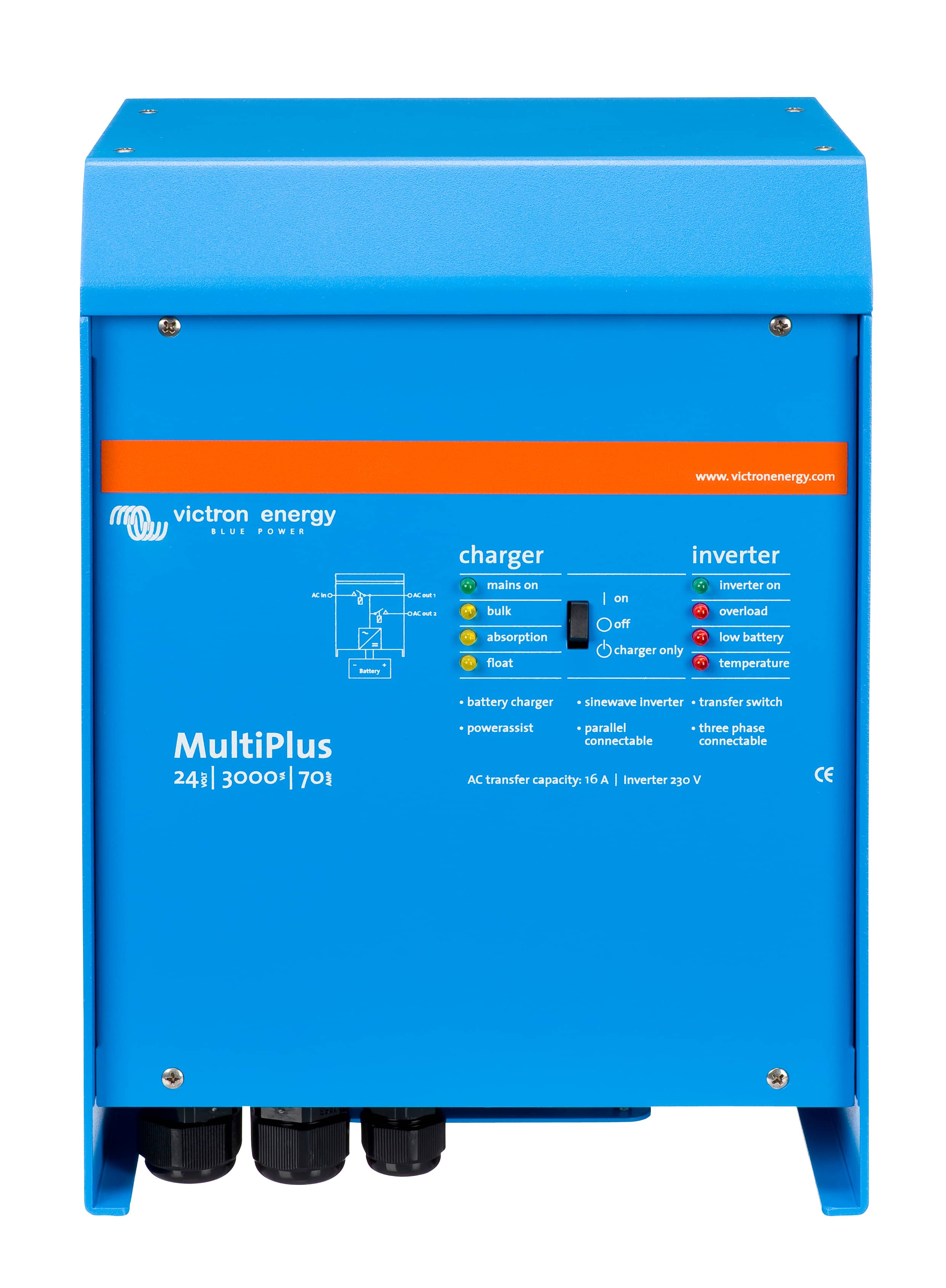

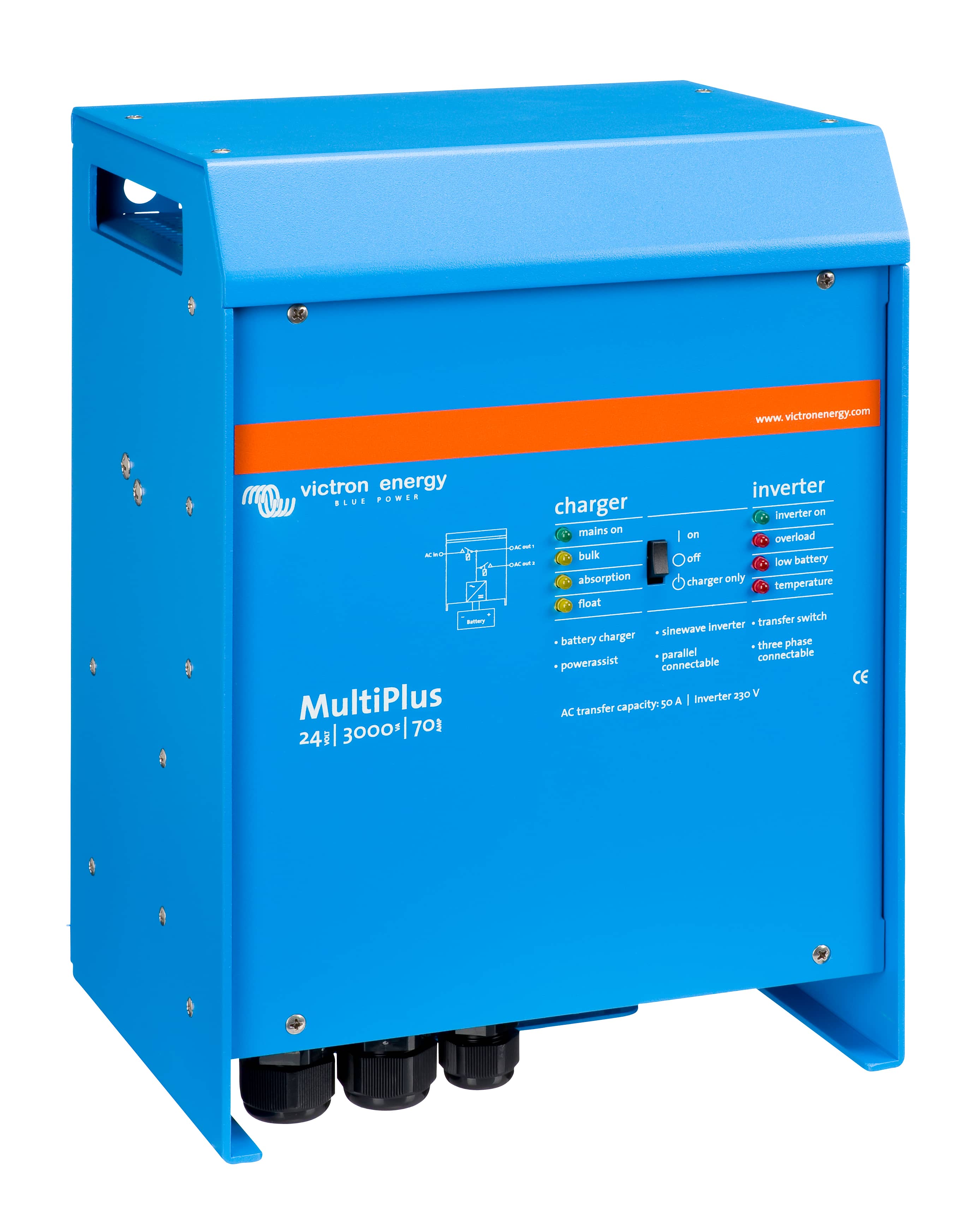

Phoenix MultiPlus 12 / 24 / 48 Volt<BR>Phoenix MultiPlus Compact 12 / 24 Volt
Phoenix MultiPlus 12 / 24 / 48 Volt<BR>Phoenix MultiPlus Compact 12 / 24 Volt

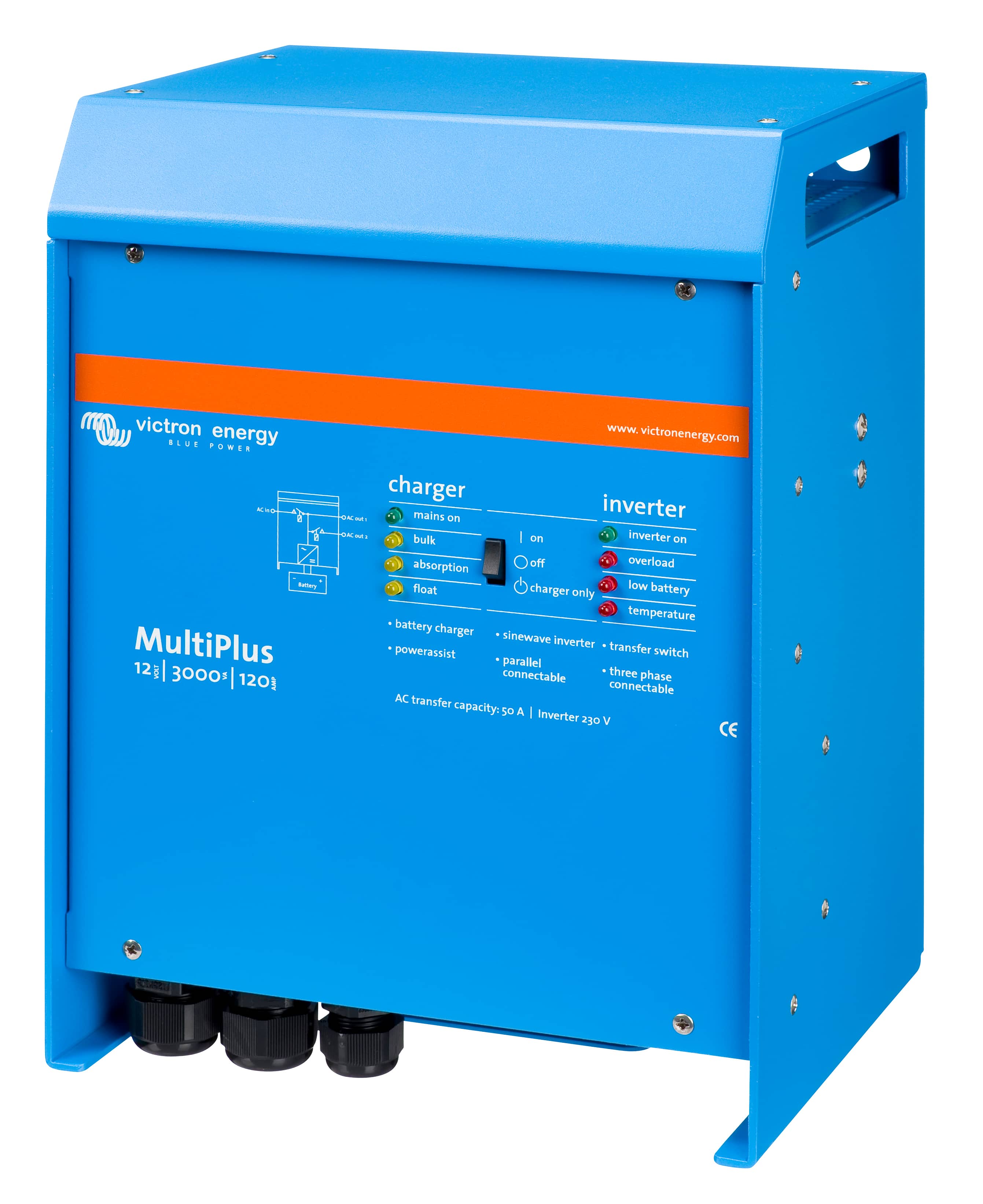

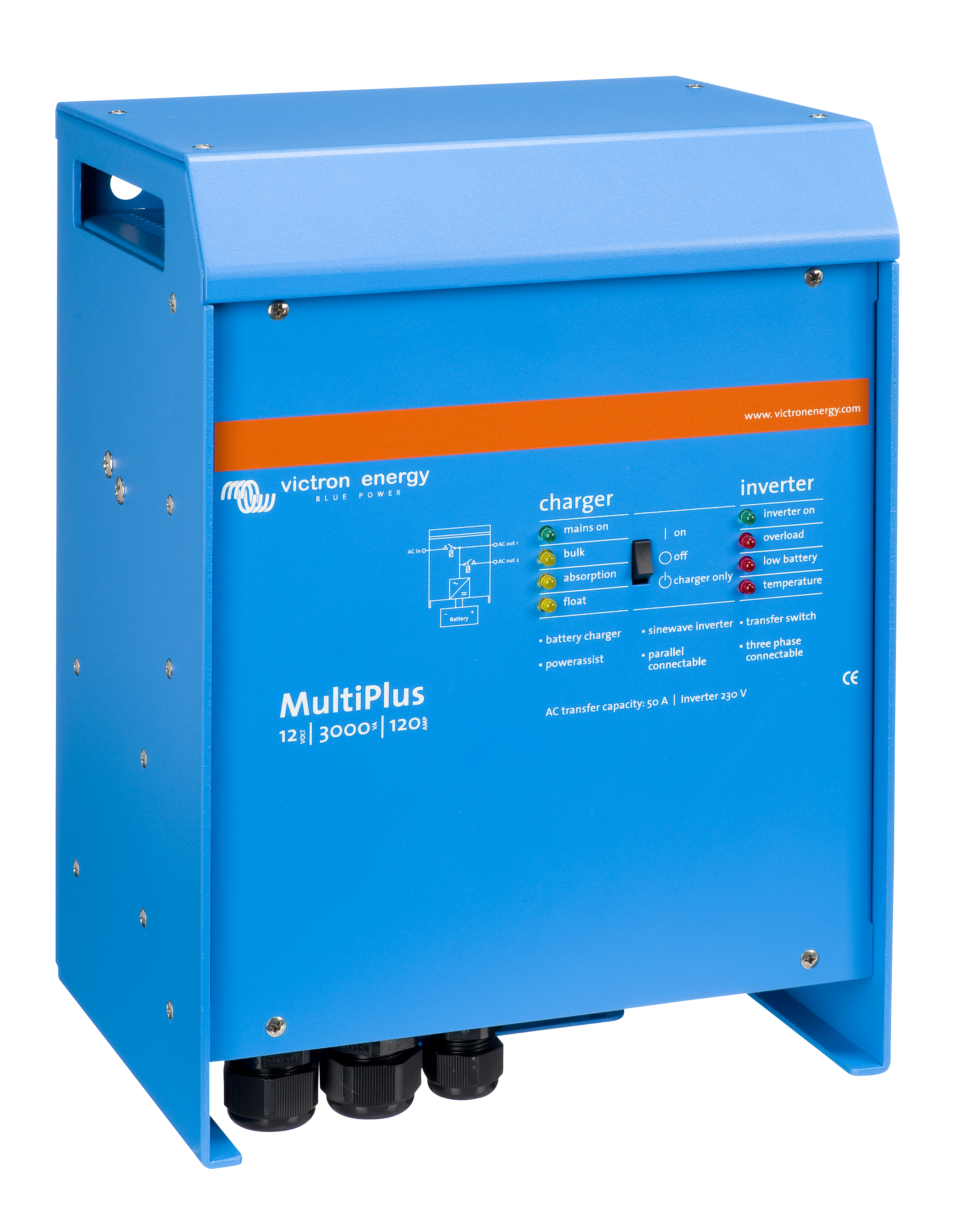

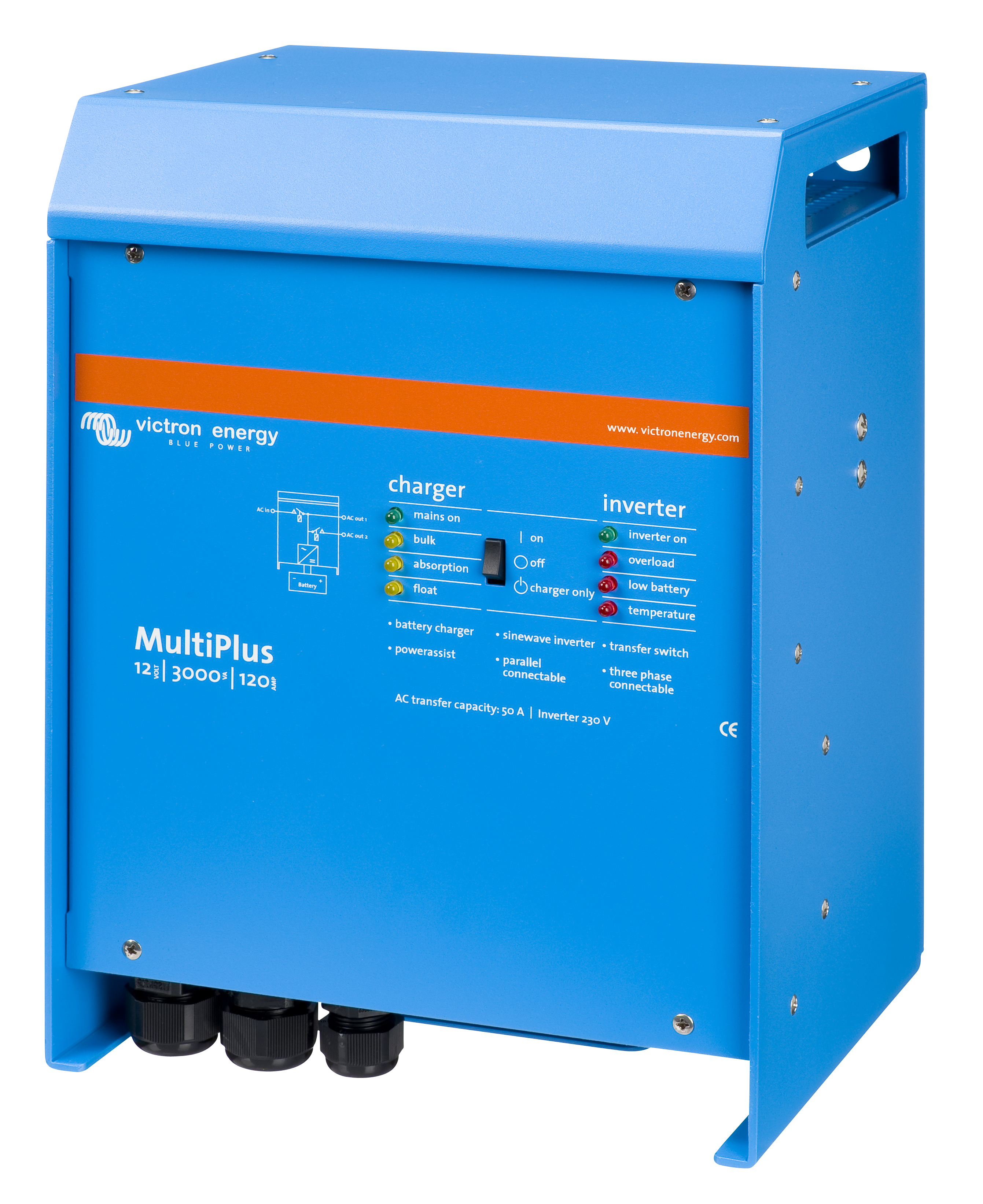

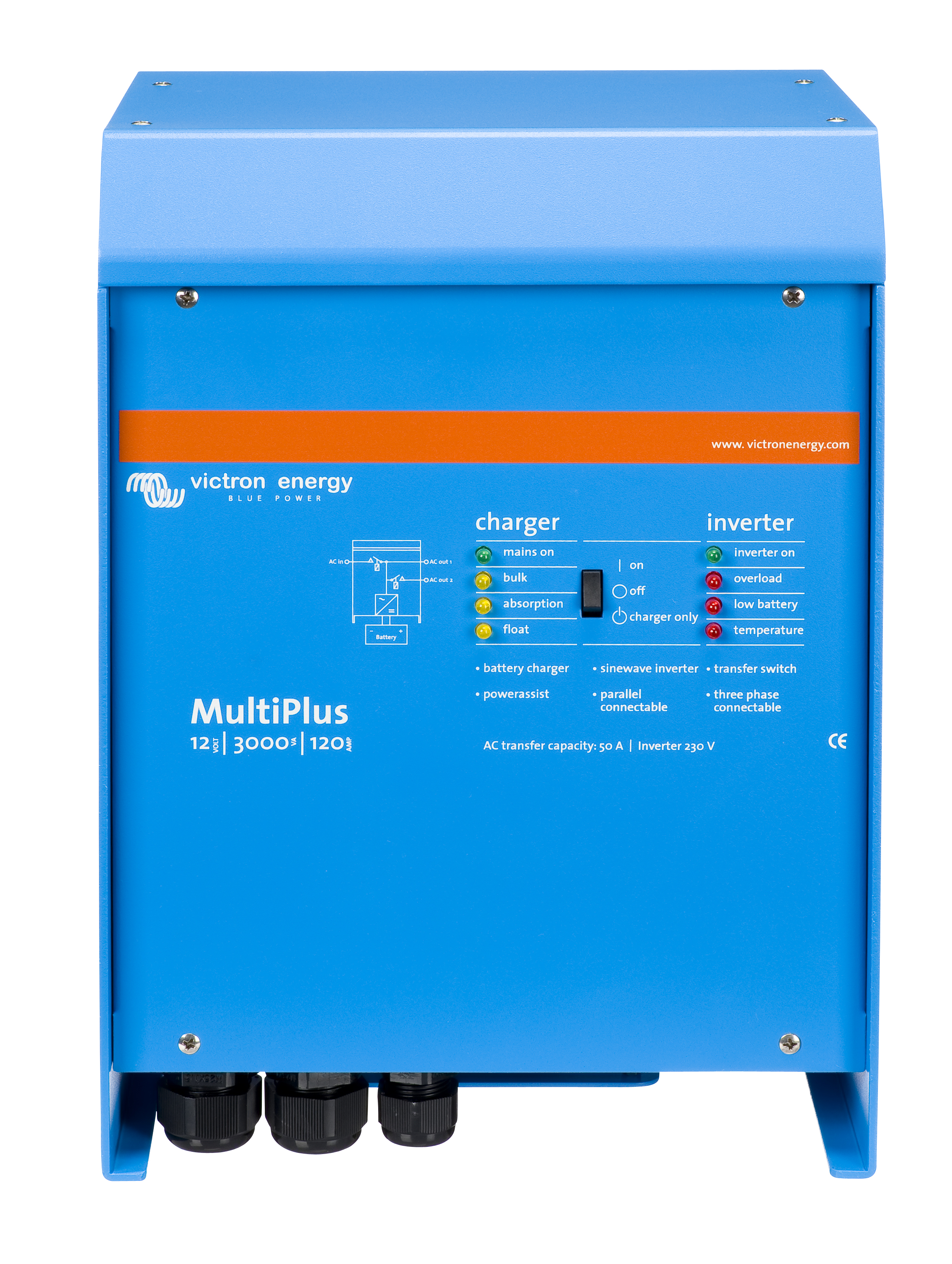

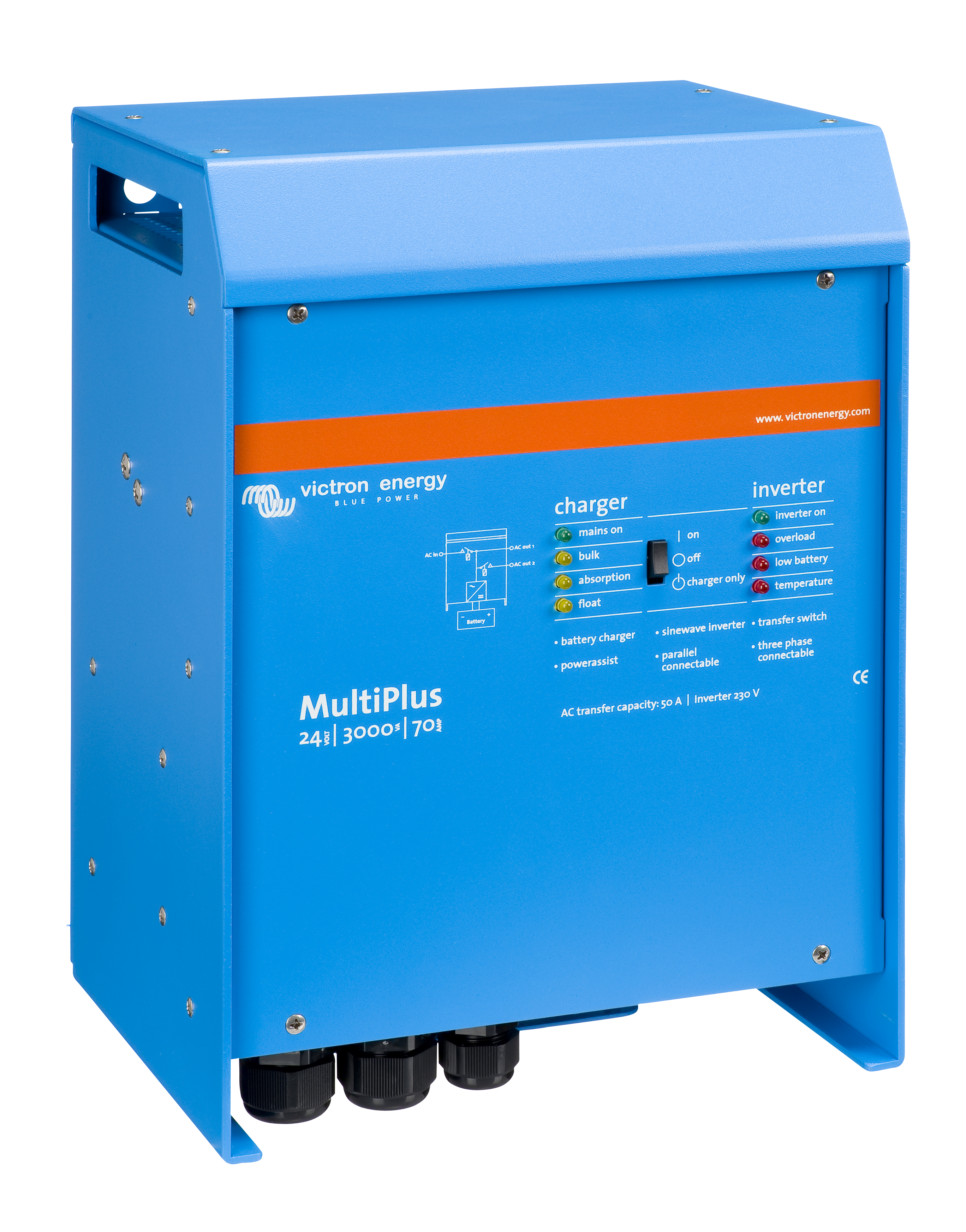

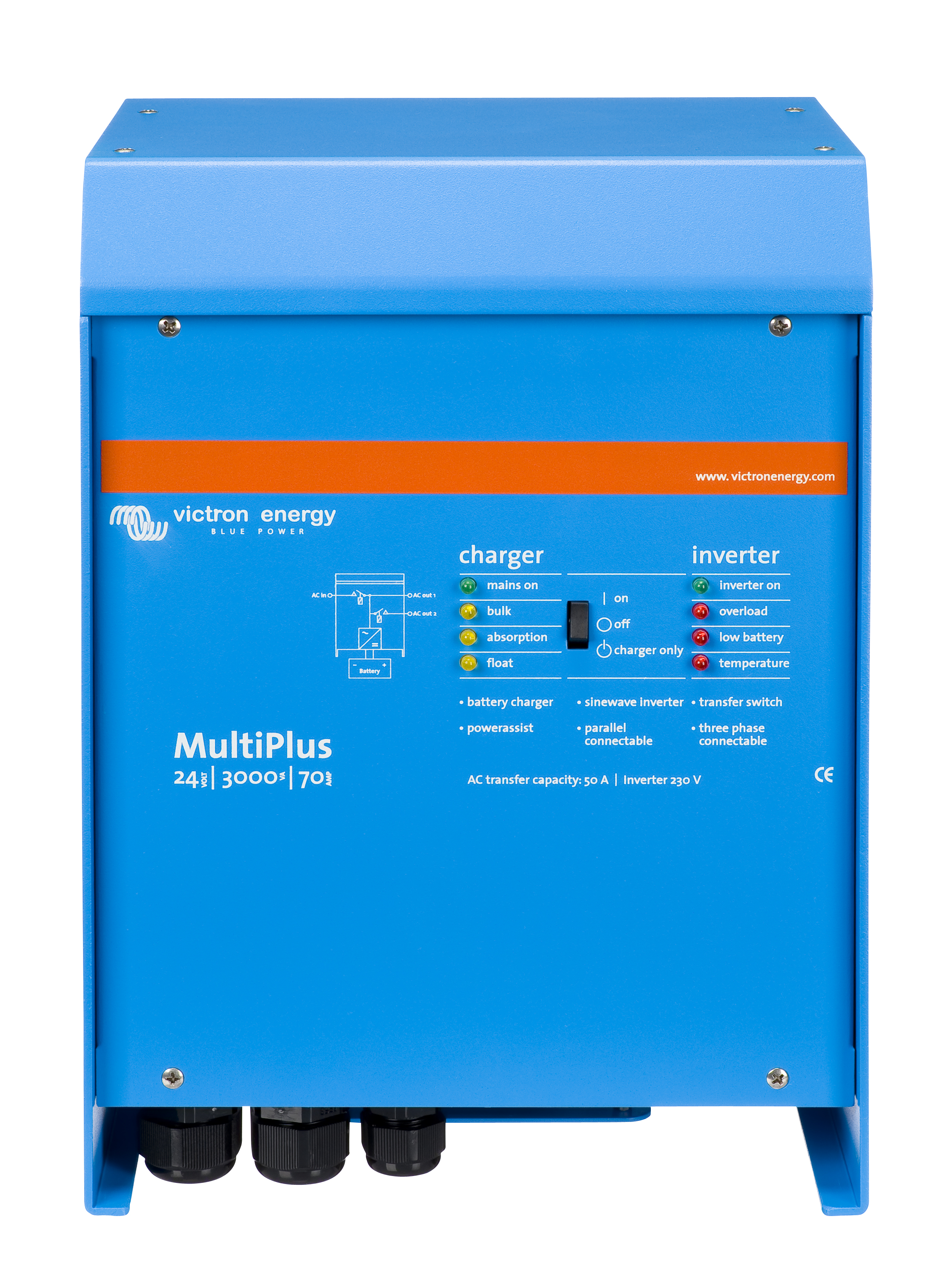

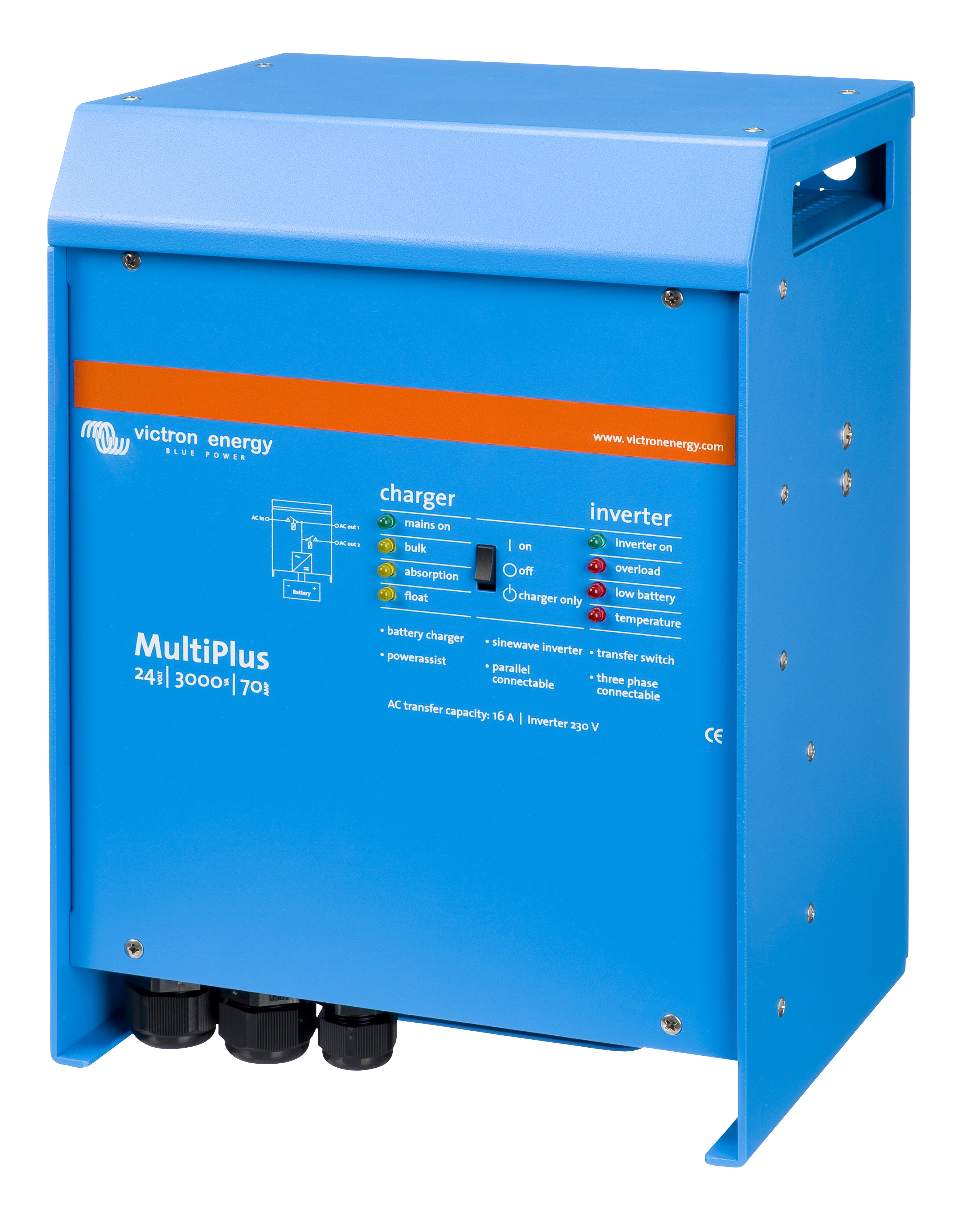

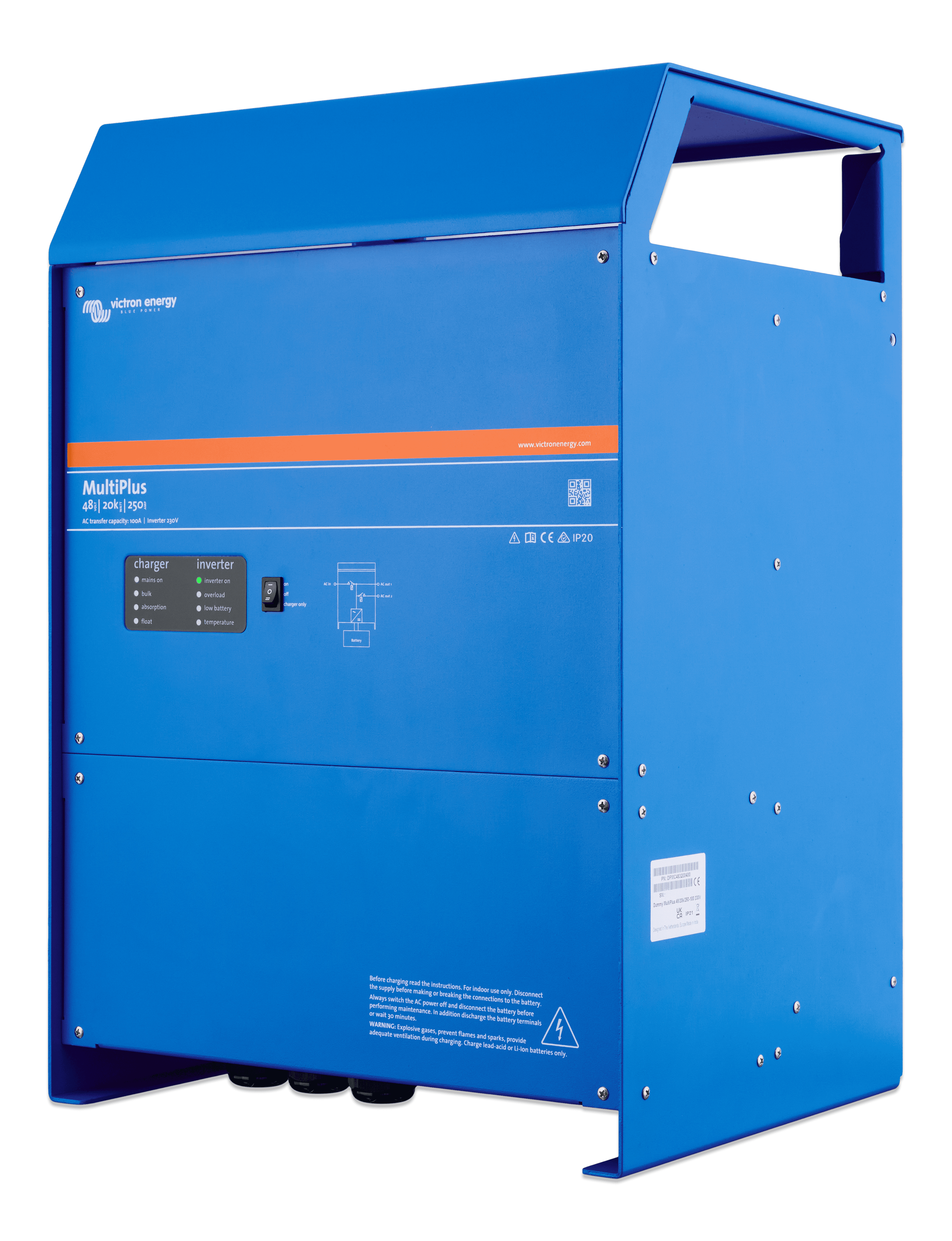

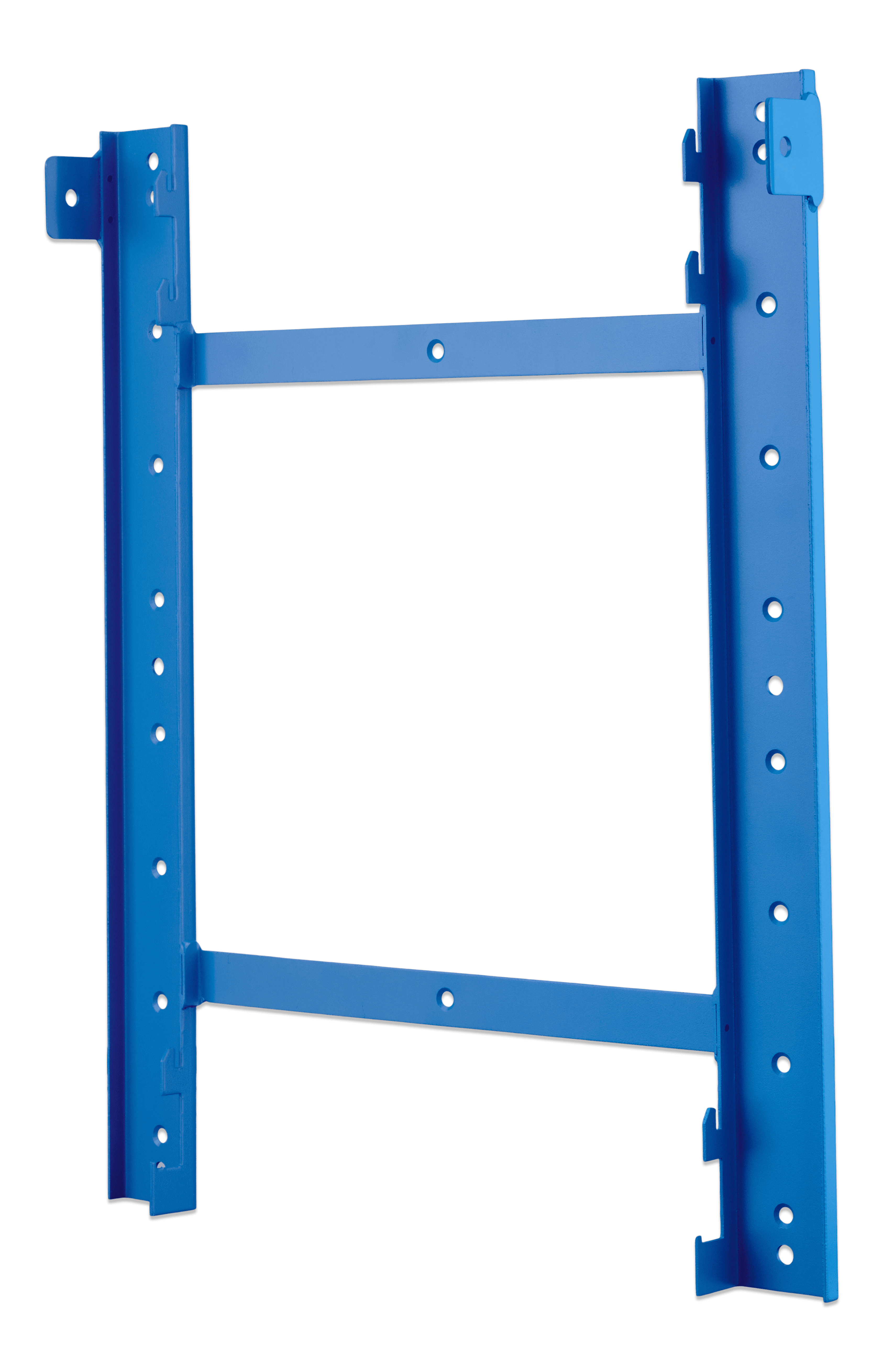

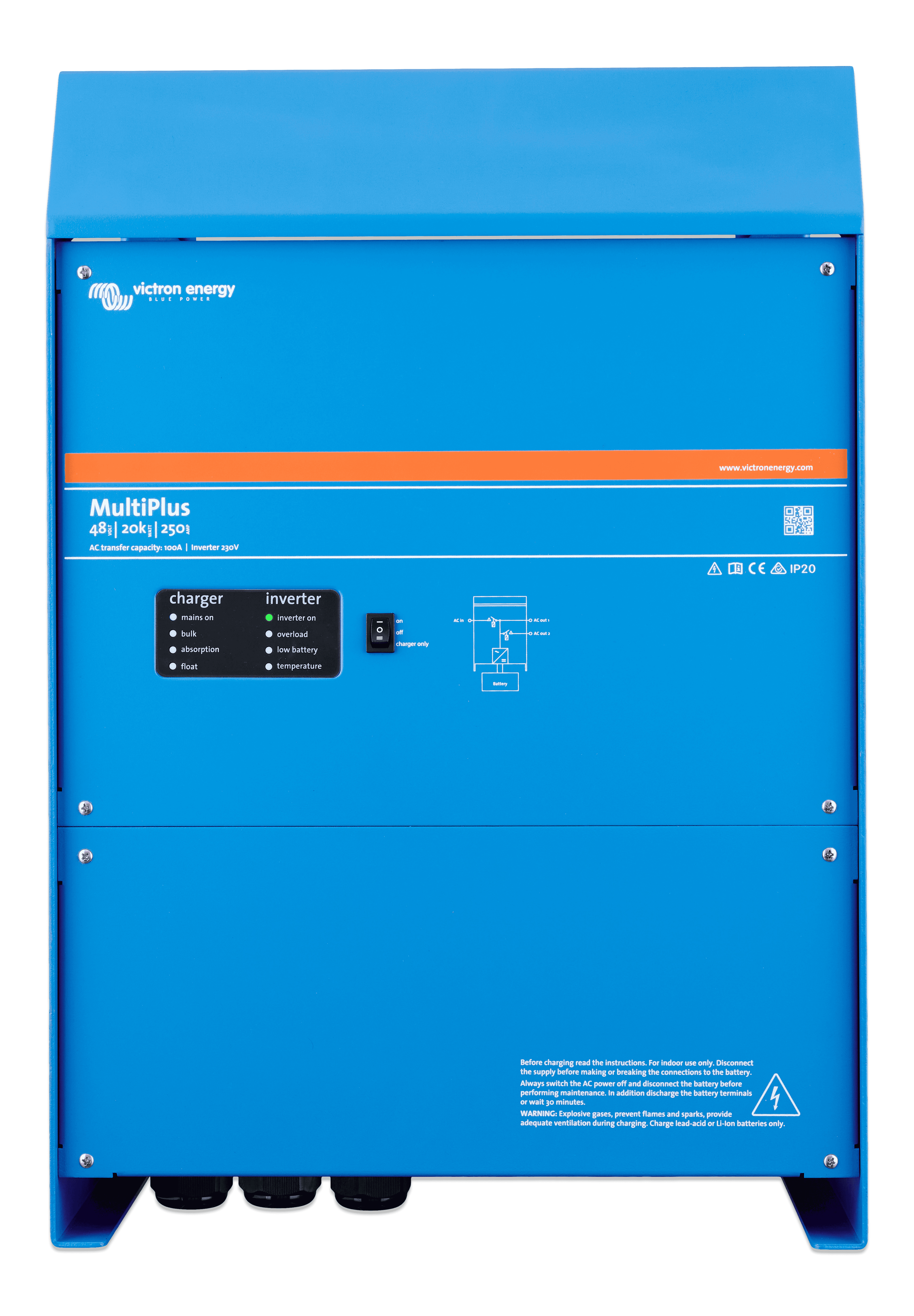

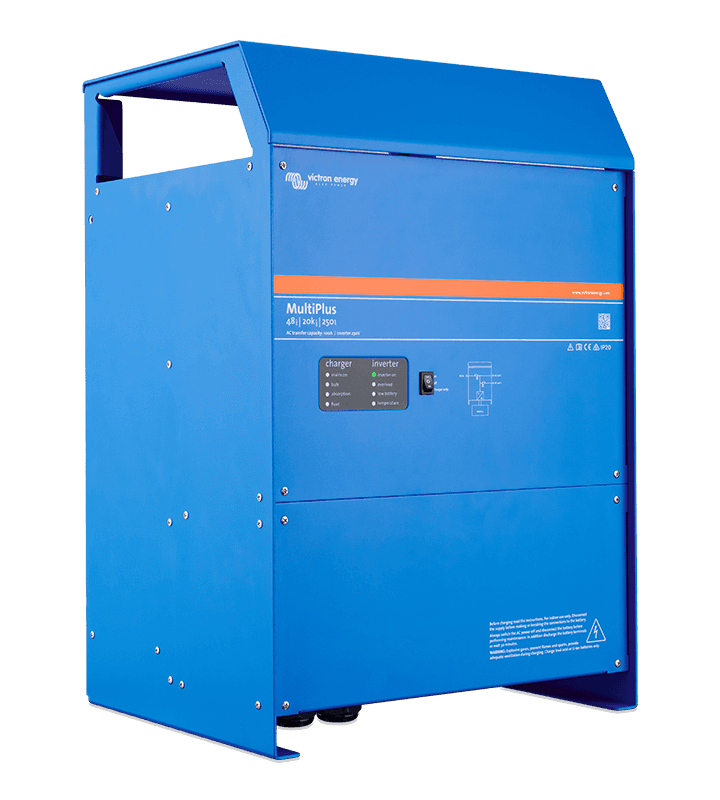

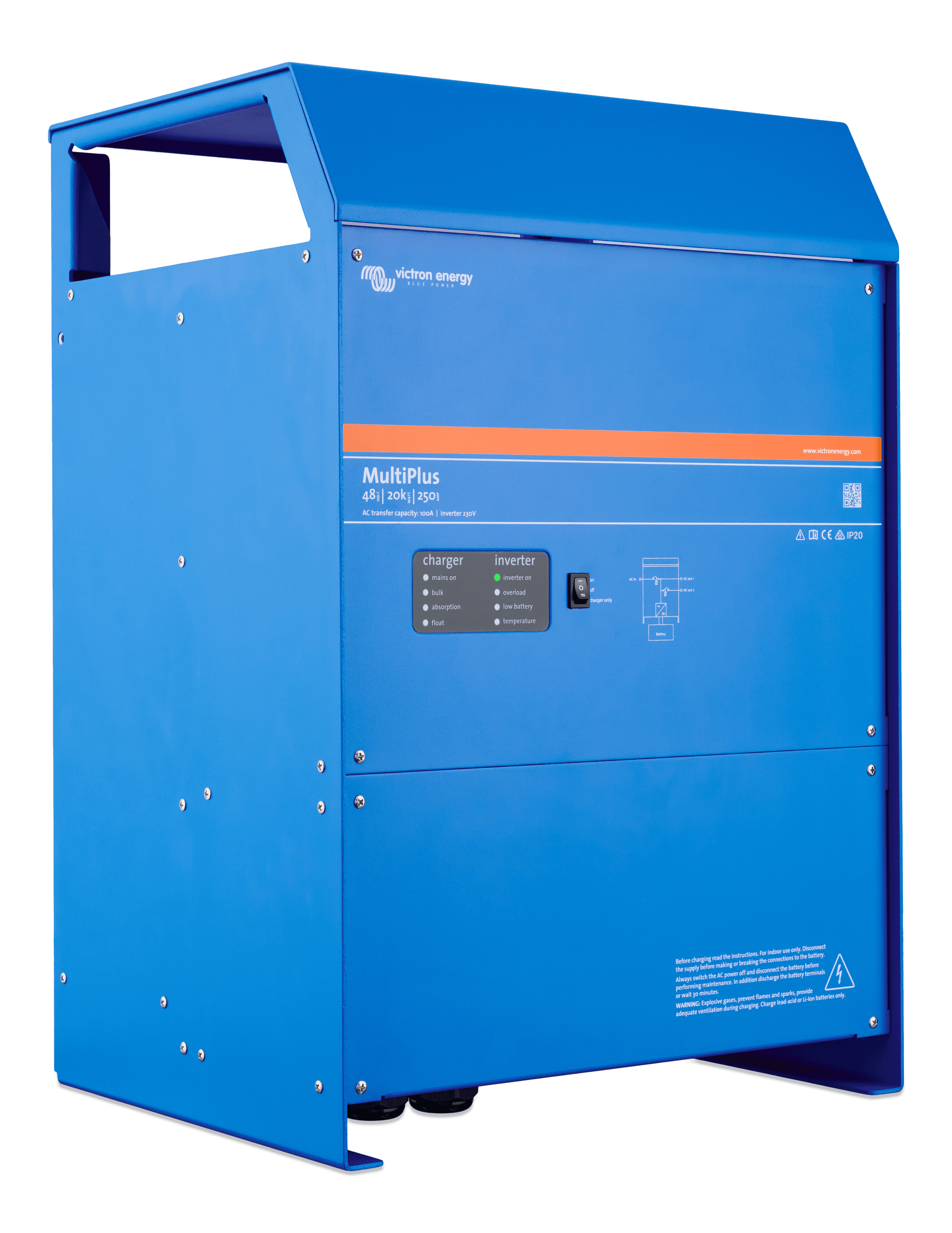

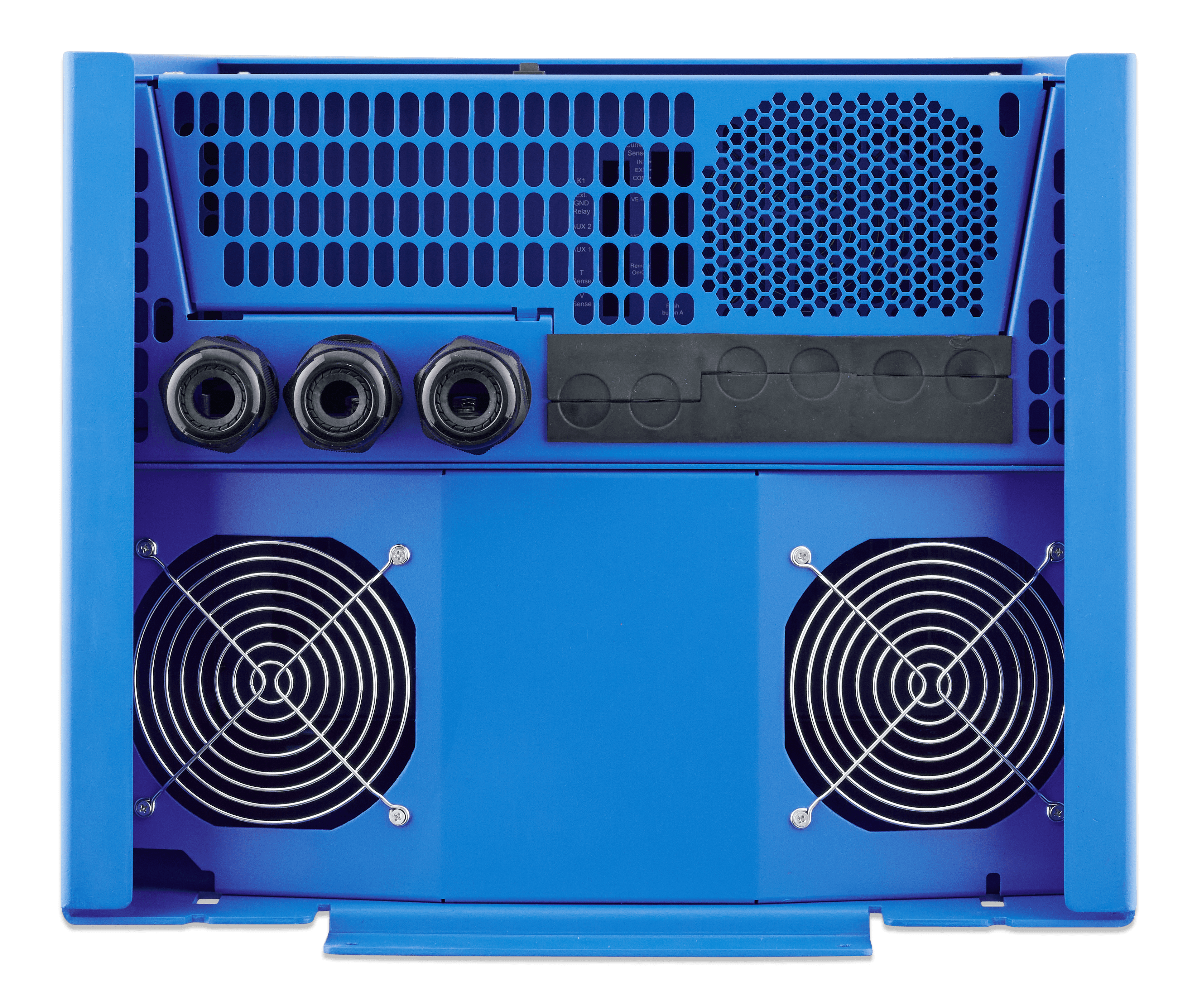

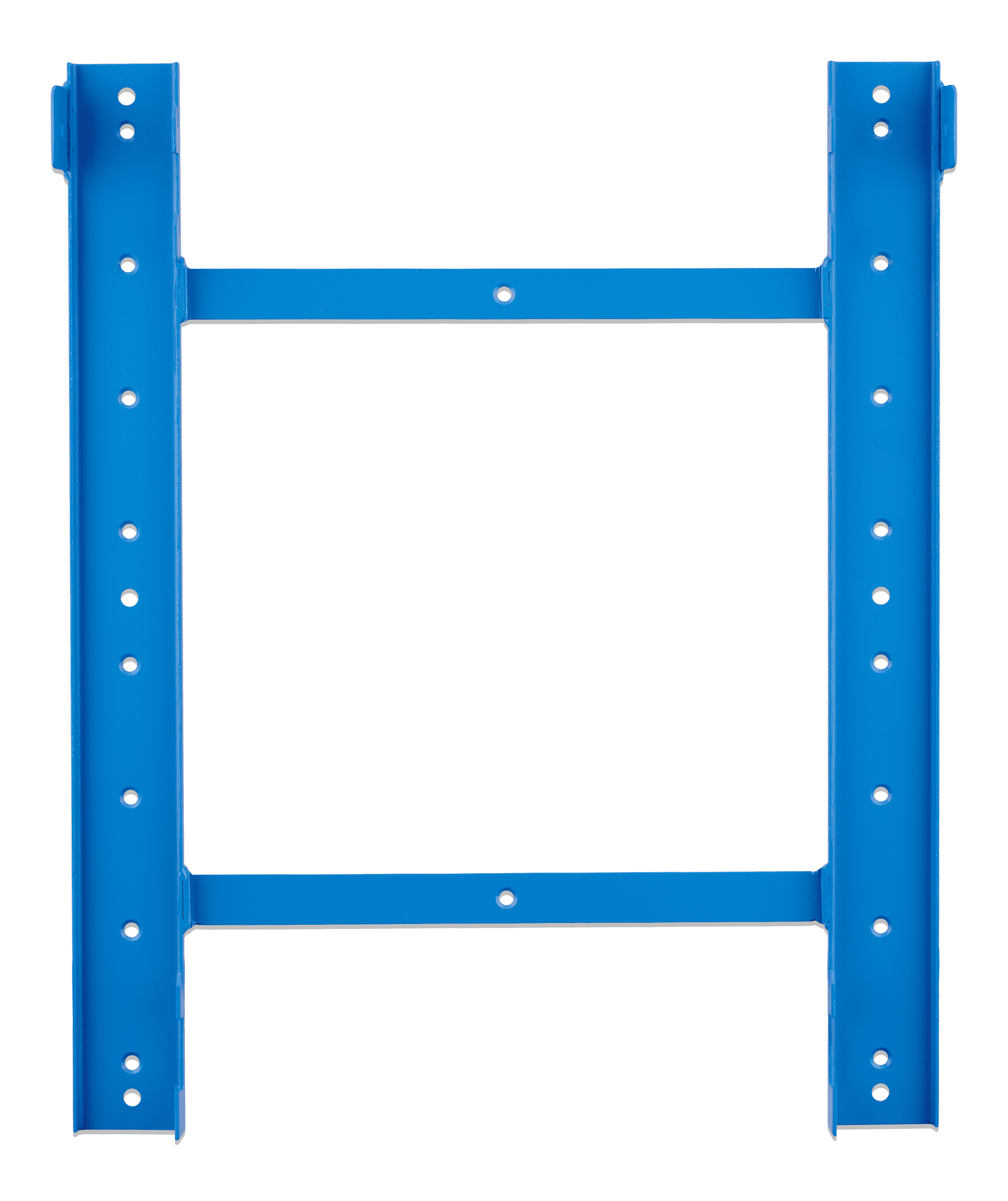

Phoenix MultiPlus 12 / 24 / 48 Volt

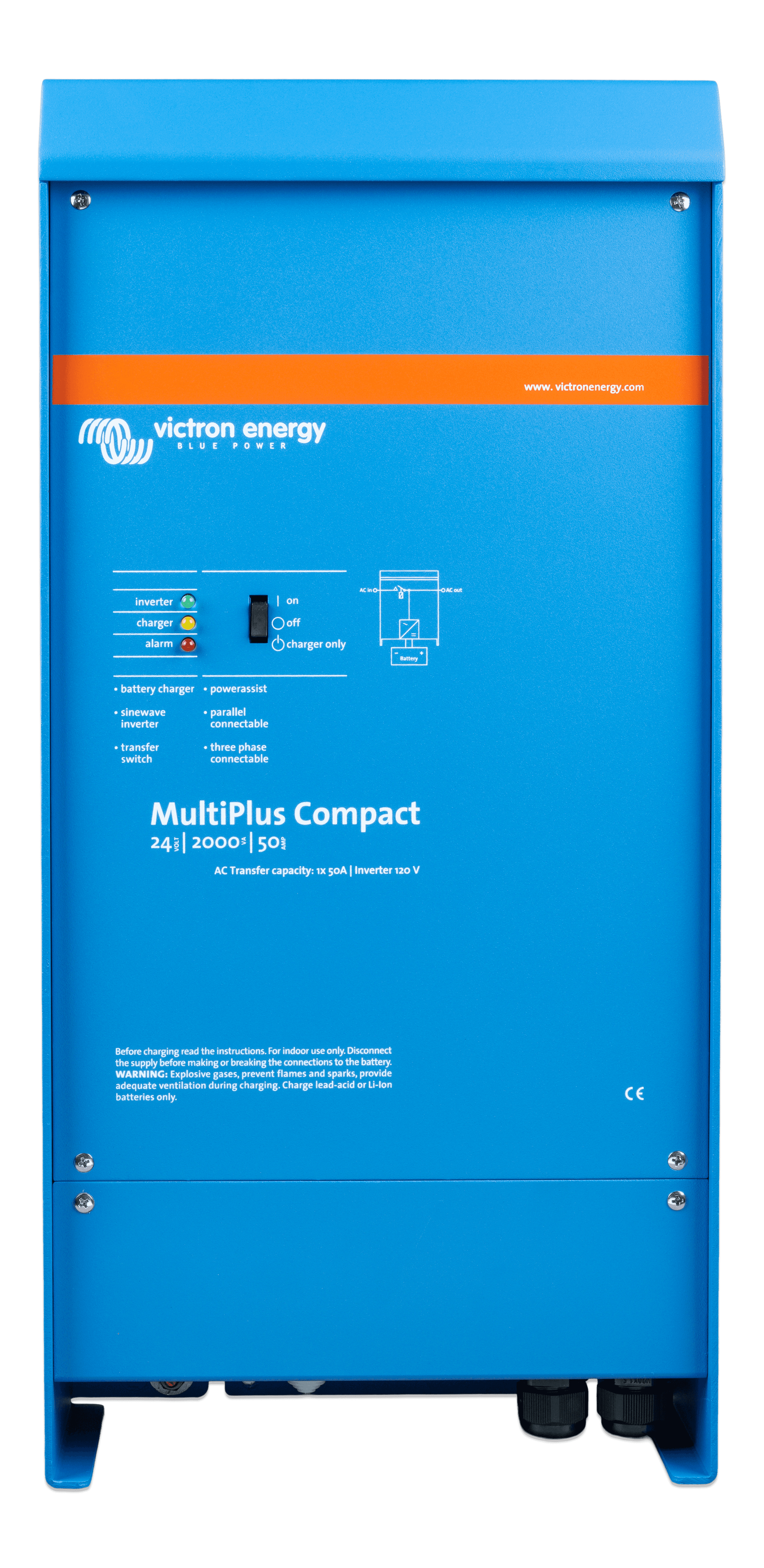

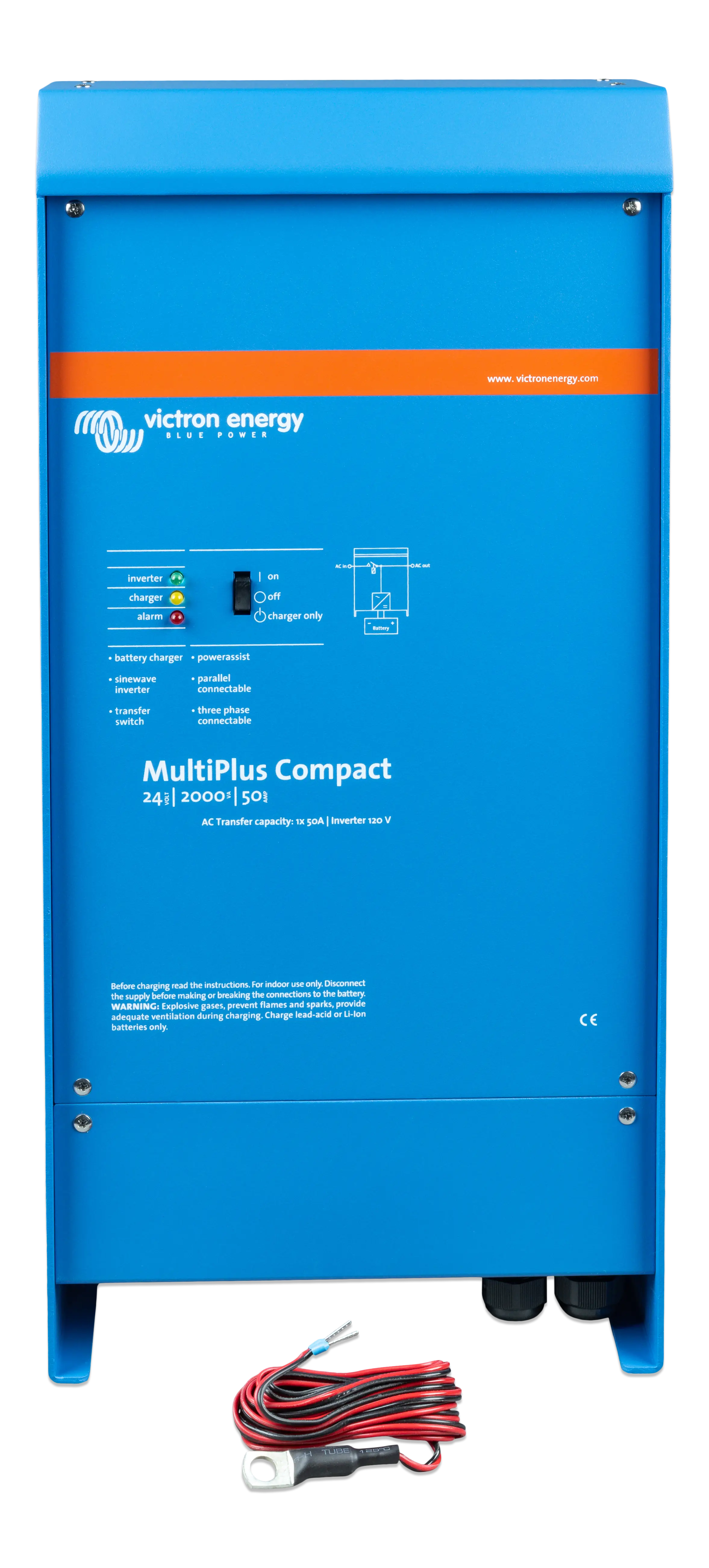

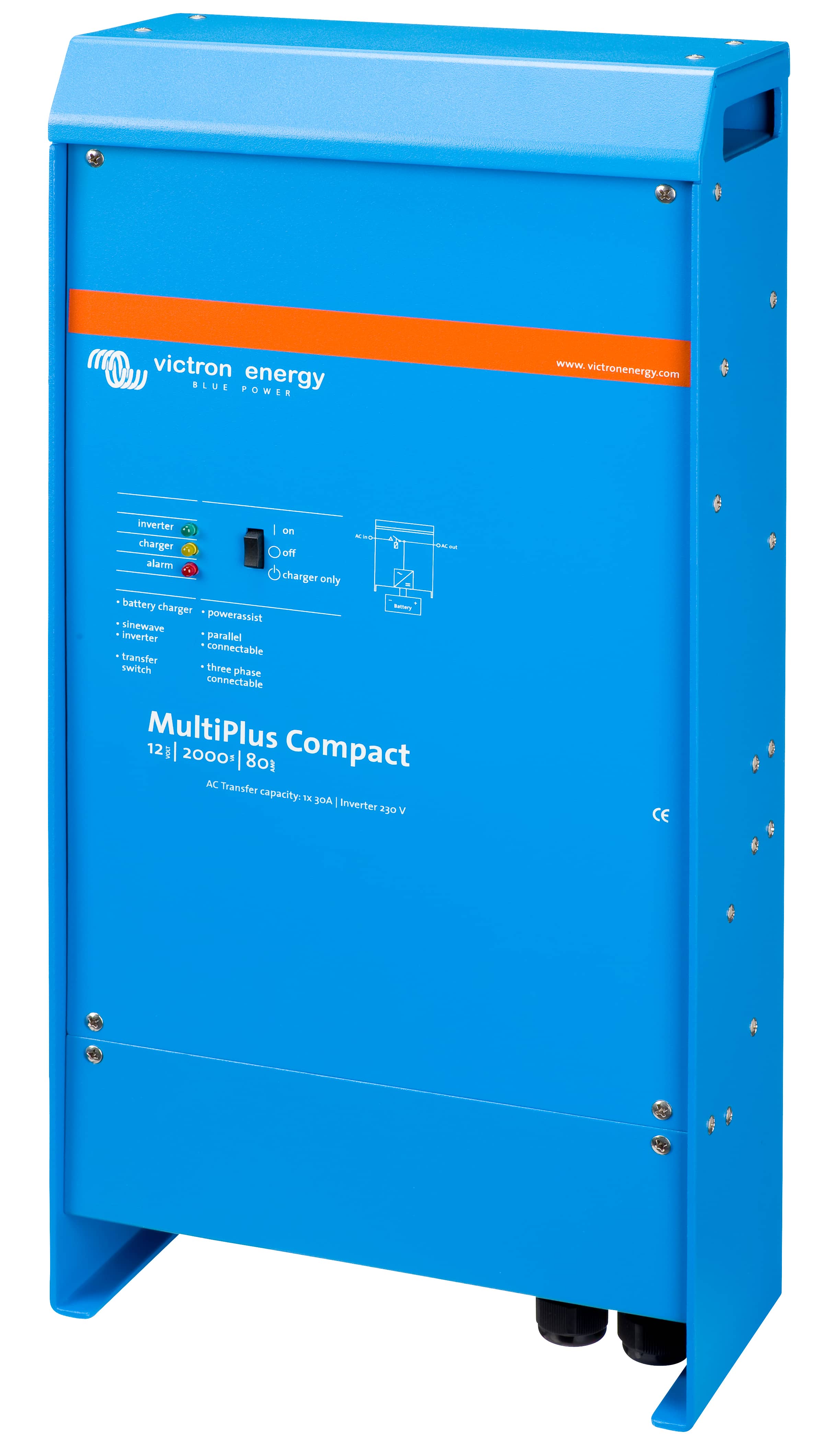

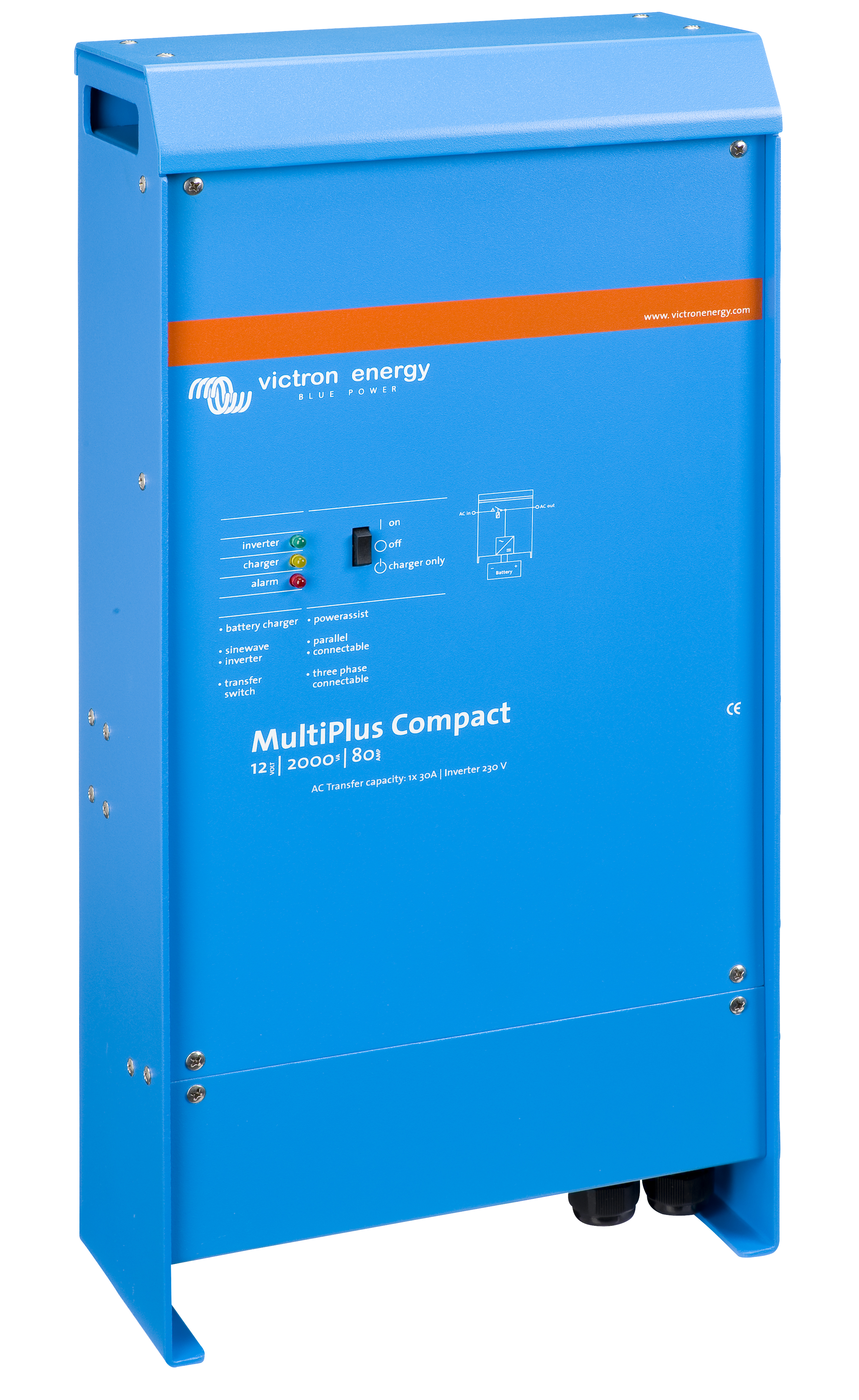

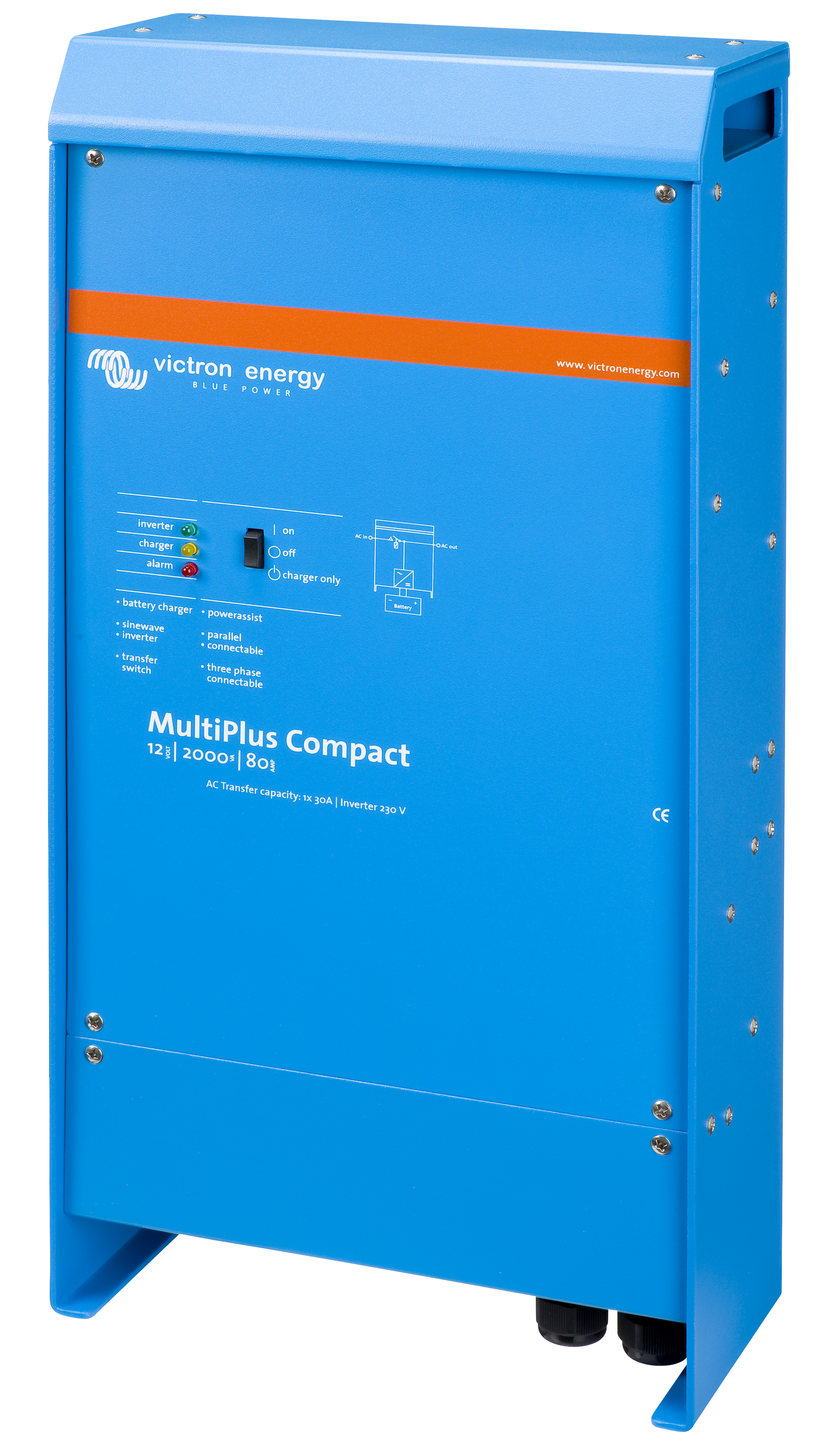

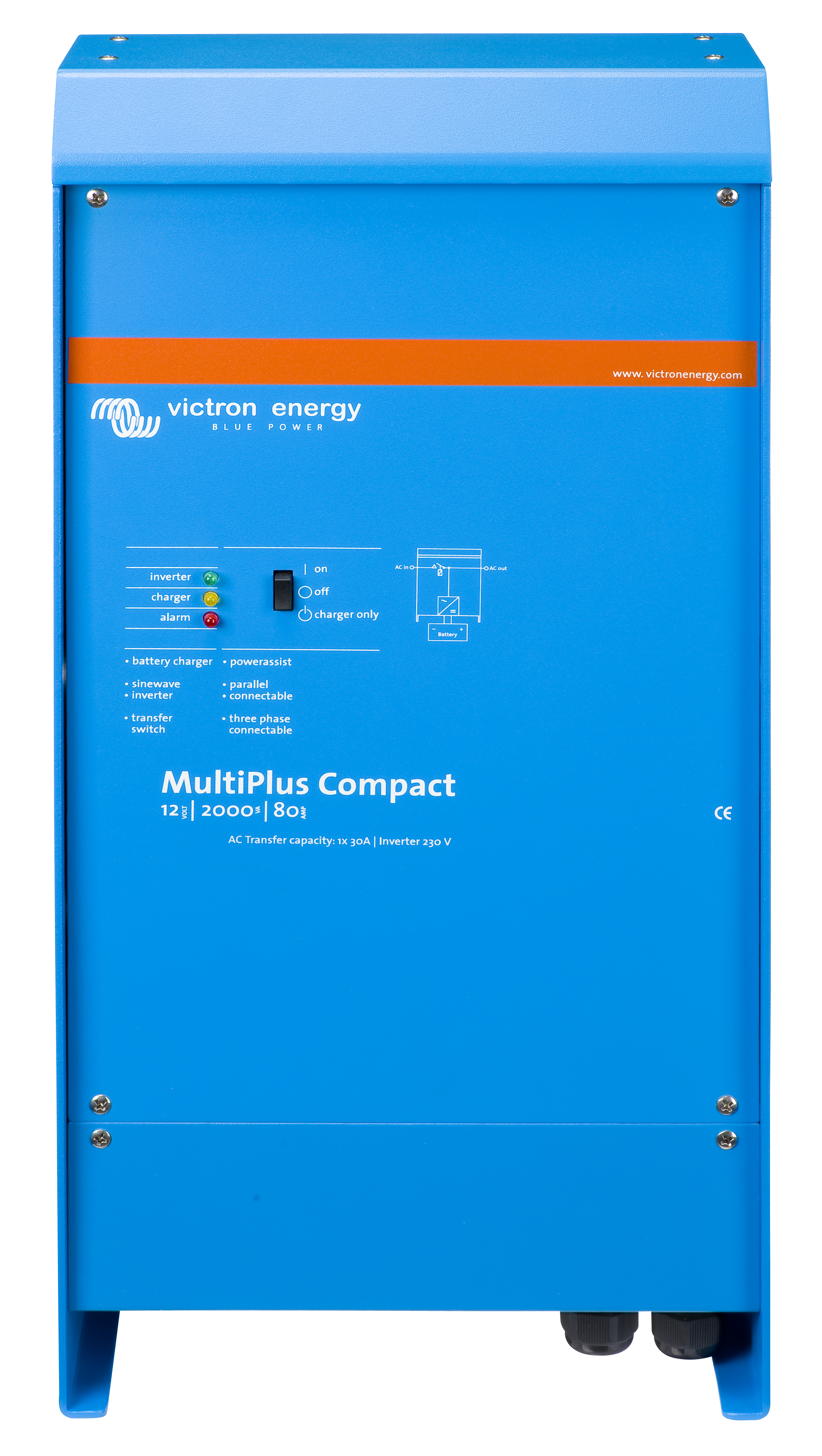

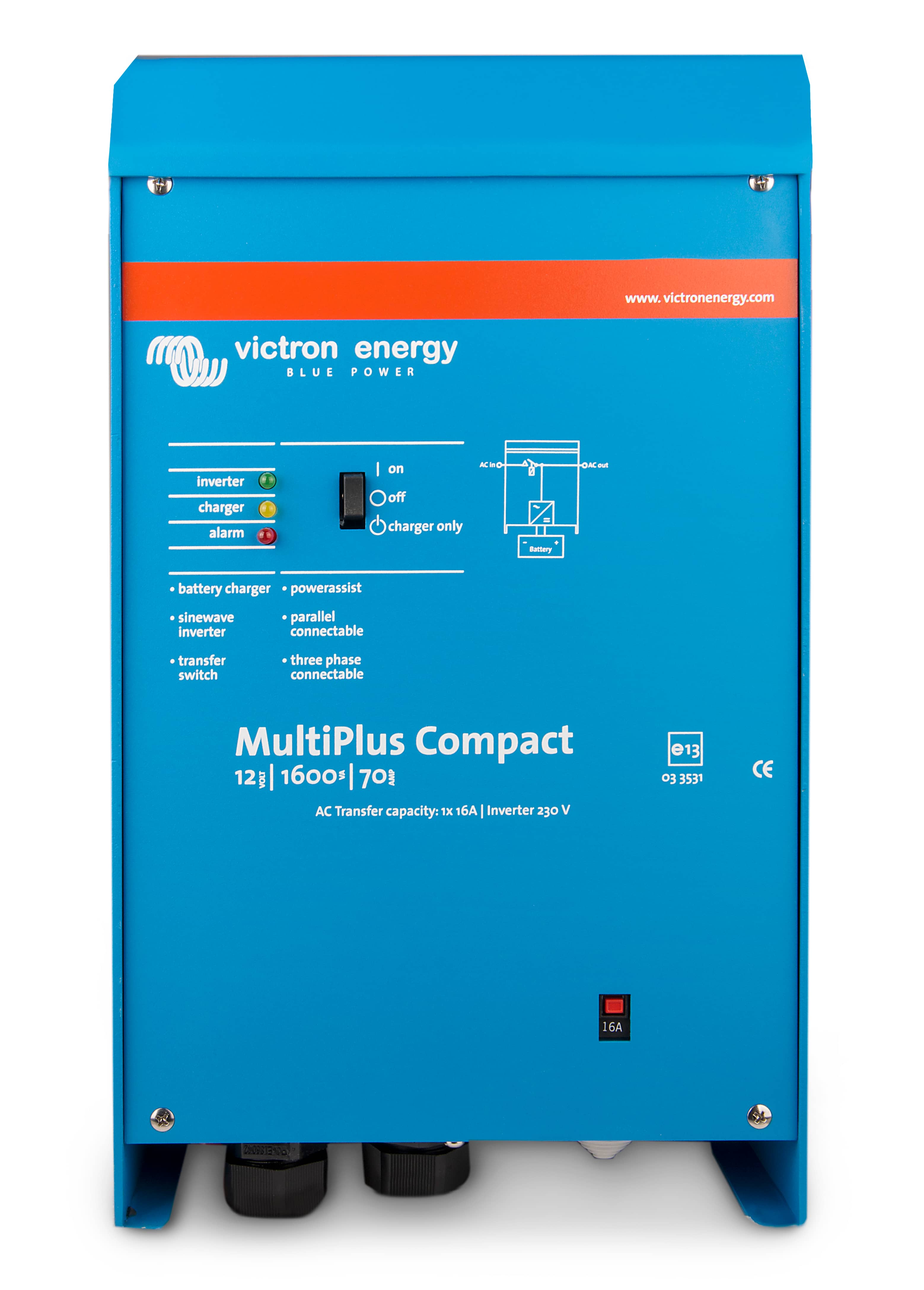

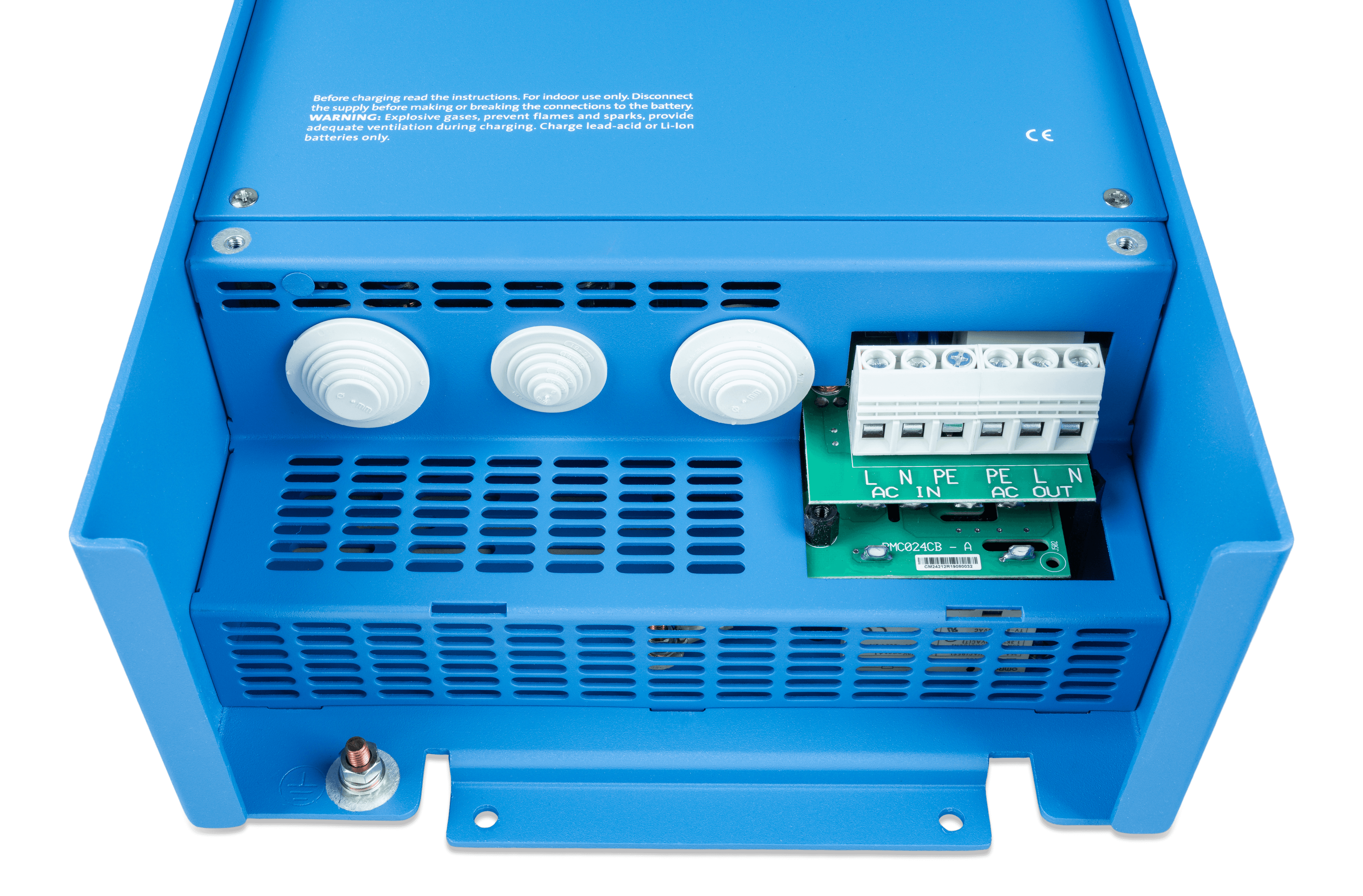

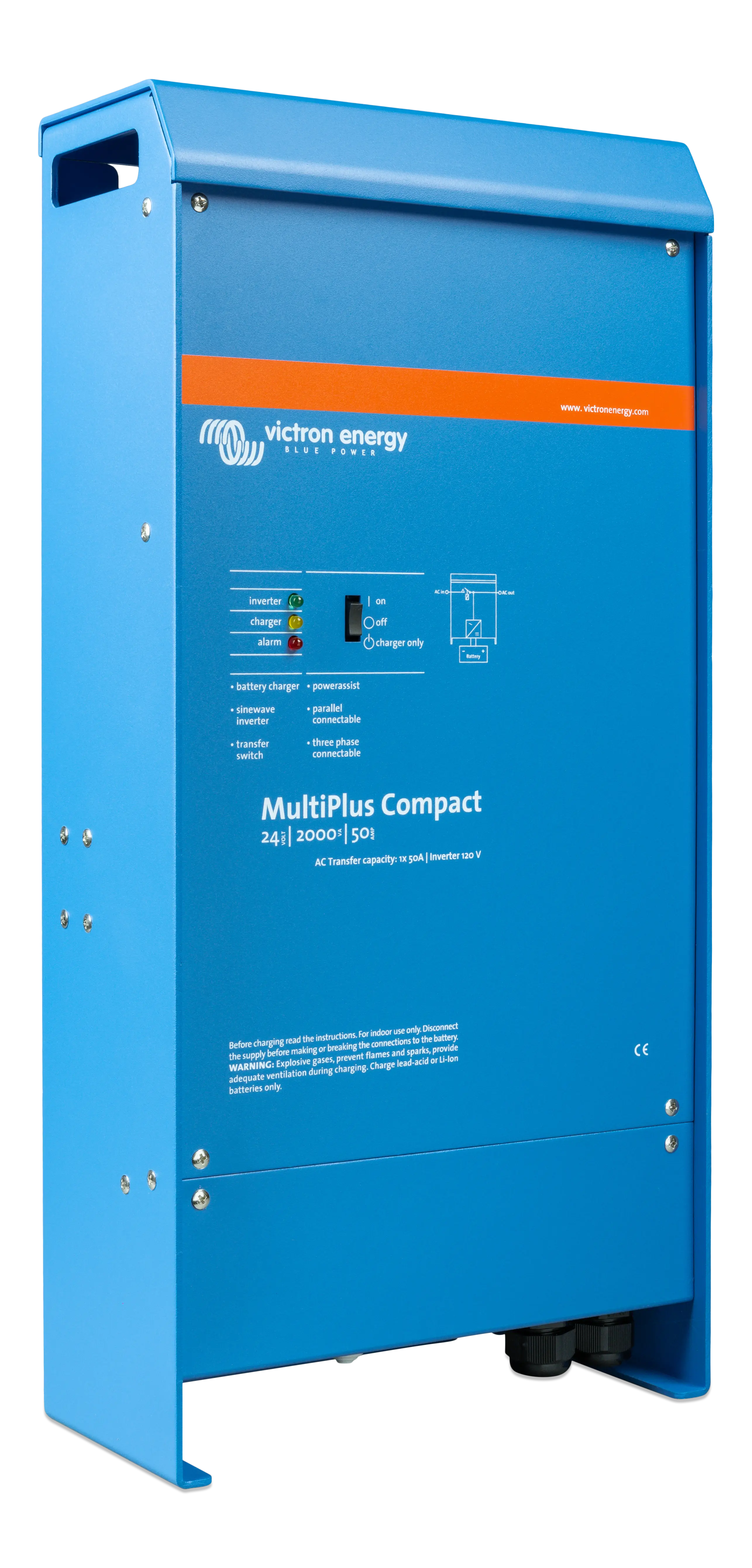

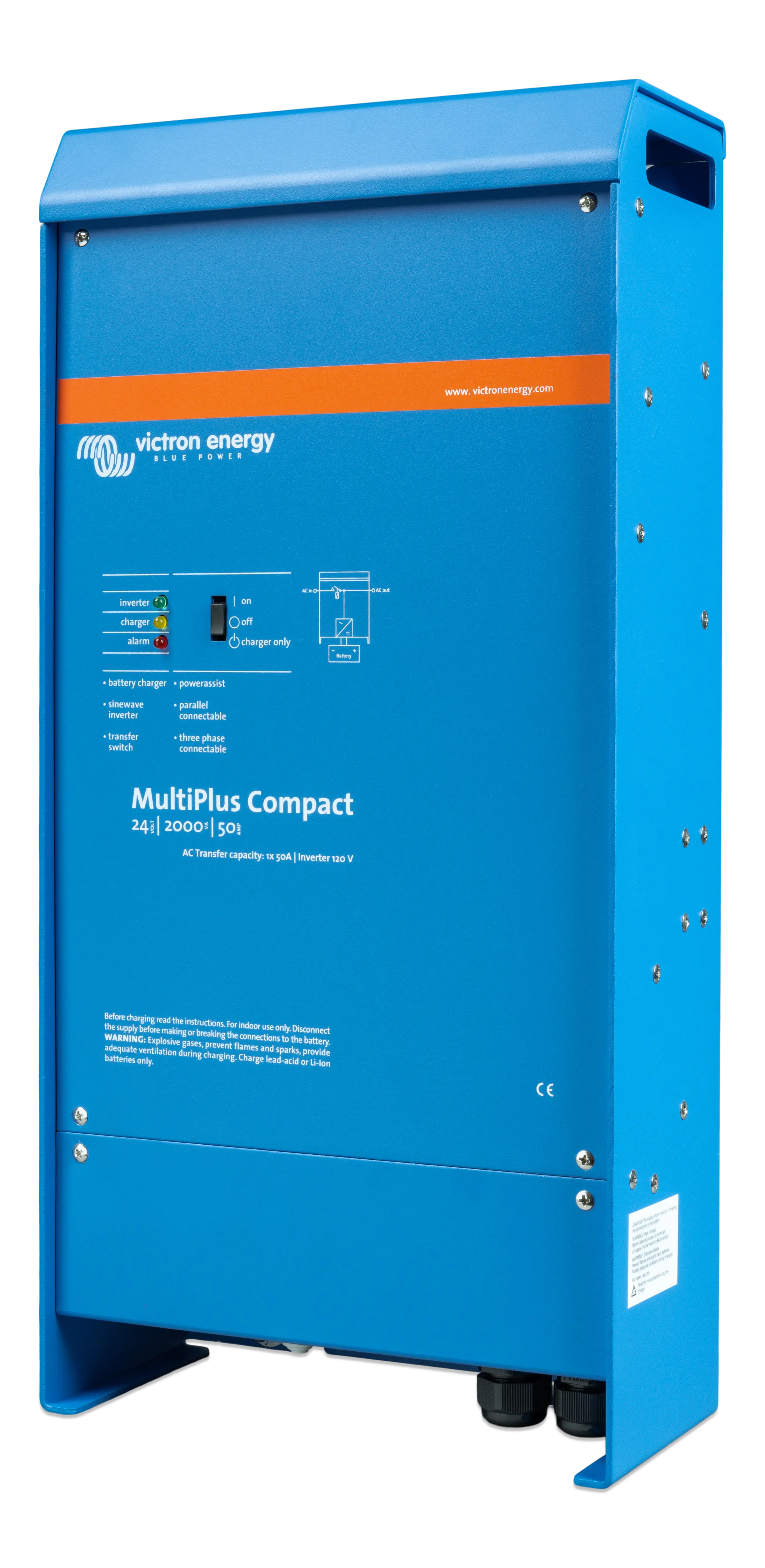

Phoenix MultiPlus Compact 12 / 24 Volt

Multi-functional
The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure. Models range from 800VA to 3000VA per module.

Unique PowerAssist feature
The MultiPlus will prevent overload of a limited AC source. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Uninterrupted AC power (UPS function)
In the event of a grid failure or shore or generator power being disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Virtually unlimited power thanks to parallel operation
Up to 6 Multi's can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three-phase and split phase capabilities.


Documents


Datasheet Phoenix MultiPlus (US version)   Datasheet Phoenix MultiPlus (US version)
  (pdf, updated 2007-10-03, 443Kb)

Datasheet Phoenix MultiPlus   Datasheet Phoenix MultiPlus
  (pdf, updated 2007-02-08, 116Kb)

Victron Systems Brochure   Victron Systems Brochure
  (pdf, updated 2007-03-01, 1785Kb)

Victron EasyPlus Brochure   Victron EasyPlus Brochure
  (pdf, updated 2008-02-22, 433Kb)

Victron MultiPlus Brochure   Victron MultiPlus Brochure
  (pdf, updated 2007-03-01, 992Kb)

Victron MultiPlus Brochure Automotive   Victron MultiPlus Brochure Automotive
  (pdf, updated 2007-10-03, 1917Kb)

Using the Phoenix MultiPlus to reduce operating cost of a generator   Using the Phoenix MultiPlus to reduce operating cost of a generator
  (pdf, updated 2006-10-17, 267Kb)

Whitepaper Phoenix Multi Inverter/Charger   Whitepaper Phoenix Multi Inverter/Charger
  (pdf, updated 2006-10-17, 50Kb)

Honda White paper   Honda White paper
  (pdf, updated 2006-10-17, 299Kb)

Adaptive charging - How does it work?   Adaptive charging - How does it work?
  (pdf, updated 2004-12-27, 54Kb)

DC solar system with a MultiPlus inverter/charger   DC solar system with a MultiPlus inverter/charger
  (pdf, updated 2006-10-17, 147Kb)

Energy Unlimited   Energy Unlimited
  (pdf, updated 2005-01-11, 1449Kb)

Telecom White paper   Telecom White paper
  (pdf, updated 2007-02-21, 17Kb)

A guide to VEConfigure   A guide to VEConfigure
  (pdf, updated 2006-06-12, 825Kb)

Achieving the impossible   Achieving the impossible
  (pdf, updated 2004-12-27, 2143Kb)

Publication - Project Vicki Part 1&2 - The Ducks Guts   Publication - Project Vicki Part 1&2 - The Ducks Guts
  (pdf, updated 2006-04-06, 1104Kb)

MultiPlus Compact 2000VA and Phoenix Inverter Compact 2000VA manual   MultiPlus Compact 2000VA and Phoenix Inverter Compact 2000VA manual
  (pdf, updated 2007-02-27, 1711Kb)

Phoenix MultiPlus (VE.Bus models) manual   Phoenix MultiPlus (VE.Bus models) manual
  (pdf, updated 2008-05-02, 766Kb)

Phoenix Multi and Inverter (Non VE.Bus models) manual   Phoenix Multi and Inverter (Non VE.Bus models) manual
  (pdf, updated 2005-03-11, 577Kb)

Quick Install Sheet MultiPlus   Quick Install Sheet MultiPlus
  (pdf, updated 2006-06-30, 616Kb)

Phoenix MultiPlus Compact and Phoenix Inverter Compact manual   Phoenix MultiPlus Compact and Phoenix Inverter Compact manual
  (pdf, updated 2006-11-24, 1878Kb)

Quick Start Manual Phoenix Duo Control Panel   Quick Start Manual Phoenix Duo Control Panel
  (pdf, updated 2006-07-14, 1071Kb)

User manual Phoenix Multi Plus 120V 60Hz   User manual Phoenix Multi Plus 120V 60Hz
  (pdf, updated 2005-08-04, 227Kb)

Installation manual Phoenix Multi Plus 120V 60Hz   Installation manual Phoenix Multi Plus 120V 60Hz
  (pdf, updated 2005-08-04, 522Kb)

Installation Manual Multi and Phoenix Inverter (Non VE.Bus models)   Installation Manual Multi and Phoenix Inverter (Non VE.Bus models)
  (pdf, updated 2006-11-15, 1357Kb)

VE.Bus Three Phase System   VE.Bus Three Phase System
  (pdf, updated 2007-12-20, 130Kb)

Simple AC + DC System with MultiPlus   Simple AC + DC System with MultiPlus
  (pdf, updated 2007-12-20, 229Kb)

Wiring diagram for a VE.Bus panel   Wiring diagram for a VE.Bus panel
  (pdf, updated 2008-04-10, 98Kb)

AC + DC System with paralleled MultiPlus   AC + DC System with paralleled MultiPlus
  (pdf, updated 2007-12-20, 196Kb)

AC + DC System for vehicles   AC + DC System for vehicles
  (pdf, updated 2008-04-14, 162Kb)

AC + DC System with paralleled MultiPlus and AC Genset   AC + DC System with paralleled MultiPlus and AC Genset
  (pdf, updated 2007-12-20, 210Kb)

VE.Bus Parallel System Example   VE.Bus Parallel System Example
  (pdf, updated 2007-12-20, 120Kb)

VE.Bus Three Phase Nobreak system with Fuelcell   VE.Bus Three Phase Nobreak system with Fuelcell
  (pdf, updated 2007-12-20, 143Kb)

Split Phase System Example   Split Phase System Example
  (pdf, updated 2007-12-20, 144Kb)

AC + DC System with 4x MultiPlus and Powerman 230-80-2   AC + DC System with 4x MultiPlus and Powerman 230-80-2
  (pdf, updated 2007-12-20, 170Kb)

Grid-connected Solar system on MultiPlus   Grid-connected Solar system on MultiPlus
  (pdf, updated 2007-12-20, 567Kb)

DC Solar System on MultiPlus   DC Solar System on MultiPlus
  (pdf, updated 2007-12-20, 568Kb)

High quality picture Phoenix MultiPlus 24V 3000VA 70A   High quality picture Phoenix MultiPlus 24V 3000VA 70A
  (jpg, updated 2006-10-18, 4026Kb)

High quality picture MultiPlus Compact 12V 2000VA 80A   High quality picture MultiPlus Compact 12V 2000VA 80A
  (jpg, updated 2007-01-24, 3601Kb)

High quality picture MultiPlus Compact 24V 1200VA 25A   High quality picture MultiPlus Compact 24V 1200VA 25A
  (jpg, updated 2006-10-18, 2868Kb)

High quality picture MultiPlus Compact 12V 1600VA 70A   High quality picture MultiPlus Compact 12V 1600VA 70A
  (jpg, updated 2006-10-18, 2783Kb)

High quality picture Phoenix MultiPlus 12V 3000VA 120A   High quality picture Phoenix MultiPlus 12V 3000VA 120A
  (jpg, updated 2007-01-23, 3630Kb)

Dimensions Phoenix Inverter 12/24/48 Phoenix MultiPlus 12/24/48   Dimensions Phoenix Inverter 12/24/48 Phoenix MultiPlus 12/24/48
  (pdf, updated 2008-02-29, 24Kb)

Dimensions Compact   Dimensions Compact
  (dwg, updated 2005-04-22, 105Kb)

Dimensions Phoenix Inverter 12/24/48 Phoenix Multiplus 12/24/48   Dimensions Phoenix Inverter 12/24/48 Phoenix Multiplus 12/24/48
  (dwg, updated 2008-02-29, 68Kb)

Dimensions Compact   Dimensions Compact
  (pdf, updated 2005-04-22, 20Kb)

Declaration of conformity Phoenix Multi(Plus)   Declaration of conformity Phoenix Multi(Plus)
  (pdf, updated 2007-03-26, 21Kb)



Related products

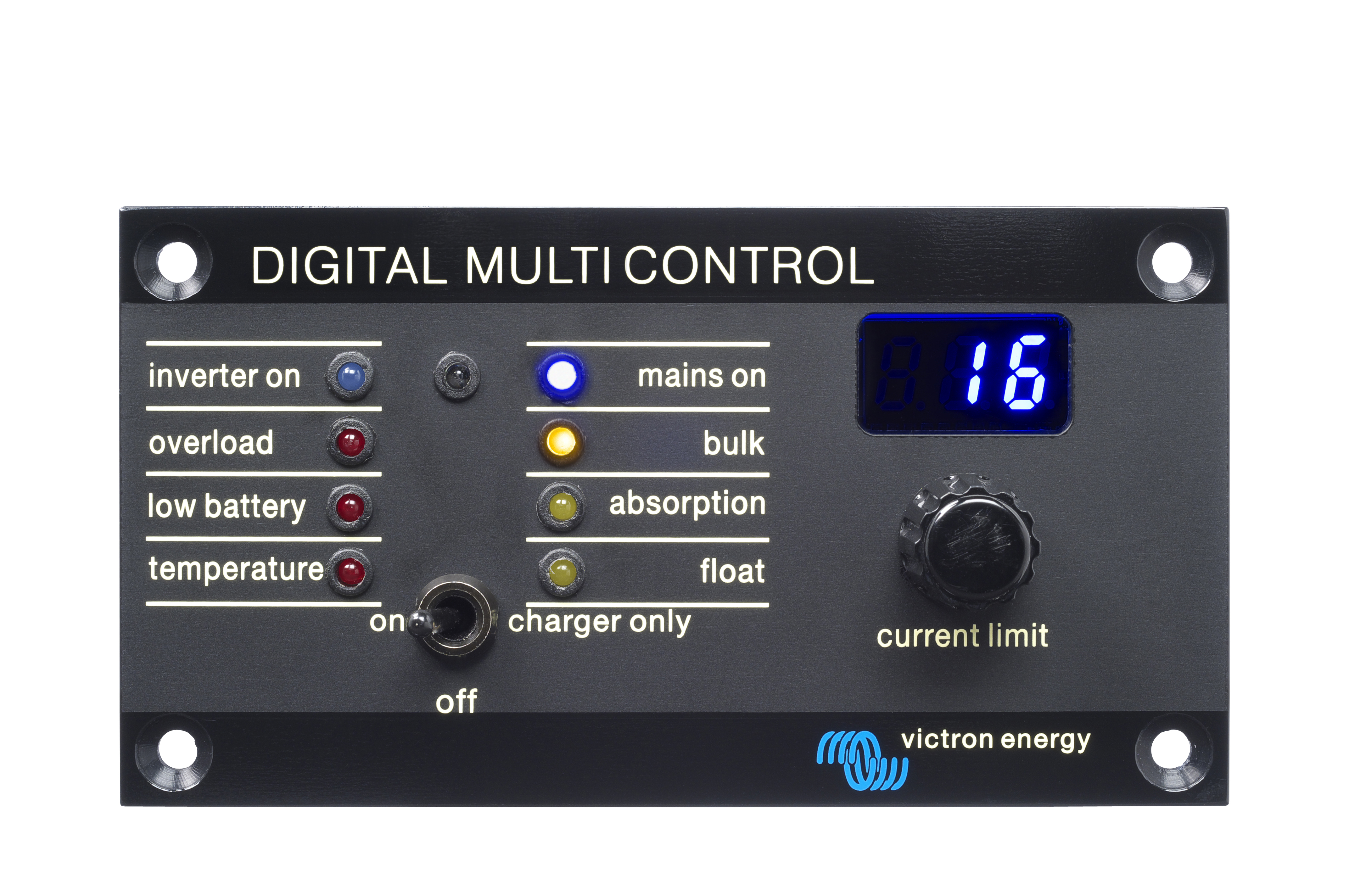

Phoenix Multi Control
This is a remote control and monitoring panel for the Phoenix Multi/MultiPlus. In addition, the remote panel also offers PowerControl and PowerAssist, (simply by setting a maximum AC current with a 0 to 16A rotary knob), thus preventing the shore supply or a genset from being overloaded. The brightness of the LED’s is automatically reduced during night time. Connection to the Multi is with a standard UTP – cable.



Battery Alarm
An excessively high or low battery voltage is indicated by an audible and visual alarm, and a relay for remote signalling.



UTP patch lead
Allows to connect Phoenix Inverter Control or VE Interface MK.1.

5M ASS030065000
10M ASS030065010
15M ASS030065020



Cable for Parallel connect
The Phoenix Multi Plus can be used in a parallel mode to do this a data cable is needed to synchronize the system.

Only for models:
12/1600
12/2500
24/1600
24/3000



Connection bag 3-phase operation
Required for three-phase operation.
Only for models:
12/2000
12/2500
24/2000
24/3000




VE Interface MK.2B
Every Phoenix Multi/MultiPlus is ready to communicate with a computer through its RS-485 data port. All you need to link to your PC and be able to set and read out all parameters is the data link as shown. Moreover, all Victron Energy products equipped with an RS-485 data port can easily be integrated in a computerised monitoring and control system, such as VE.Net from Victron Energy.

Only for models: 12/800, 12/1200, 12/1600, 12/2500, 24/800, 24/1200, 24/1600, 24/3000

VE-Configure software and a UTP patch lead required.
