6. Specifications
In this section:
Technical specifications | |
|---|---|
Installation type | Inserts into the display port on the front of a solar charger. |
Suitability | Suitable for the Victron Energy 150V and 250V BlueSolar and SmartSolar MPPT solar charger range that are equipped with a display port. |
Display port connector | RS232 9 pin pinout |
Dimensions (w x l x h) | 116mm x 50mm x 25mm |
Weight | 66g |
 |

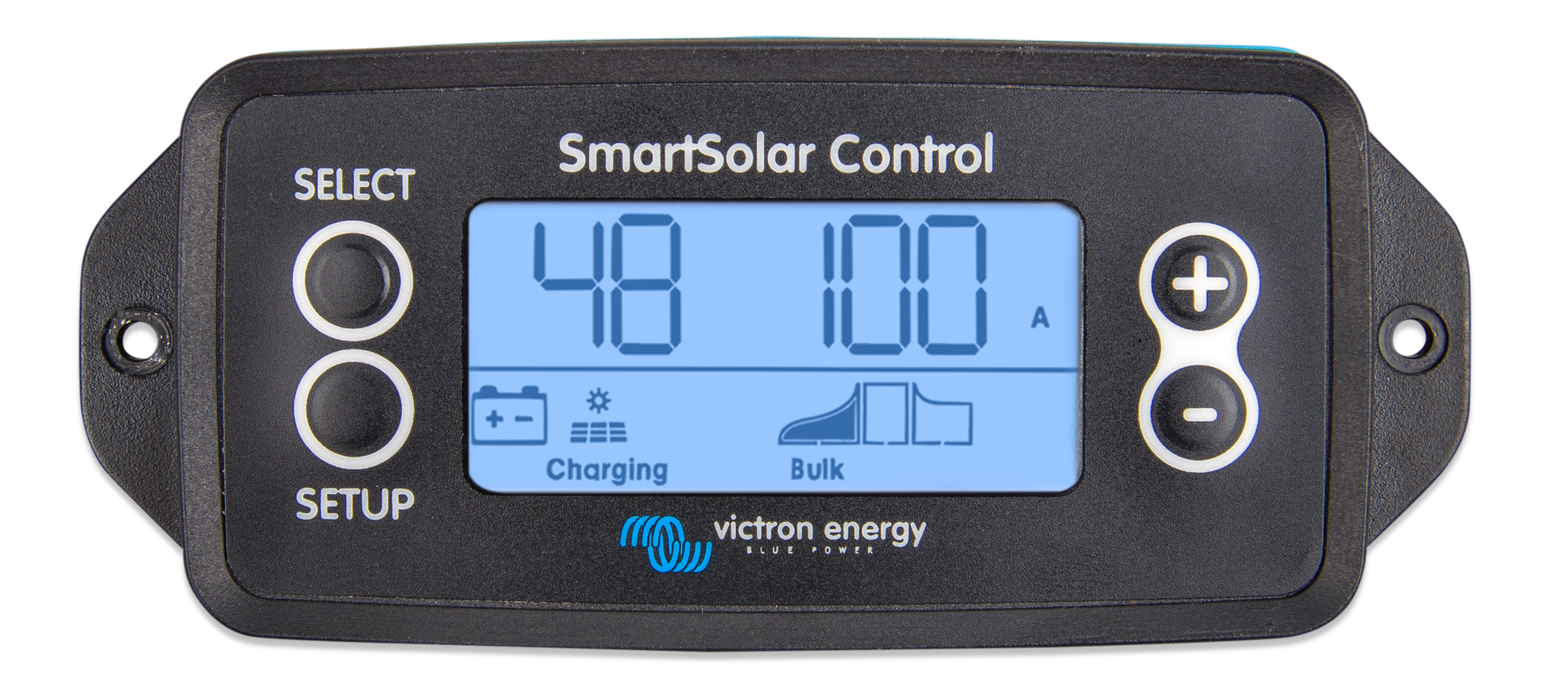

SmartSolar Control front view
 |

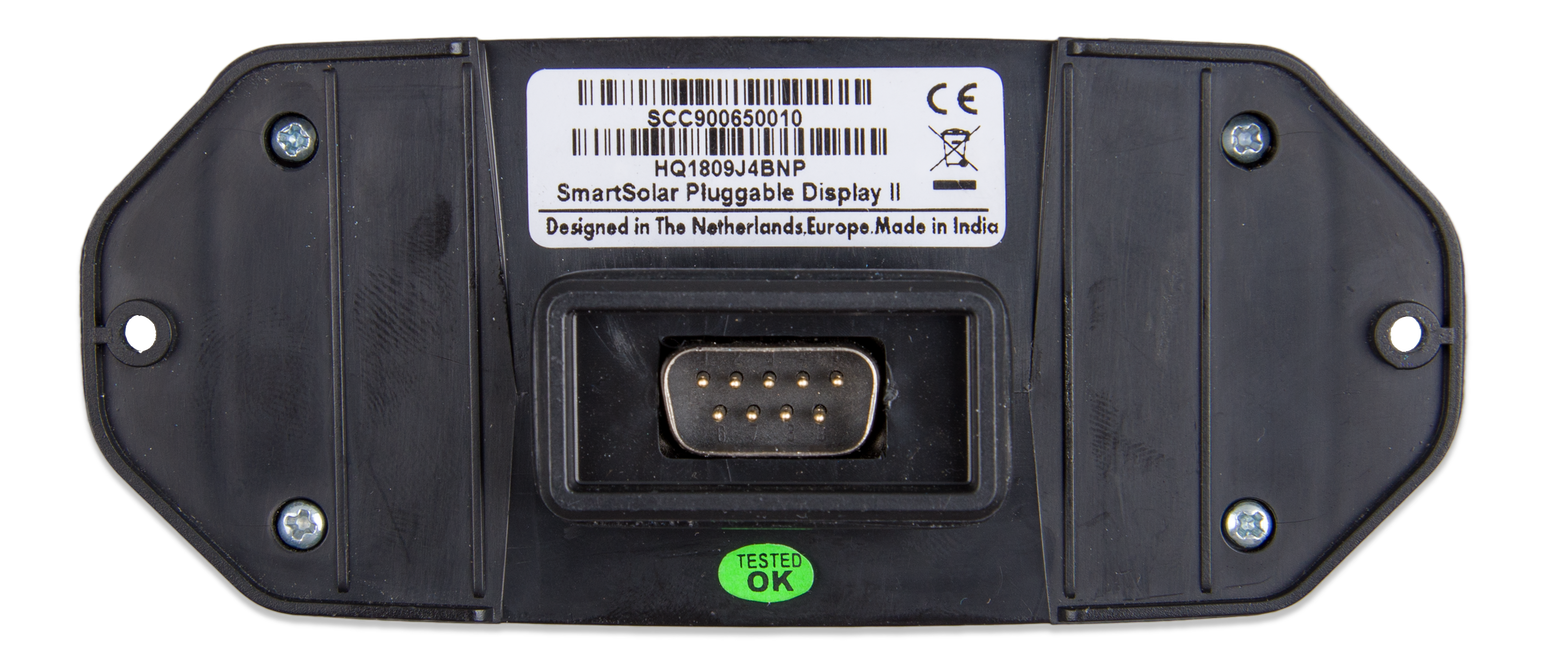

SmartSolar Control back view
