Current Event:
RettMobil
May 14th - May 17th
Location:
Messe Galerie Fulda, Fulda (Hessen), Germany
Exibitor:
-
Victron Energy (Freigelaende Stand F/32)
http://www.victronenergy.com -
Service Team Doebln(Freigelaende Stand F/32)
http://www.service-doebeln.de
Latest News:
China Boat Show 2008
2008 May 7th
The China International Boat Show represents the entire manufacturing chain of the industry, from basic materials to ready-to-sail luxury boats. Victron Energy products were displayed by China distributor Shenzhen Royal Technology Co. Ltd. Read full article
 |

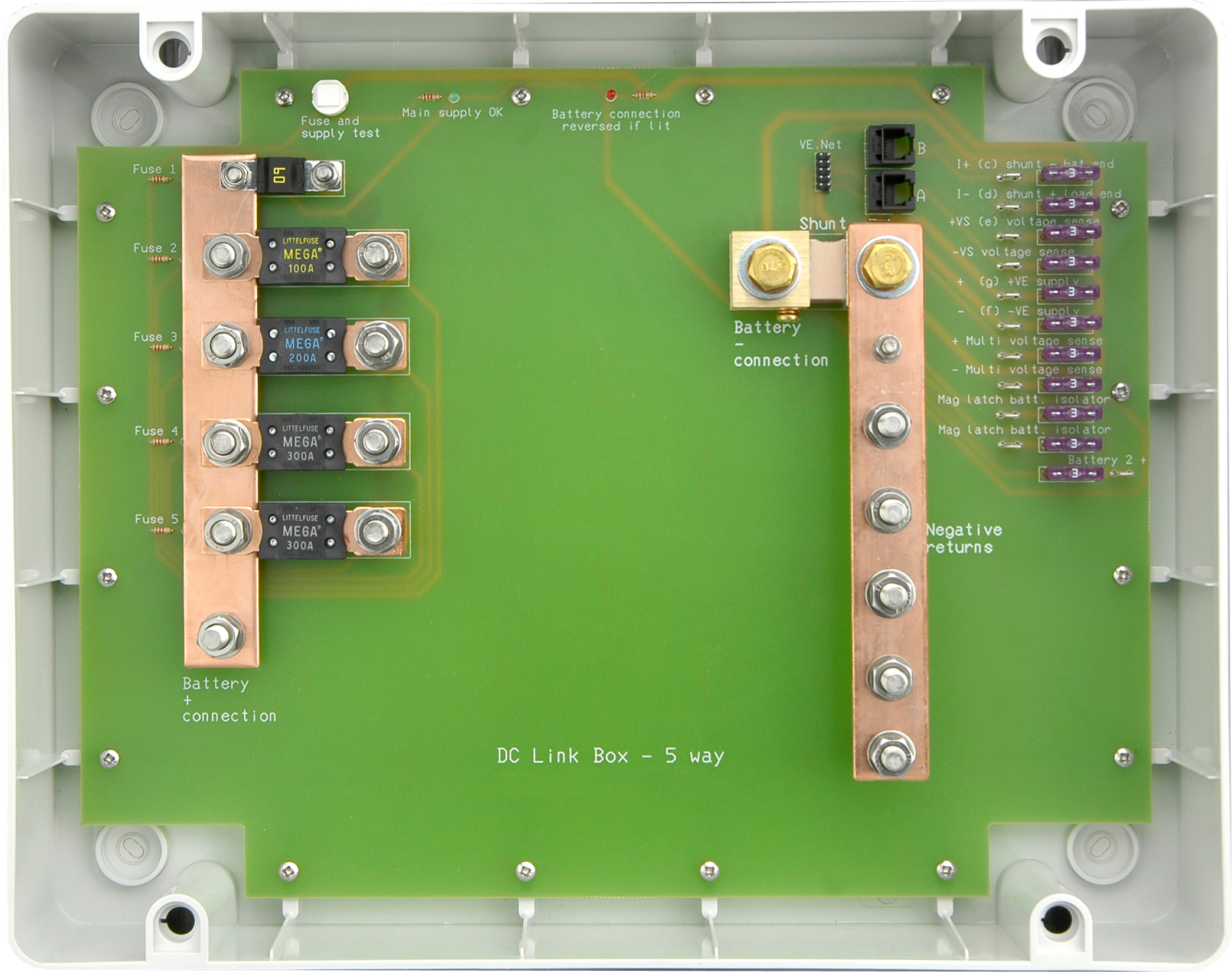

ESP DC Link Box
The DC link box brings all the primary DC protection, DC monitoring and sensor connections into one simple to fit enclosure. It includes: •4 Mega fuses (2 x 300A, 1x 200A, 1 x 100A) and 1 Midi fuse (60A). These can be changed to suit the users requirements. Mega fuses are available in sizes from 100 to 500 amps and Midi fuses from 30 to 125 amps. • 500 amp shunt • Test button with LED's for all 5 fuses and a polarity warning LED. • Fused connection points for MultiPlus voltage sense and BMV 501 connections • Fused connections for magnetically latching battery isolator which can be controlled via ESP system panel • RJ 11 and 45 socket connections for ESP system panel.
Documents
|
-300dpi.jpg)
More Power
Two AC inputs with integrated transfer switch. The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source.
