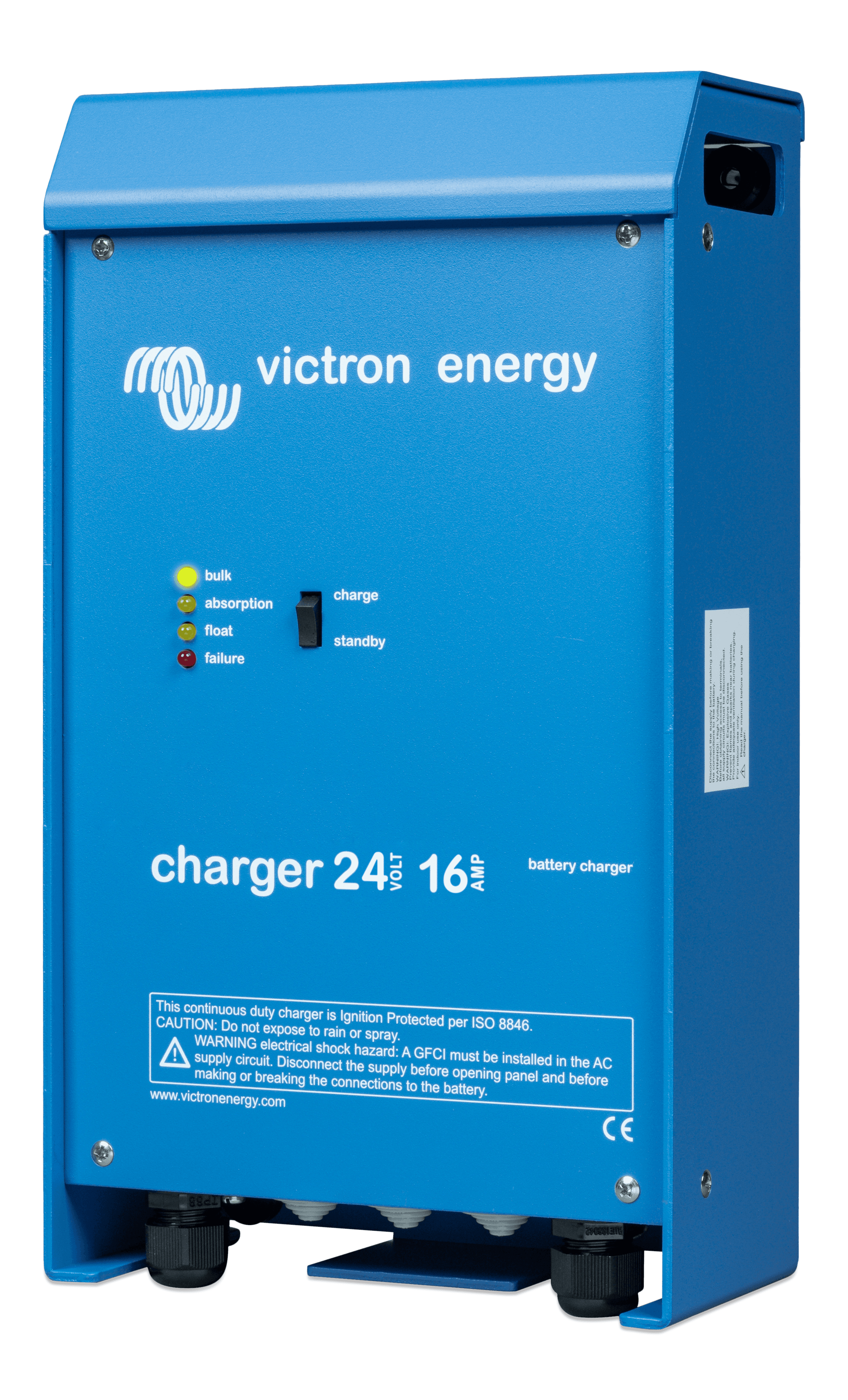

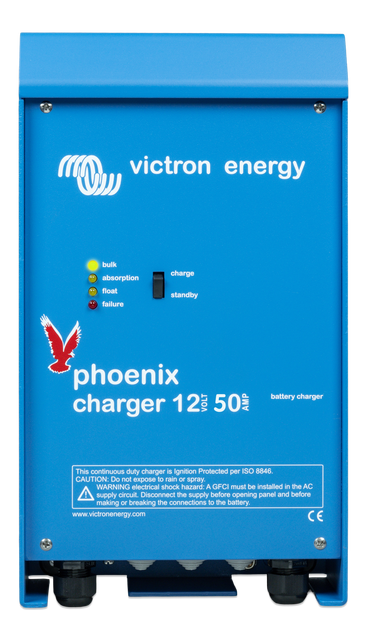

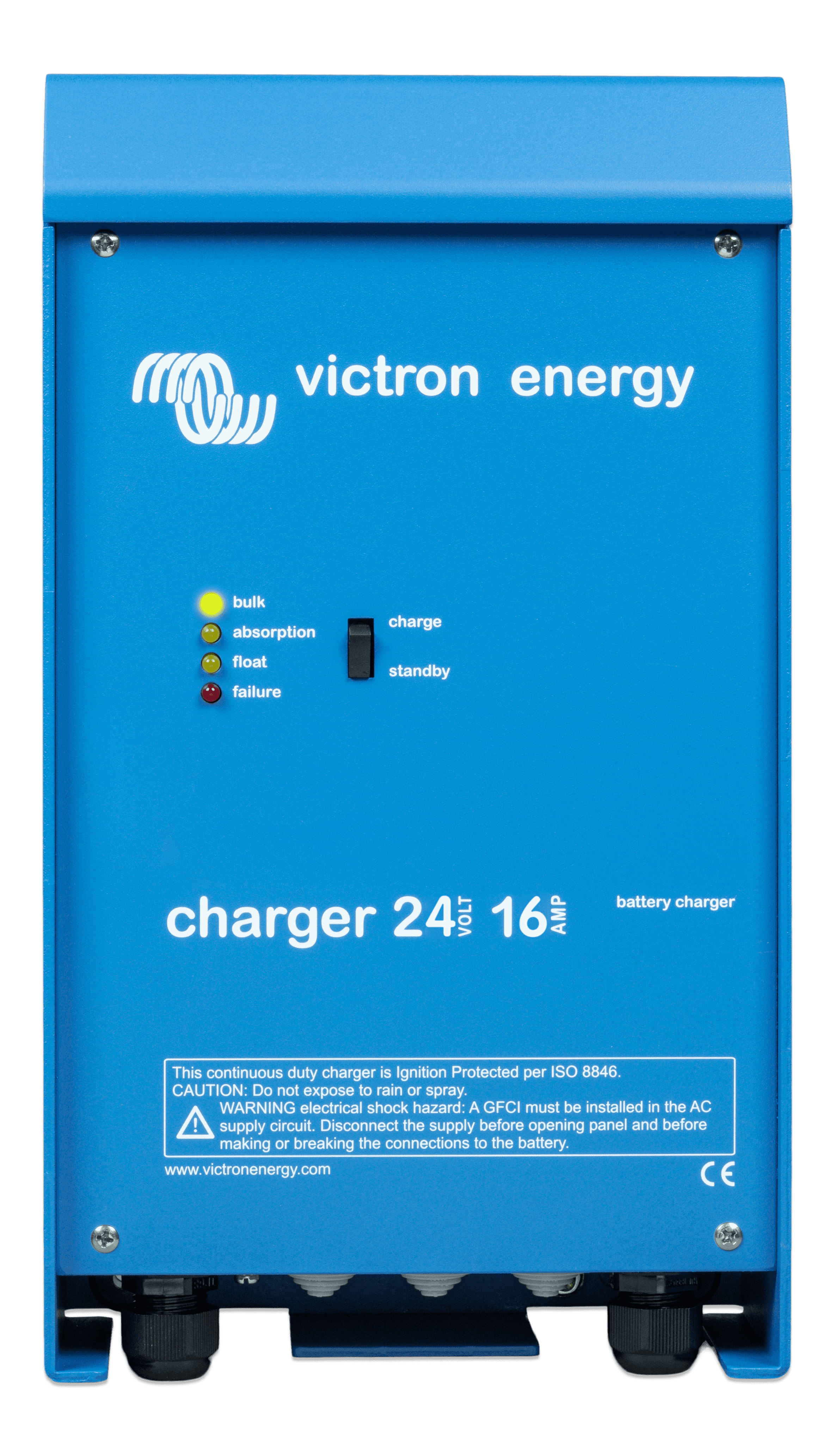

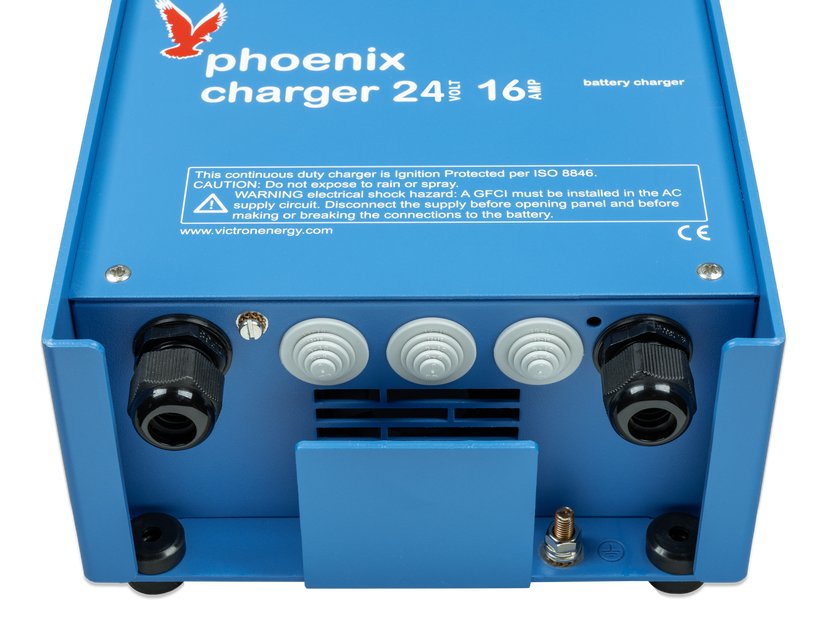

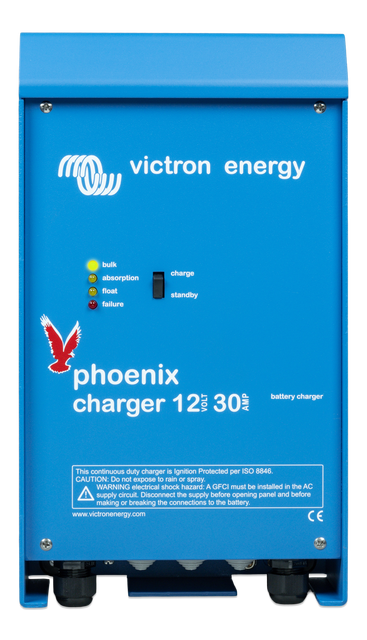

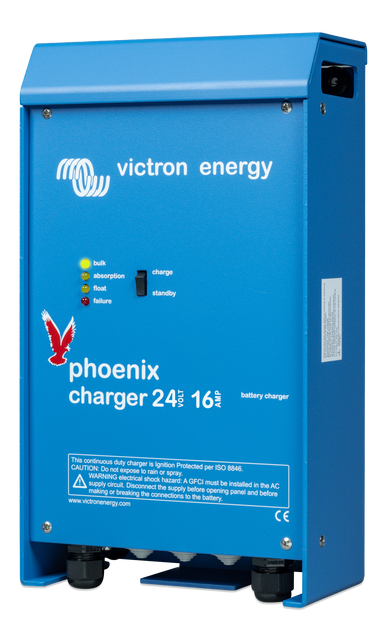

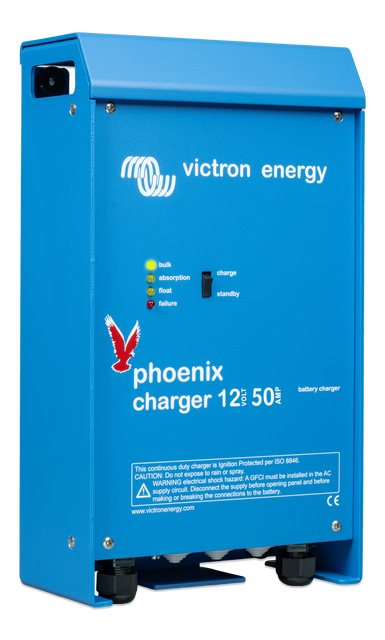

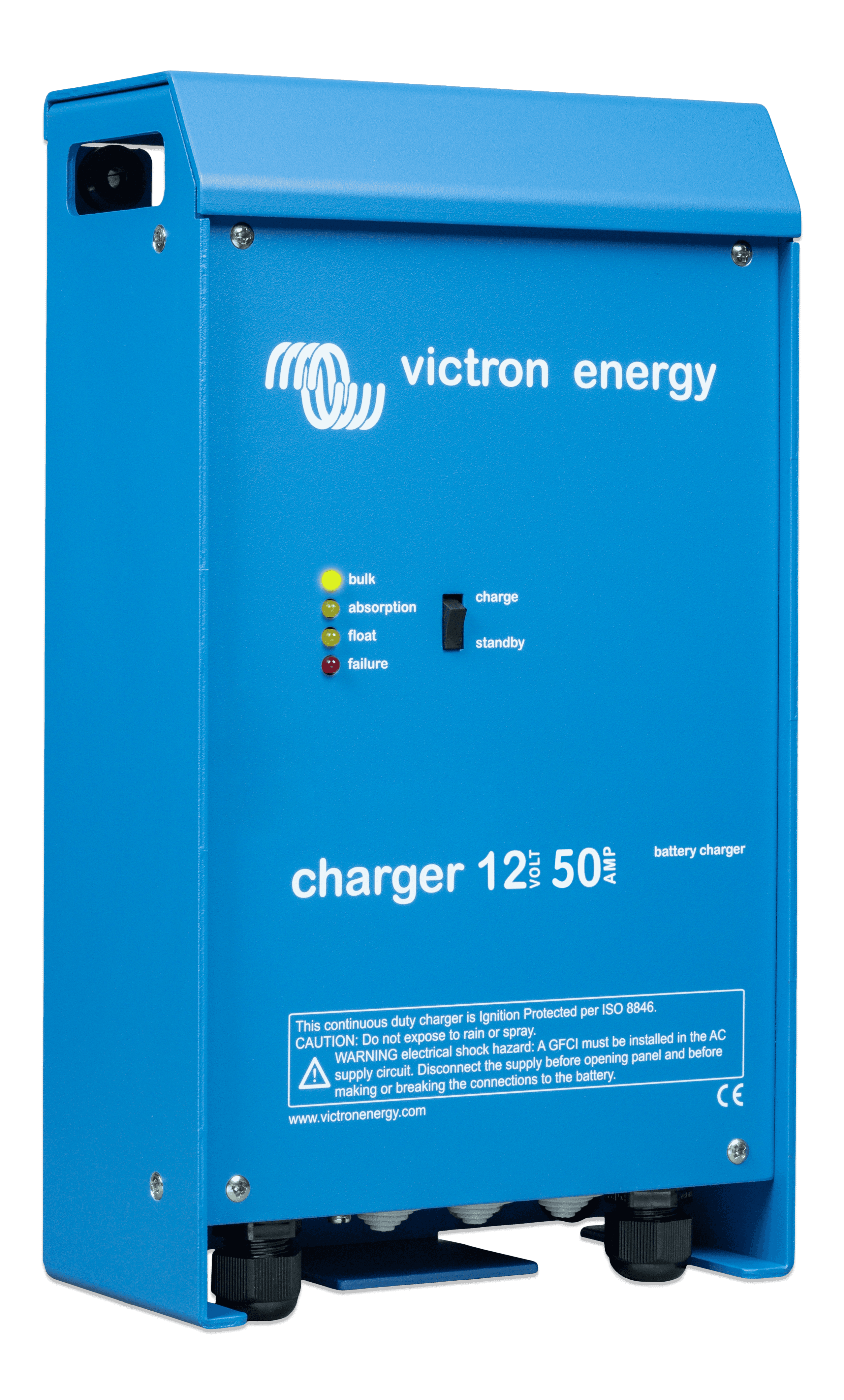

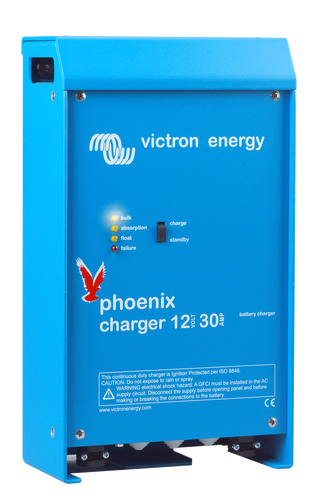

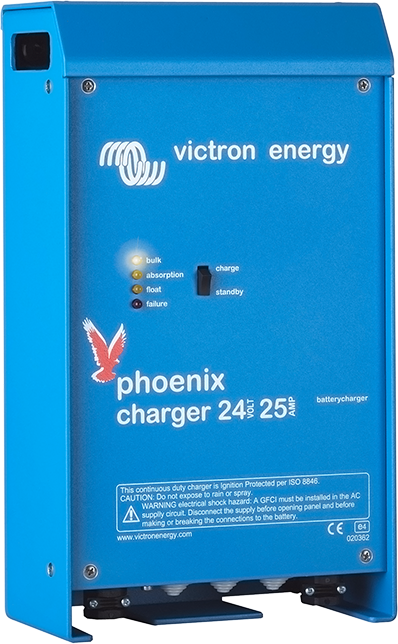

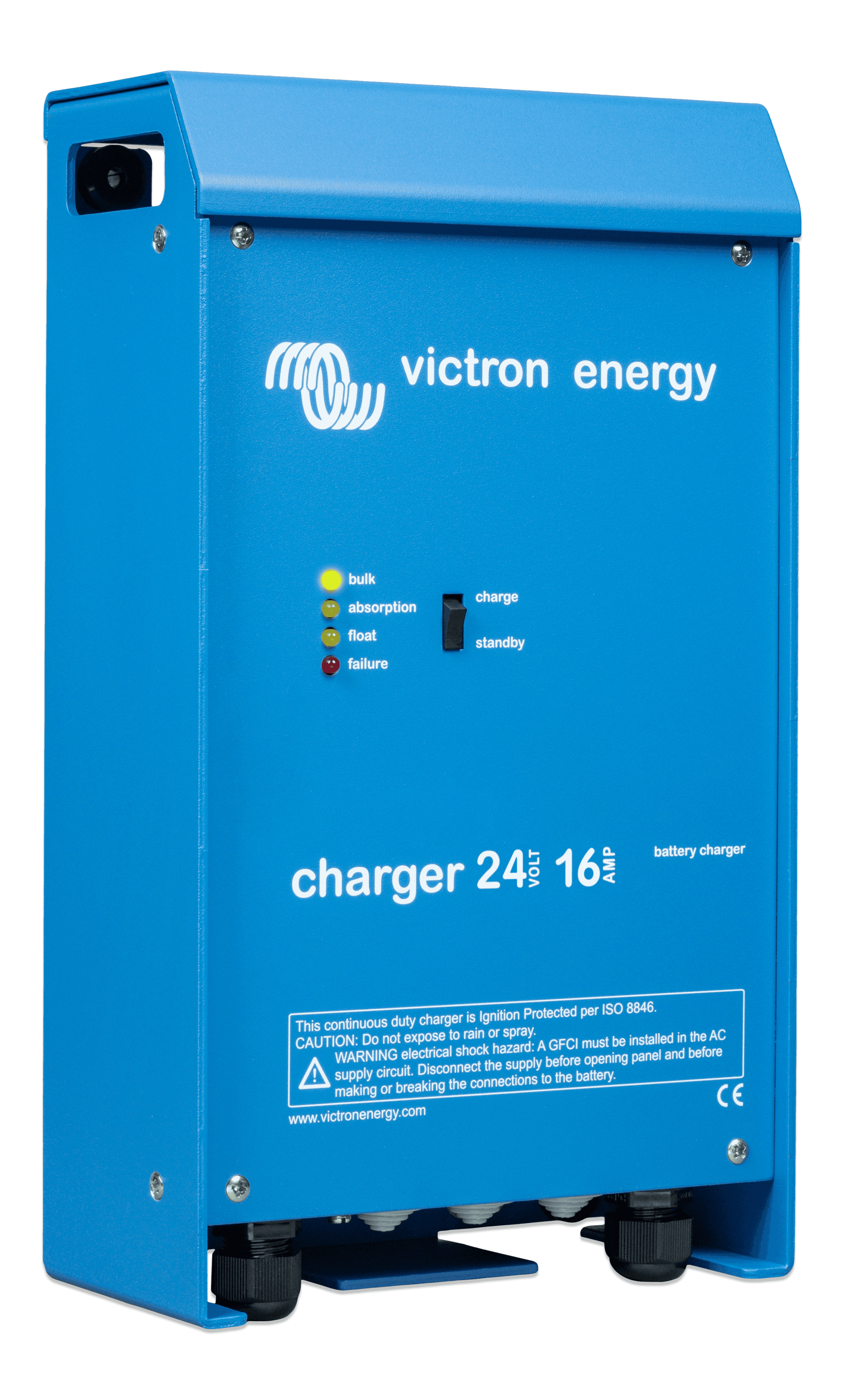

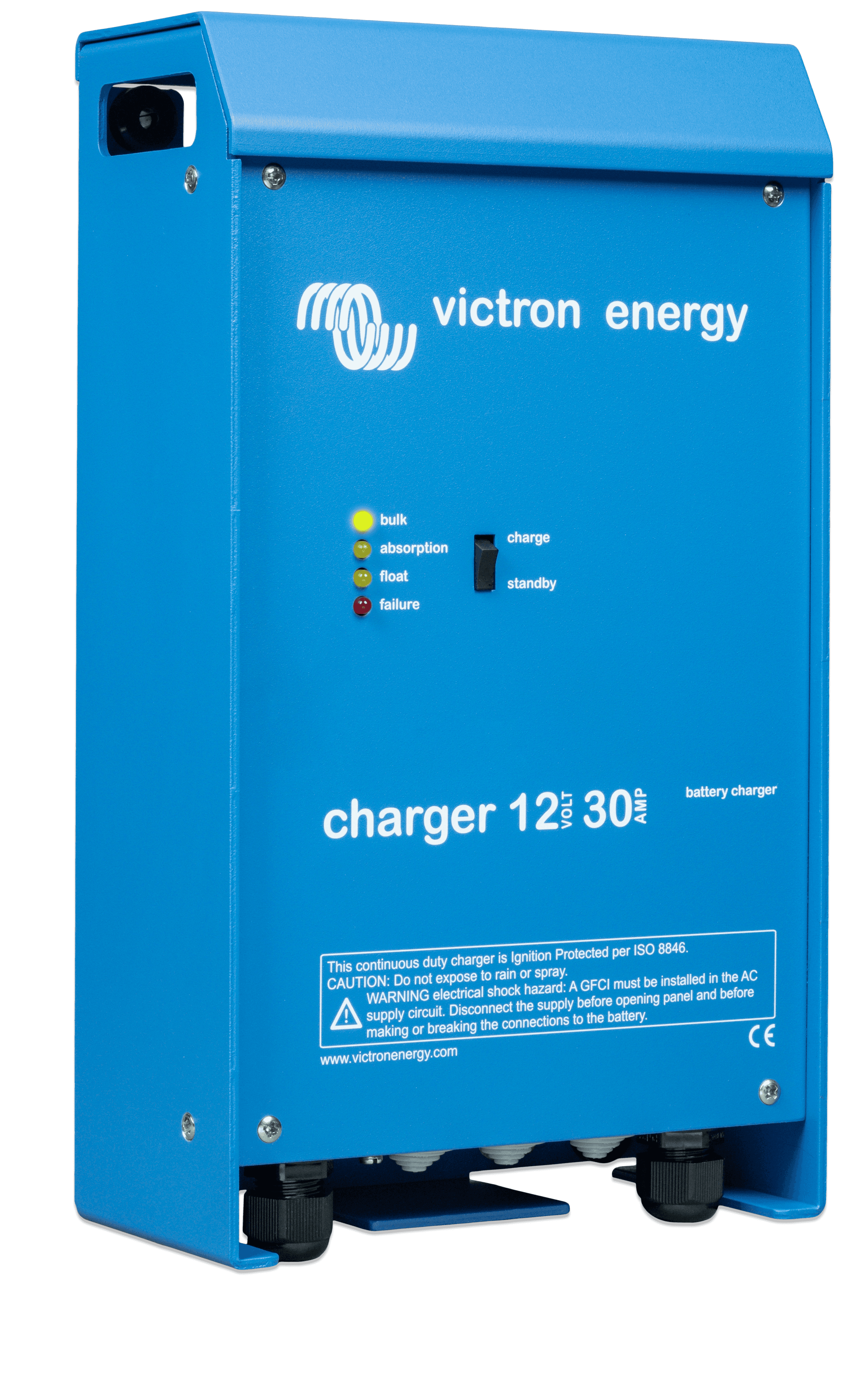

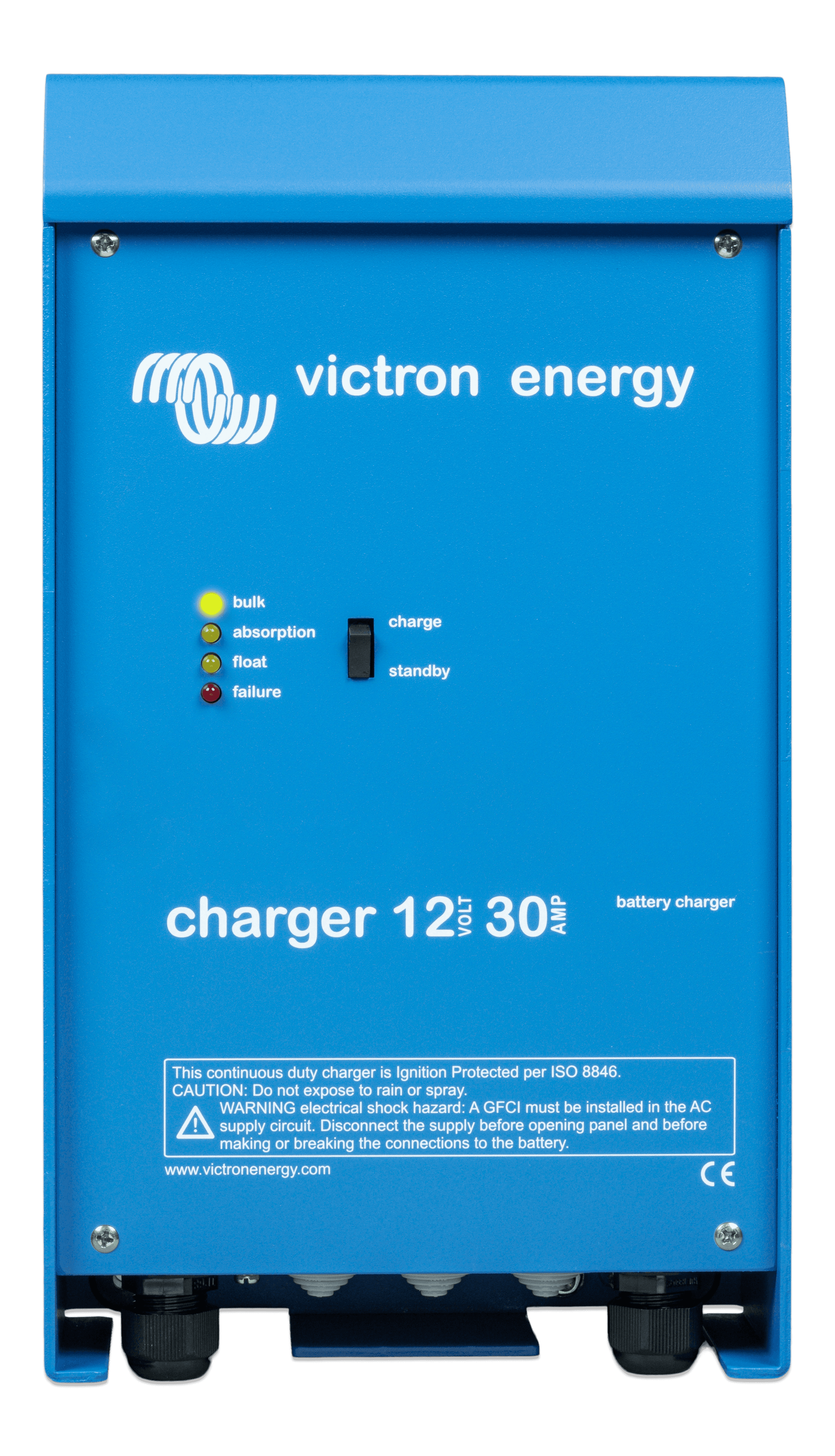

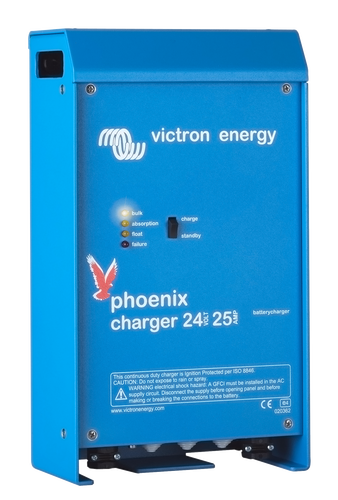

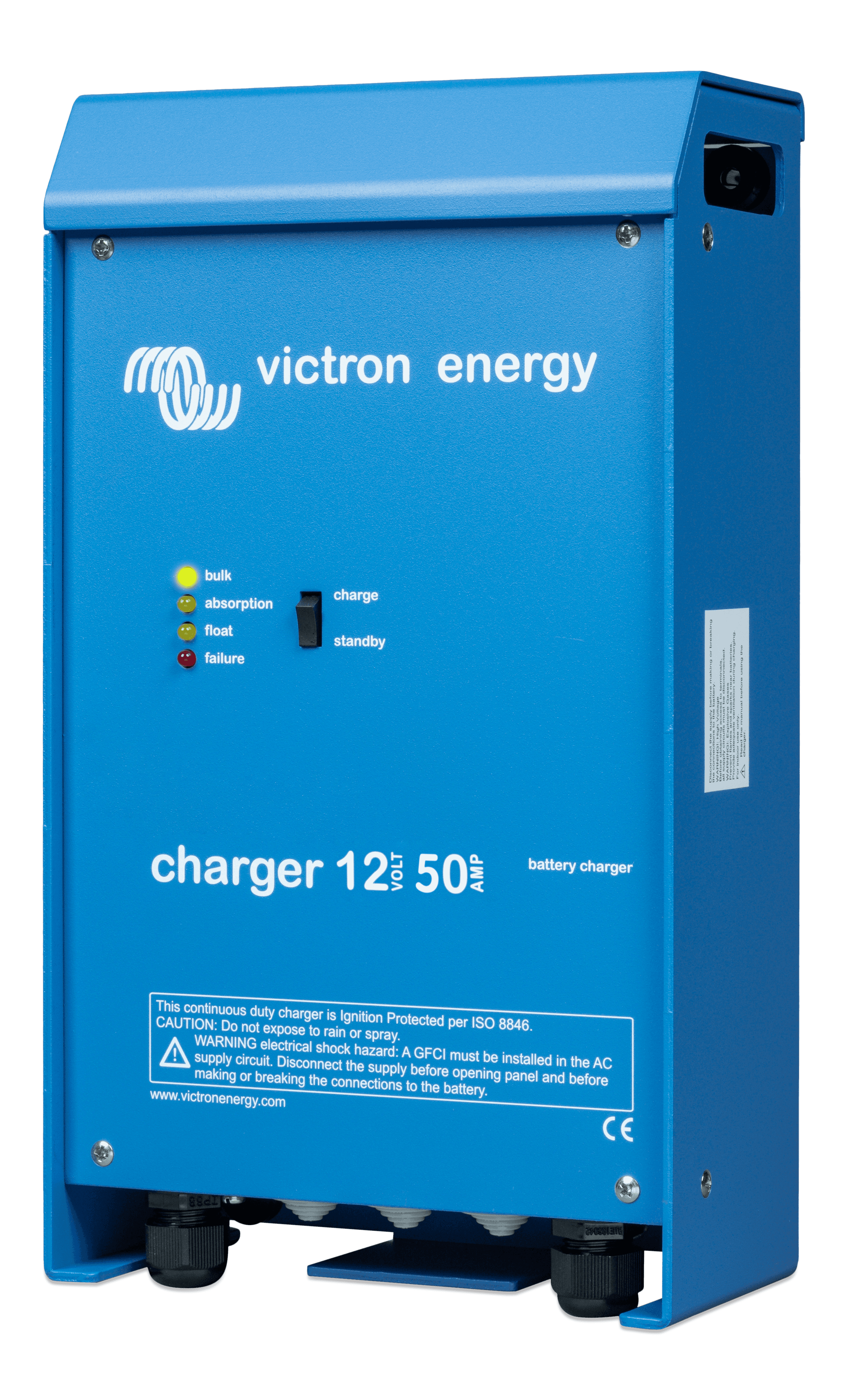

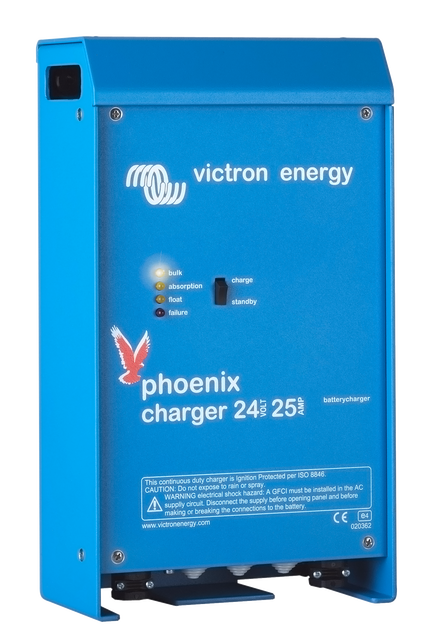

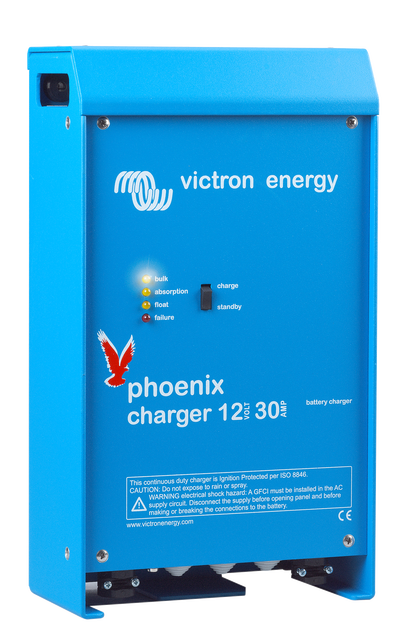

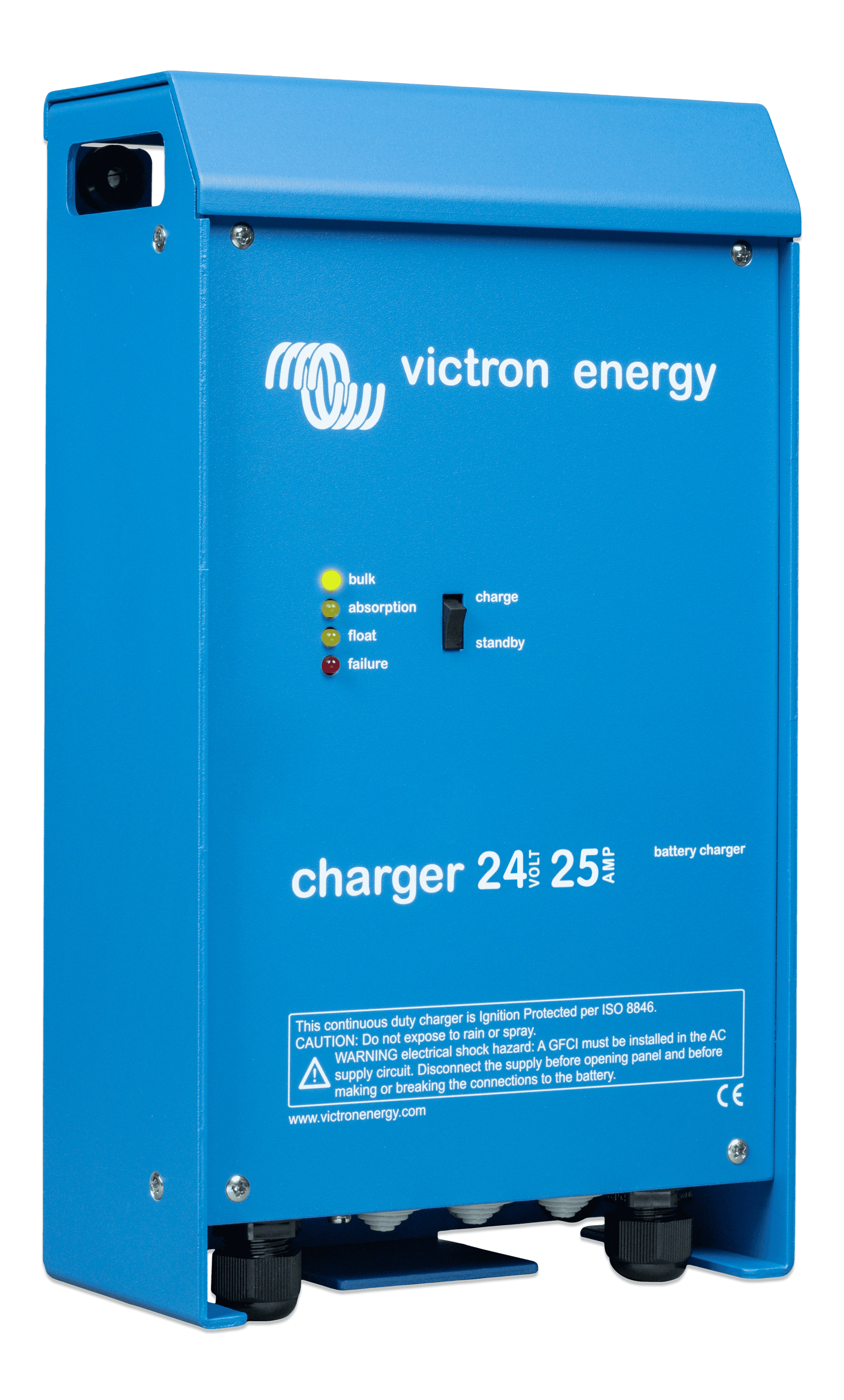

Phoenix Charger
Phoenix Charger

Phoenix Charger

12 / 24 Volt

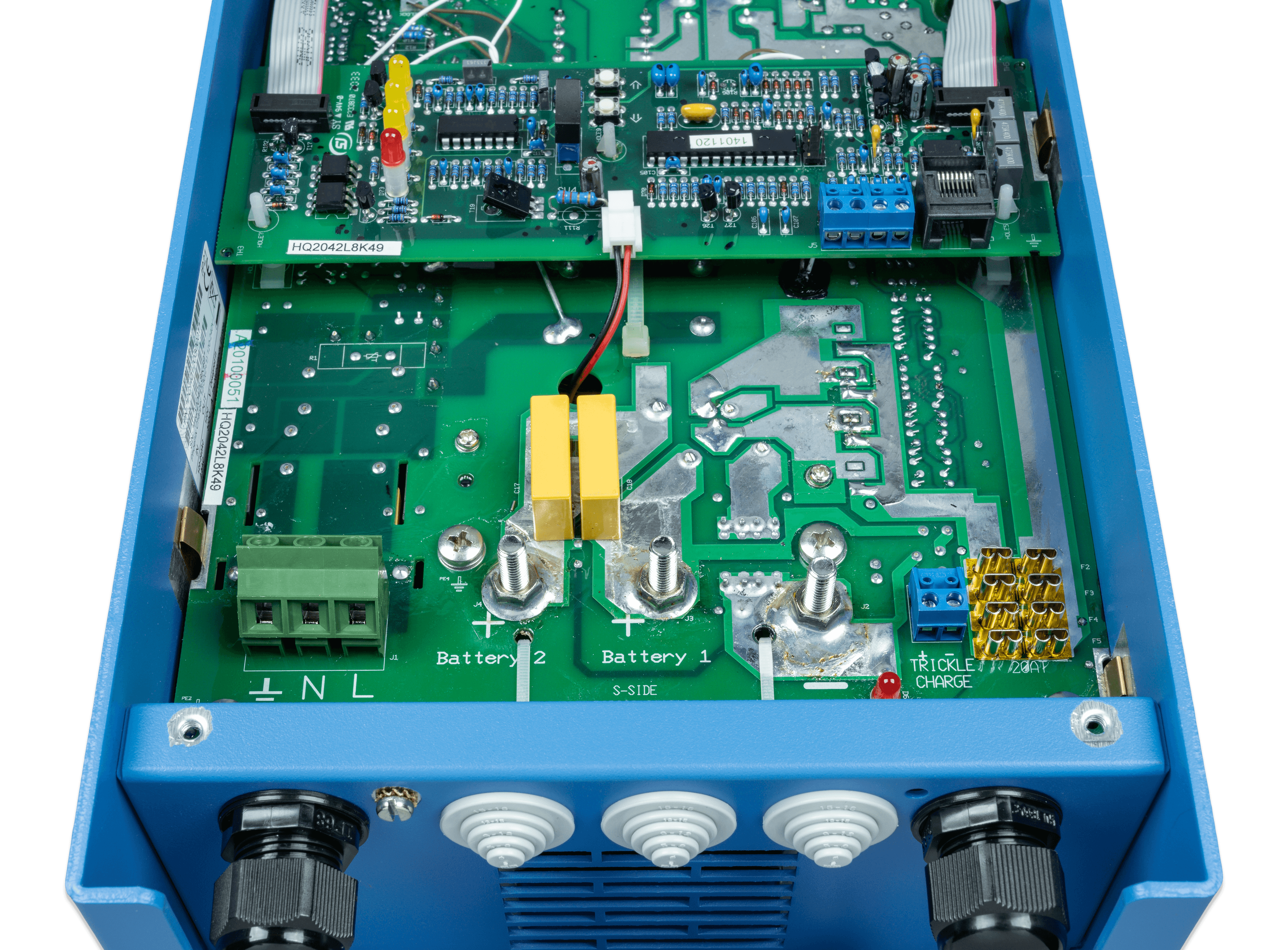

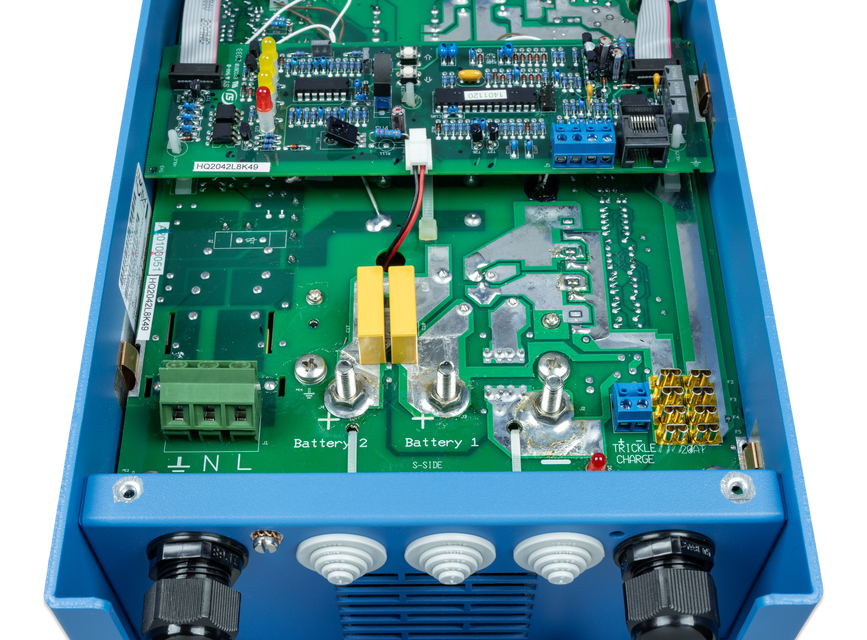

Adaptive 4-stage charge characteristic: bulk - absorption - float - storage. Two full rated outputs and one 4 Amp output. Universal input 90-265V, 50/60Hz. The Phoenix charger features a microprocessor controlled adaptive battery management system that can be preset to suit different types of batteries. The adaptive feature will automatically optimise the charge process relative to the way the battery is being used.



Documents


Select document type


Accessories




Battery Alarm


An excessively high or low battery voltage is indicated by an audible and visual alarm, and a relay for remote signalling.



Phoenix Charger Control


The PCC panel provides remote control and monitoring of the charge process with LED indication of the charger status. In addition, the remote panel also offers output current adjustment that can be used to limit the output current and thus the power drawn from the AC supply. This is particularly useful when operating the charger from limited shore power or small gensets. The panel can also be used to change the battery charging parameters. The brightness of the LED's is automatically reduced during night time. Connection to the charger is with a standard UTP cable.



VE Interface MK.2.2B and VE interface MK2-USB


Phoenix Inverters are ready to communicate with a computer through its RS-485 data port. All you need to link to your PC in order to be able to set and read out all parameters is the data link as shown. Moreover, all Victron Energy products equipped with an RS-485 data port, such as VE.Net, can easily be integrated in a computerized monitoring and control system.

Only for models: 12/1200, 12/1600, 12/3000, 12/5000, 24/1200, 24/1600, 24/3000, 24/5000, 48/3000, 48/5000, 48/8000, 48/10.000

VE-Configure software and a RJ45 UTP cable required.

More Power

Two AC inputs with integrated transfer switch. The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source.

New Quattro. More power.

Two AC outputs

All Quattro- and several Multi inverter/chargers now have two AC outputs. In addition to the standard no-break output, an auxiliary output is available which disconnects the connected load during battery operation. It is, for example, the perfect solution for preventing an electric water heater from discharging your battery.

New Quattro. New Multiplus. Two AC ouputs.
