BMV-600S series

BMV-600S series

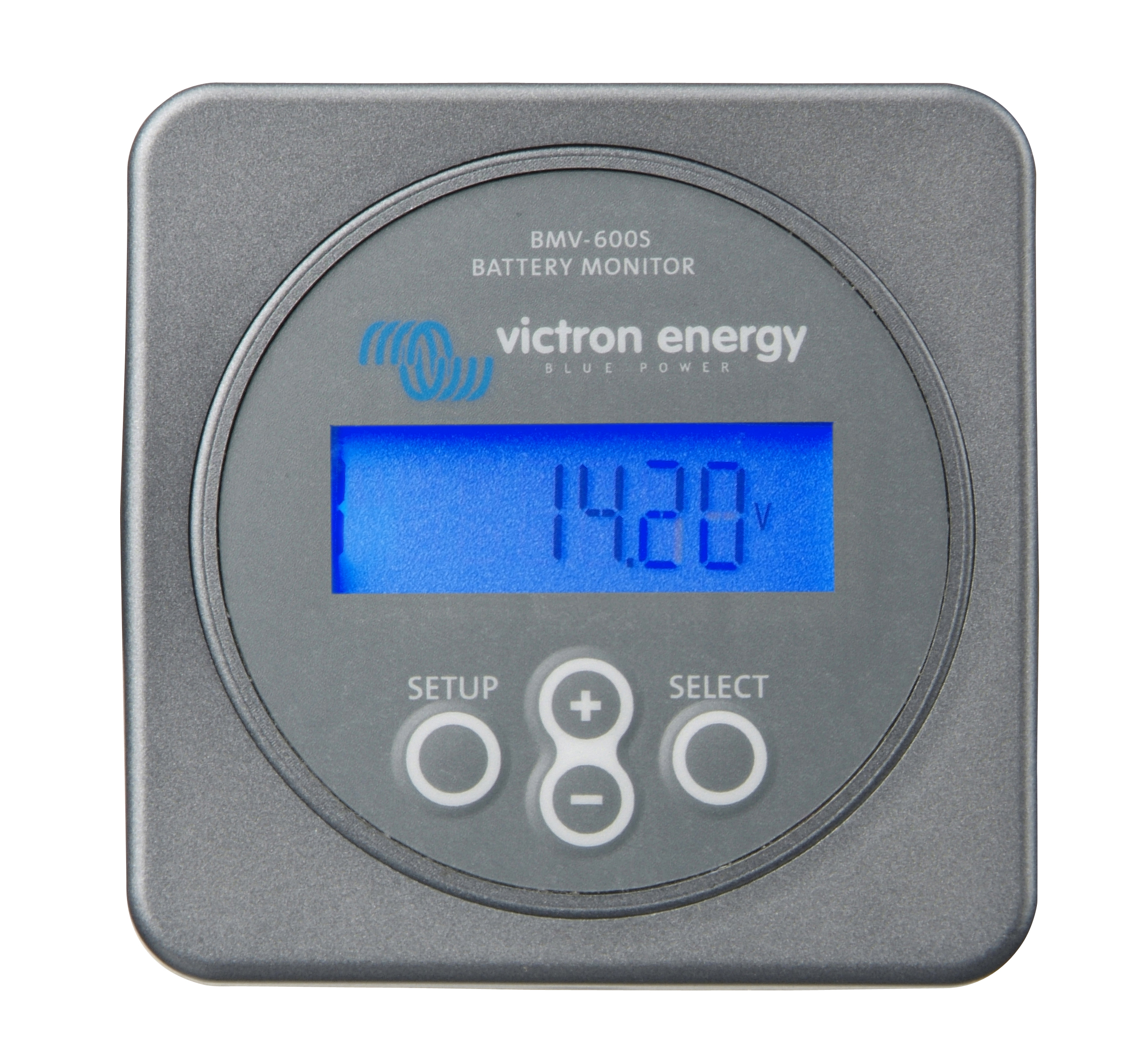

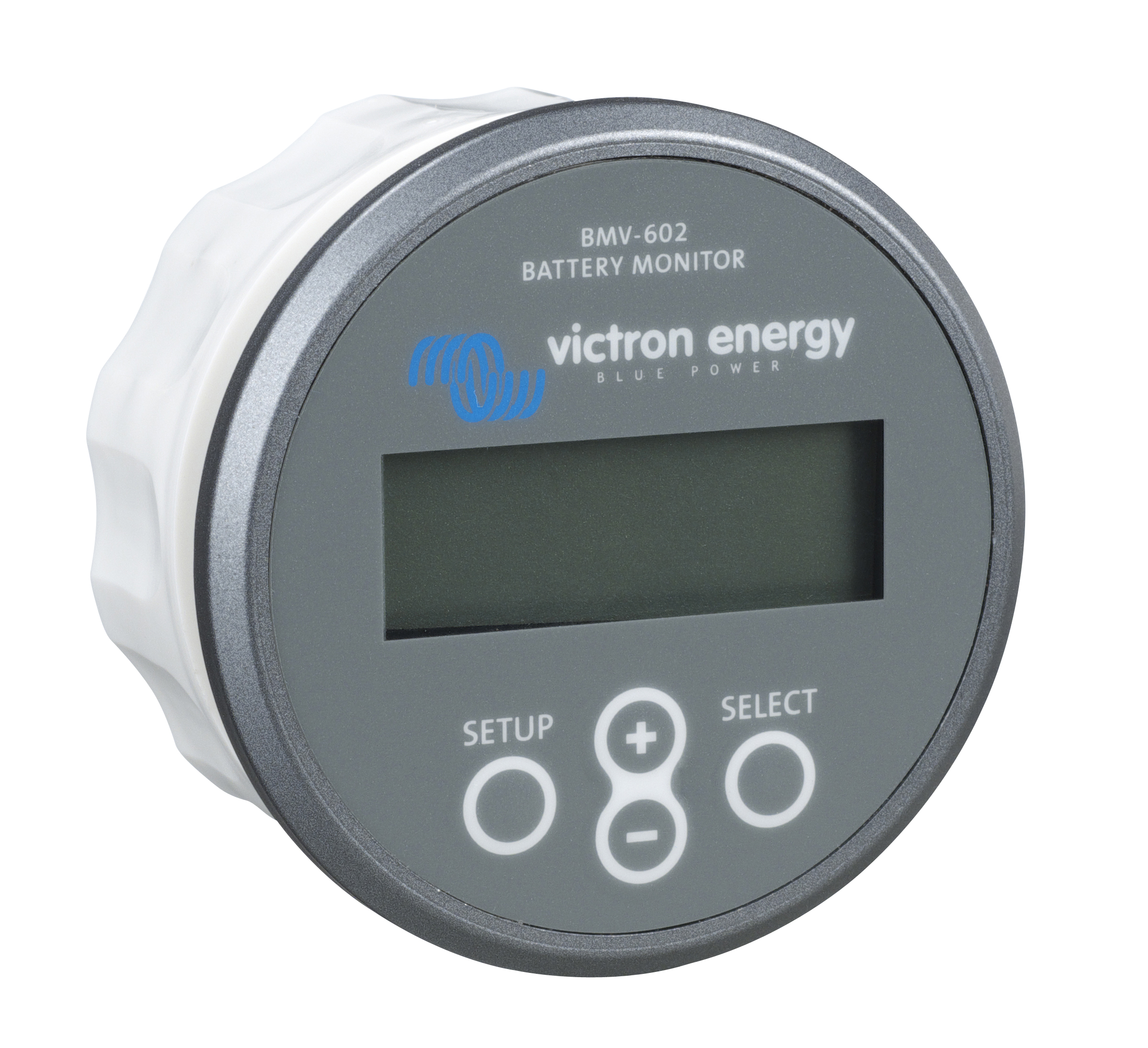

The BMV-600S and BMV-602S are high precision battery monitors. The essential function of a battery monitor is to calculate ampere-hours consumed and the state of charge of a battery. Ampere-hours consumed are calculated by integrating the current flowing in or out of the battery.

  • Highest resolution: 10mA (0,01A) with 500A shunt.
  • Lowest current consumption: 1mA.
  • Easiest to wire: the BMV-600 comes with shunt, 10 meter RJ 12 UTP cable and 2 meter battery cable with fuse. No other components needed.
  • Easiest to install: separate front bezel for square or round appearance; ring for rear mounting and screws for front mounting.

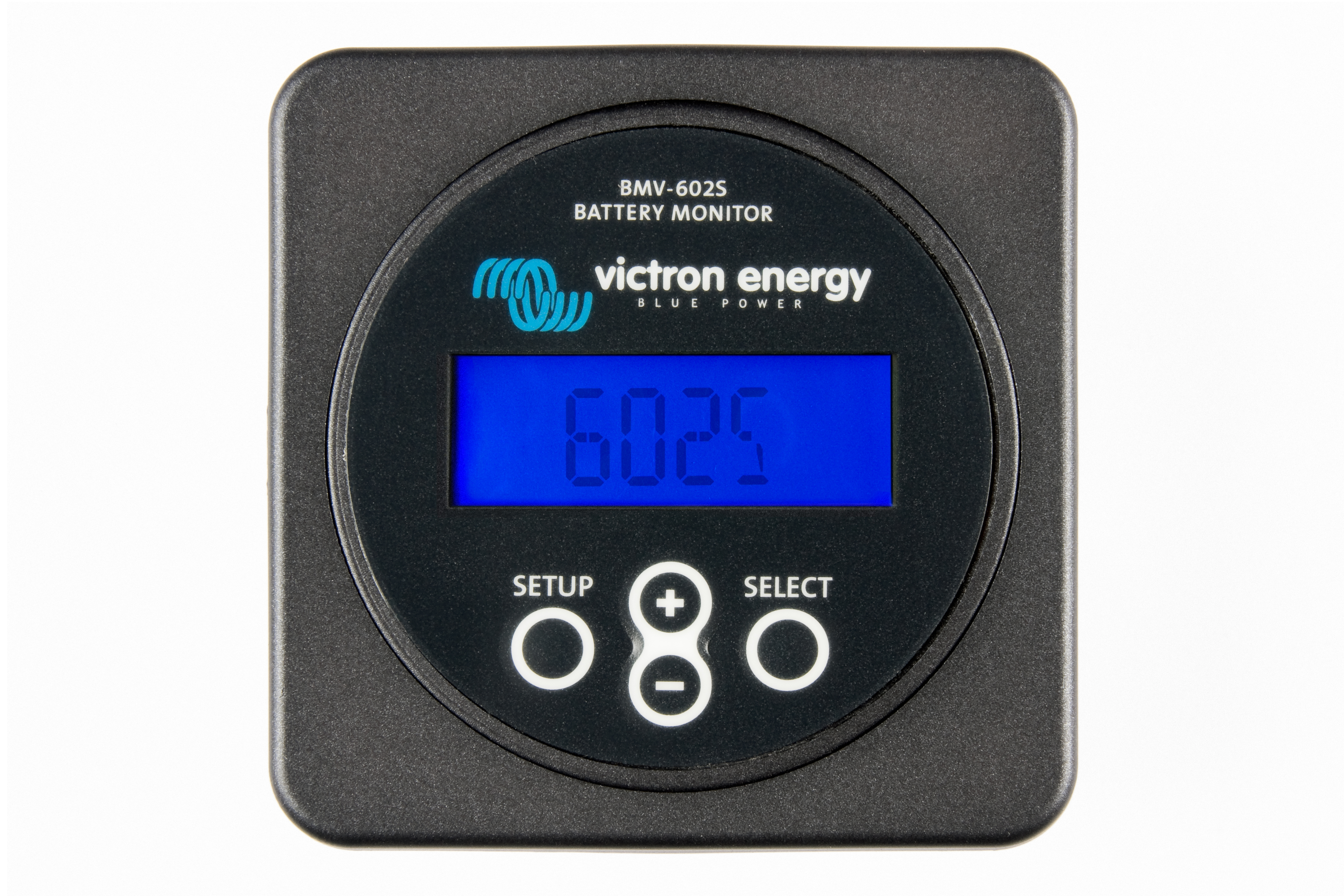

The BMV-602S has a second voltage measurement input. This input can for example be used to measure the voltage of a starter battery.


Documents


Select document type


Accessories


BMV-602 Data Link RS232 with software


The Data-Link kit consists out of a communications cable (galvanically isolated), a converter and the Data-Link software. With this kit you can connect:

• Your BMV-602 Battery Monitor to your Global Remote. This connection allows the Global Remote to log data from the BMV-602 Battery Monitor to a website through a GPRS connection. The usage of this website is free of charge.

• Your BMV-602 Battery Monitor to a computer. The free software which is supplied with the Data-Link kit enables you to download and process just about any aspect of your battery and system performance, including charge/discharge curves.


More Power

Two AC inputs with integrated transfer switch. The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source.

New Quattro. More power.

Two AC outputs

All Quattro- and several Multi inverter/chargers now have two AC outputs. In addition to the standard no-break output, an auxiliary output is available which disconnects the connected load during battery operation. It is, for example, the perfect solution for preventing an electric water heater from discharging your battery.

New Quattro. New Multiplus. Two AC ouputs.
